Longshot "shotgun" Foregrip

Priming Handle Extension Foregrip

114 replies to this topic

#26 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,646 posts

Posted 07 September 2006 - 07:07 PM

You should sell mod kits for this.

I'll think about it. I might be able to make the foregrip and then maybe include the hardware needed to bolt it onto the gun. But the customer will still have to drill the forward holes on the body shell as well as making the cuts needed on the lower front of the gun.

How many people would be interested in a kit version?

Edited by CaptainSlug, 07 September 2006 - 07:32 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#27 nerfer34

nerfer34

    Member

  • Members
  • 1,594 posts

Posted 07 September 2006 - 07:43 PM

That is amazing.

I'd be interested in a kit version!
  • 0
<!--quoteo--><div class='quotetop'>QUOTE</div><div class='quotemain'><!--quotec-->God Damn it Groove, you stole my kill.<!--QuoteEnd--></div><!--QuoteEEnd-->-OMC

#28 TED

TED

    In Brightest Prawn, in Darkest Shrimp...

  • Administrators
  • 1,328 posts

Posted 07 September 2006 - 07:44 PM

I'd buy a cut if it was a reasonable price you could have a kit with decorative pieces and one without.
  • 0
Star Wars can go fuck itself.

#29 Lancaster

Lancaster

    Member

  • Members
  • 233 posts
  • Location:Central Florida

Posted 07 September 2006 - 07:45 PM

I certainly would, I just don't have a paypal account. . .
  • 0

#30 King Of Butt Land

King Of Butt Land

    Member

  • Banned
  • 324 posts

Posted 07 September 2006 - 07:52 PM

I would most def' be interested. Best looking cleanest sexisest mod of the year Slug! Kudos to you.

-Butt
QUOTE(Puppy-žlayer @ Dec 18 2008, 04:22 AM) View Post

This contest may have some flaws, as people can simply be a deuschbag over the internet. By Lying.

A war-like setting/invitational would be better...


#31 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,646 posts

Posted 07 September 2006 - 07:59 PM

Making a kit with the decorative plates would take much more time and would add 8 more pieces to the finished product. Possible, but not preferred due to the increased labor involved. All of the kits will ship as clear plastic and it will be up to the end user to paint the seperate pieces whatever opaque color they prefer.

A kit without decorative plates would cost $15 shipped since my material cost is pretty meager and I figured out that I won't need a threaded rod for the front of the gun. But don't go placing orders just yet. I'll need to make a second foregrip to refine the design a little bit so that I can make a batch of these in less time than the first one took.

I'll place a mcmaster order and then head to Target tomorrow. I should be able to start working on a batch of kits this weekend. I'll start offering them in the Trading section once I have a few to sell.

Edited by CaptainSlug, 07 September 2006 - 08:00 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#32 sam

sam

    Member

  • Members
  • 1,059 posts
  • Location:Saint Paul
  • State:Minnesota
  • Country:United States

Posted 07 September 2006 - 09:53 PM

I'd also be interested.
Are there are problems you've had so far or for see happening in the future?
  • 0

#33 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,646 posts

Posted 07 September 2006 - 10:10 PM

Problems? Not really. As long as the washers are wide enough to support the side panels then there won't be any worries of the threaded rod warping out of shape. #8-32 threaded rod is the same OD as the stock handle bar though so it's more than rigid enough.
The foregrip handle actually lowers the stress on the bolt itself by pushing it back and forth from both sides. That also makes the gun easier to prime. I figured out a more firendly and easier to implement way to add the slide to the front of the gun that will also make it easier to take the foregrip off of the gun.

More to come tomorrow afternoon when I'll try to record and post on Youtube a video of the gun operation. And I'll spend this Saturday working on the first batch of kits. Hopefully I can start accepting orders sometime next week.

Edited by CaptainSlug, 07 September 2006 - 11:02 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#34 Groove

Groove

    Certified Badass

  • Founders
  • 1,670 posts
  • Fucks Given:0
  • Location:Irvine
  • State:California
  • Country:United States

Posted 07 September 2006 - 10:15 PM

I'd buy a kit for this in a heartbeat.



-Groove
  • 0

"Too close for missiles, I'm switchin' to guns"


#35 echo104b

echo104b

    Member

  • Members
  • 73 posts
  • Location:In my Laboratory

Posted 08 September 2006 - 09:58 AM

Hell, I'd buy a kit for this. This is absolutely 100% Badass

$15? I'll take 2! And i have paypal!

Edited by echo104b, 08 September 2006 - 10:02 AM.

  • 0
"I Am Become Death. Destroyer of Worlds"
- J. Robert Oppenheimer (Upon the first successfull detonation of an atomic bomb)

#36 nerfer34

nerfer34

    Member

  • Members
  • 1,594 posts

Posted 08 September 2006 - 02:02 PM

I'll defiilty buy a kit. How much work do I have to do when I recieve it? Is it hard? Can you list in steps what to do?
  • 0
<!--quoteo--><div class='quotetop'>QUOTE</div><div class='quotemain'><!--quotec-->God Damn it Groove, you stole my kill.<!--QuoteEnd--></div><!--QuoteEEnd-->-OMC

#37 baghead

baghead

    Cheetos

  • Members
  • 1,362 posts
  • Location:SoCal
  • State:California
  • Country:United States
  • Mad Artisan Labs on Youtube

Posted 08 September 2006 - 02:31 PM

Doesn't that just make you want to yell sex?

Wowsies, uh... I'm interested in a kit too.
  • 0

Don't call it a comeback, I never left.


#38 deathwolf

deathwolf

    Member

  • Members
  • 120 posts
  • Location:Winfield
  • State:Illinois
  • Country:United States

Posted 08 September 2006 - 03:18 PM

I'd definetly buy a kit!

Nice job on it, too.
  • 0
BROOD XIII

#39 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,646 posts

Posted 08 September 2006 - 05:06 PM

I'll defiilty buy a kit. How much work do I have to do when I recieve it? Is it hard? Can you list in steps what to do?

Step 1: Open body shell of the the gun and remove the bipod legs.
Step 2: Cut the body shell halves as shown in the photo on this document. http://www.captainsl.../ls-shotgun.doc
Step 3: Put the gun shell halves together temporarily (don't tighten any screws, just use some masking tape to hold the halves together for the next two steps)
Step 4: Feed the threaded rod through the bolts sled
Step 5: Slide the foregrip side pieces onto both ends of the threaded rod. Now use a permanent marker to mark the spots on the front of the gun where you will need to drill the holes for the slides.
Step 6: With the gun still taped together drill the two holes (3/16th" diameter)
Step 7: Untape the gun and open it to clear out and plastic shavings that resulted from the drilling. Now thread the short bolts outwards through the holes you drilled and affix to the shell with a hex nut.
Step 8: Screw the two body shell halves back together.
Step 9: Install the foregrip on the gun.

I am starting tonight and will keep a photographic log of the above process that will illustrate every step. If you have ANY type of cutting tool (rotary tool, hacksaw, jigsaw, scrollsaw...) and a powerdrill you will be able to install the kit.

Edited by CaptainSlug, 08 September 2006 - 05:08 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#40 Ryan201821

Ryan201821

    Prince Edward

  • Contributors
  • 1,892 posts
  • Location:Lombard
  • State:Illinois
  • Country:United States

Posted 08 September 2006 - 05:31 PM

Captain, Very nice, and original. This makes the Longshot absolutly perfect with this.

I'd be interested in a kit myself. I think you got yourself a business there.
  • 0

#41 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,646 posts

Posted 08 September 2006 - 09:55 PM

If any of you want to make your gun compatible with the kit in advance you will need to trim the body shell halves as shown below.
Posted Image
Just to see if it was possible I made the cuts using a simple hand saw from a mitre box and with only a little bit of sanding that's how it ends up.

Edited by CaptainSlug, 08 September 2006 - 10:21 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#42 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,646 posts

Posted 08 September 2006 - 11:44 PM

I finally got the video up. The darts are coming out of the gun too fast for the camera too see. In fact the first dart bounced off the wall and came back at me.
Youtube has been acting weird so I just uploaded it to my webspace.
http://www.captainsl...om/nerf/lsg.avi (DivX5 435kb)

Edited by CaptainSlug, 09 September 2006 - 03:58 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#43 Lancaster

Lancaster

    Member

  • Members
  • 233 posts
  • Location:Central Florida

Posted 09 September 2006 - 03:39 PM

Aw, crap. I can't watch it. Are you using some weird software? Quicktime got all pissed when I tried to load the vid.
  • 0

#44 elf avec gun

elf avec gun

    Member

  • Members
  • 490 posts
  • Location:Minnesota

Posted 09 September 2006 - 03:46 PM

I'll take one via paypal. It looks great, and then some!
  • 0
"It's hard to imagine a more specific subset of nerd than our community. One day we shall be studied by a single sociologist whom the other sociologists will mock incessantly." ~VACC


Got Nerd?

#45 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,646 posts

Posted 09 September 2006 - 03:59 PM

Aw, crap. I can't watch it. Are you using some weird software? Quicktime got all pissed when I tried to load the vid.

The video is compressed in DivX 5. You will need either the codec installed, or just open it remotely using VideoLan's VLC player.

Alternatively here's the same video on Youtube:

I'll take one via paypal. It looks great, and then some!

I now have over 10 people interested in order but I do not want to accept orders until I have actual kits produced to sell. When I do have kits to offer I will start a thread in the Trading section then post a link to it from this thread.

Edited by CaptainSlug, 09 September 2006 - 04:03 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#46 Lancaster

Lancaster

    Member

  • Members
  • 233 posts
  • Location:Central Florida

Posted 09 September 2006 - 04:07 PM

I can't get over how awesome your paintjob is. Oh, and is the audio synched on the youtube video? Either that or you can cock faster then the speed of sound.
  • 0

#47 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,646 posts

Posted 09 September 2006 - 04:20 PM

I can't get over how awesome your paintjob is. Oh, and is the audio synched on the youtube video? Either that or you can cock faster then the speed of sound.

The audio isn't synced correctly. Happens everytime I convert an .mov to an .avi
  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#48 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,646 posts

Posted 09 September 2006 - 10:58 PM

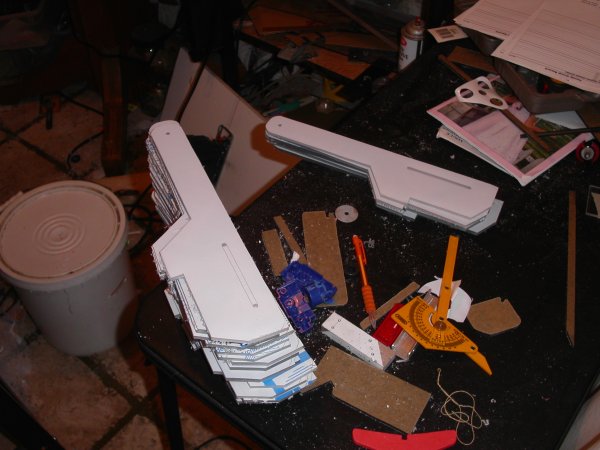

Posted Image

Edited by CaptainSlug, 11 September 2006 - 07:17 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#49 King Of Butt Land

King Of Butt Land

    Member

  • Banned
  • 324 posts

Posted 10 September 2006 - 09:46 AM

Duff man says "Ohhhhhhhhhhhhh yeaaaaaaaaahhhhh", And so do I. Awesomeness Captainslug. I'll most definatly be buying one of your kits.

-Butt

Edited by King Of Butt Land, 10 September 2006 - 09:46 AM.

QUOTE(Puppy-žlayer @ Dec 18 2008, 04:22 AM) View Post

This contest may have some flaws, as people can simply be a deuschbag over the internet. By Lying.

A war-like setting/invitational would be better...


#50 murakumo32

murakumo32

    Member

  • Members
  • 419 posts

Posted 10 September 2006 - 09:54 AM

...you can cock faster then the speed of sound.


Dude, if you could actually do that, I'd be suprised if it didn't fall off. ;) :P :wacko:
  • 0
QUOTE
Nerfing, now fortified with vitamin C!
-or-
100% Nerf, for 100% pwnage.

QUOTE

Nerf is a neutral weapons dealer. Anyone coughing up the dough can get armed.

QUOTE

and they're made of Foam... which makes them very Nerfy...
