Longshot "shotgun" Foregrip

Priming Handle Extension Foregrip

114 replies to this topic

#76 General Cole

General Cole

    Member

  • Banned
  • 868 posts
  • Location:Las Cruces New Mexico

Posted 19 September 2006 - 07:26 PM

I want him to try to cock the LS with a BBB +LS spring with a strap.
We should stop calling out/making fun of/pissing GC off. He's actually contributed and is available for trade. He's a better than average member no doubt. Got your back Cole.
-Nerfer34

You know what... I know it's kinda late... but Props Cole.
-Baghead

#77 elf avec gun

elf avec gun

    Member

  • Members
  • 490 posts
  • Location:Minnesota

Posted 19 September 2006 - 07:27 PM

Elf, I think you can. Just mount it a bit lower than you usually would. Then put another longscrew in until it hits the pumping handle of the integreated gun.


Im not sure what you mean. Could you explain further: mount what lower? the frontgun? or the slug's pump handle? And also the priming distance for the front gun and the actual longshot isnt the same. And ontop of all that the cloths hanger thing used to fire the Ls and the front gun at the sametime wouldnt work. A better thing to do if you want an extra shot wold be to take some at2k innerds and put it in that extra spacewhere the bi-pod used to be. It could be like a grenade launcher or something! Load it up with some shotgun stephans and you've got yourself a great close range/ spreadshot attachment for you Ls!
  • 0
"It's hard to imagine a more specific subset of nerd than our community. One day we shall be studied by a single sociologist whom the other sociologists will mock incessantly." ~VACC


Got Nerd?

#78 General Cole

General Cole

    Member

  • Banned
  • 868 posts
  • Location:Las Cruces New Mexico

Posted 19 September 2006 - 07:33 PM

Just put the cocking handle on over the integrated front gun.
We should stop calling out/making fun of/pissing GC off. He's actually contributed and is available for trade. He's a better than average member no doubt. Got your back Cole.
-Nerfer34

You know what... I know it's kinda late... but Props Cole.
-Baghead

#79 elf avec gun

elf avec gun

    Member

  • Members
  • 490 posts
  • Location:Minnesota

Posted 19 September 2006 - 09:22 PM

... also the priming distance for the front gun and the actual longshot isnt the same....


That ^ = a major speedbump in your plan I would think. And you wouldnt be able to fire the two guns seperatly anymore.
  • 0
"It's hard to imagine a more specific subset of nerd than our community. One day we shall be studied by a single sociologist whom the other sociologists will mock incessantly." ~VACC


Got Nerd?

#80 General Cole

General Cole

    Member

  • Banned
  • 868 posts
  • Location:Las Cruces New Mexico

Posted 19 September 2006 - 09:45 PM

That would be a problem wouldn't it, well, I guess that you could have a two stage trigger.
We should stop calling out/making fun of/pissing GC off. He's actually contributed and is available for trade. He's a better than average member no doubt. Got your back Cole.
-Nerfer34

You know what... I know it's kinda late... but Props Cole.
-Baghead

#81 elf avec gun

elf avec gun

    Member

  • Members
  • 490 posts
  • Location:Minnesota

Posted 19 September 2006 - 10:47 PM

I still just think that having an at2k hooked on there would be better. Other than that it wouldnt look like the rest of the gun, but that can be fixed. And one of the cool things about an at2k integration is that the trigger can be put almost anywhere. The same goes for the pump (aslong as you have some tubing). Honestly would you rather have 1 extra 30' shot, or a multiple dart spray that can go almost as far?
This would be a backup option if you are being rushed. Leave the accurate longrange shots to the Ls and use this for closerange.

:D ...great, now I gotta go get an at2k to use for this... ^_^
  • 0
"It's hard to imagine a more specific subset of nerd than our community. One day we shall be studied by a single sociologist whom the other sociologists will mock incessantly." ~VACC


Got Nerd?

#82 General Cole

General Cole

    Member

  • Banned
  • 868 posts
  • Location:Las Cruces New Mexico

Posted 19 September 2006 - 11:57 PM

Me too, my AT2K's check valve is blown, I think. I just need to replace the pump a monstrosity of a pump.
We should stop calling out/making fun of/pissing GC off. He's actually contributed and is available for trade. He's a better than average member no doubt. Got your back Cole.
-Nerfer34

You know what... I know it's kinda late... but Props Cole.
-Baghead

#83 elf avec gun

elf avec gun

    Member

  • Members
  • 490 posts
  • Location:Minnesota

Posted 19 September 2006 - 11:59 PM

I love how we just compleatly hijacked this thread! :P
  • 0
"It's hard to imagine a more specific subset of nerd than our community. One day we shall be studied by a single sociologist whom the other sociologists will mock incessantly." ~VACC


Got Nerd?

#84 General Cole

General Cole

    Member

  • Banned
  • 868 posts
  • Location:Las Cruces New Mexico

Posted 20 September 2006 - 07:40 PM

I don't. Hey slug would it be possible to mount a laser in the site and hook up the wiring to the main gun? What do you think about integrating the secondary gun into the LS along with the pump?
We should stop calling out/making fun of/pissing GC off. He's actually contributed and is available for trade. He's a better than average member no doubt. Got your back Cole.
-Nerfer34

You know what... I know it's kinda late... but Props Cole.
-Baghead

#85 elf avec gun

elf avec gun

    Member

  • Members
  • 490 posts
  • Location:Minnesota

Posted 20 September 2006 - 08:14 PM

If you want a laser on the gun, I would suggest that you carfully drill a hole in the front part of one of Captain slug's shot gun foregrips And you would even have room for the batteries in the grip. And logicaly yes one could easly mount something as small as the average laser pointer inside the Ls sight.
  • 0
"It's hard to imagine a more specific subset of nerd than our community. One day we shall be studied by a single sociologist whom the other sociologists will mock incessantly." ~VACC


Got Nerd?

#86 General Cole

General Cole

    Member

  • Banned
  • 868 posts
  • Location:Las Cruces New Mexico

Posted 20 September 2006 - 08:17 PM

I didn't think that it would be big enough hold the batteries, but if it works, it works.
We should stop calling out/making fun of/pissing GC off. He's actually contributed and is available for trade. He's a better than average member no doubt. Got your back Cole.
-Nerfer34

You know what... I know it's kinda late... but Props Cole.
-Baghead

#87 elf avec gun

elf avec gun

    Member

  • Members
  • 490 posts
  • Location:Minnesota

Posted 20 September 2006 - 08:19 PM

I dont see how it wouldnt be able to hold 1 laser pointer (most have their batteries inside)
  • 0
"It's hard to imagine a more specific subset of nerd than our community. One day we shall be studied by a single sociologist whom the other sociologists will mock incessantly." ~VACC


Got Nerd?

#88 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,498 posts

Posted 20 September 2006 - 08:28 PM

1. Hey slug would it be possible to mount a laser in the site and hook up the wiring to the main gun?
2. What do you think about integrating the secondary gun into the LS along with the pump?

1. Yes
2. The two pump handles over-lapping eachother is the main issue I can see. You might have to make a different kind of handle for priming the integrated side-arm. I'm not sure and I don't plan to bother because I'm more interested in making a higher capacity magazine for the main gun than I am in cramming two guns together.
  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#89 General Cole

General Cole

    Member

  • Banned
  • 868 posts
  • Location:Las Cruces New Mexico

Posted 20 September 2006 - 08:28 PM

I would have put in another battery and a button so that it can be on for a very long time.
We should stop calling out/making fun of/pissing GC off. He's actually contributed and is available for trade. He's a better than average member no doubt. Got your back Cole.
-Nerfer34

You know what... I know it's kinda late... but Props Cole.
-Baghead

#90 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,498 posts

Posted 26 December 2006 - 10:26 PM

The Foregrip Revision 3 prototype is finished. I had to change how the half-tube grip attaches and the end result is that the new kit WILL NOT INVOLVE the use of solvents in any way, making the kit easier for me to construct and will increase consistency and durability.
Posted Image
Posted Image
Hardware count is
+ One 4-Inch Length #8-32 threaded rod
+ Two #8 1/4" spacers
+ Four #8 hex nuts
+ Twelve #6-32 screws

Tools required
+ Tablesaw
+ Scrollsaw or bandsaw
+ Drillpress
+ #6-32 Tap

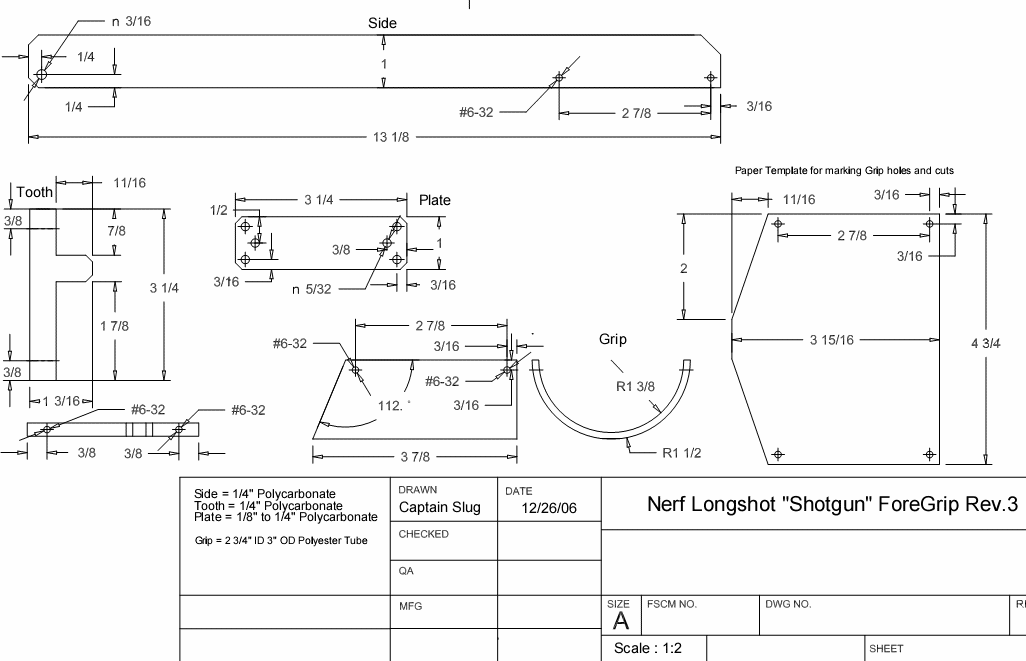

Mechanical Drawings
http://www.captainsl...rf/lsgrip-3.gif
I'M NOT SELLING THESE ANYMORE, SO STOP ASKING.

Edited by CaptainSlug, 07 April 2009 - 06:12 AM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#91 Syviren

Syviren

    Member

  • Members
  • 1 posts

Posted 28 January 2007 - 11:23 PM

how many of those are available?
me and a friend want to buy one
  • 0

#92 Retiate

Retiate

    Member

  • Members
  • 778 posts
  • Location:Gig Harbor, Washington
  • State:Washington
  • Country:United States

Posted 28 January 2007 - 11:27 PM

I too am interested in one. Though you'll have to make a whole new batch, won't you?
  • 0

#93 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,498 posts

Posted 29 January 2007 - 07:24 PM

I'll have another batch of 10 kits ready on Wednesday.
  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#94 themessiahpsg1

themessiahpsg1

    Member

  • Members
  • 253 posts
  • Location:St. Paul, MN

Posted 09 April 2007 - 07:35 PM

I made one of those with two planks of wood, a tin can, some nails and duct tape.
it works GROOVY.
  • 0
OIC of 34th Light Combat Battalion, Talk to me about enlistment.

#95 Commonly Hunted

Commonly Hunted

    Member

  • Banned
  • 254 posts

Posted 09 April 2007 - 08:30 PM

Wow, the tin can idea is actually a good one. Perfect fit to the hand and the ridges provide grip. Nice.
QUOTE(Pineapple)

Next one who wants to be Michael Jackson, and save the world, gets a trip to Neverland.

Buy Boltsniper's guns!
Borrowed by FoamReaper of Boltsniper Forums.

#96 badger

badger

    The Walking Nerf-wiki

  • Members
  • 1,171 posts
  • Location:North Plainfield, NJ

Posted 09 April 2007 - 09:33 PM

I'll have another batch of 10 kits ready on Wednesday.


I will have to check my account, but I'm pretty sure I can send you a payment either tonight or tomorrow. Any chance of getting it to me before Saturday? Let me know.
  • 0
As Carbon once said,

"The moment you can no longer see the fun in running around like a little child is the moment you begin to die."

Roses are FF0000
Violets are 0000FF

ALL YOUR BASE ARE BELONG TO US

#97 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,498 posts

Posted 09 April 2007 - 11:29 PM

I will have to check my account, but I'm pretty sure I can send you a payment either tonight or tomorrow. Any chance of getting it to me before Saturday? Let me know.

I'm not sure. It's been really difficult to find time to devote to machining the kits.

Edited by CaptainSlug, 10 April 2007 - 05:22 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#98 themessiahpsg1

themessiahpsg1

    Member

  • Members
  • 253 posts
  • Location:St. Paul, MN

Posted 10 April 2007 - 05:03 PM

Wow, the tin can idea is actually a good one. Perfect fit to the hand and the ridges provide grip. Nice.


finally, a compliment. thanks bro.
  • 0
OIC of 34th Light Combat Battalion, Talk to me about enlistment.

#99 Fireshot

Fireshot

    Member

  • Members
  • 134 posts
  • Location:Amherst, MA
  • State:Massachusetts
  • Country:United States

Posted 17 April 2007 - 07:34 PM

CS, will you be bringing kits to DCNO?
  • 0

#100 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,498 posts

Posted 17 April 2007 - 10:06 PM

CS, will you be bringing kits to DCNO?

Yes. Kits purchased in-person are $10 (since I don't have to ship them).
  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?
