Longshot "shotgun" Foregrip

Priming Handle Extension Foregrip

114 replies to this topic

#51 General Cole

General Cole

    Member

  • Banned
  • 868 posts
  • Location:Las Cruces New Mexico

Posted 10 September 2006 - 06:01 PM

I am most definetly buying one. Do you think it would be possible to make the handle pump lower, I was thinking about putting a laser site in that little extrusion where the bi-pod was.
We should stop calling out/making fun of/pissing GC off. He's actually contributed and is available for trade. He's a better than average member no doubt. Got your back Cole.
-Nerfer34

You know what... I know it's kinda late... but Props Cole.
-Baghead

#52 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,604 posts

Posted 10 September 2006 - 06:56 PM

Have to wait for the solvent to cure then I can sand them. Tomorrow all of the bolts, hex nuts, and threaded rods will arrive so I can start packaging everything.
Posted Image

I am most definetly buying one. Do you think it would be possible to make the handle pump lower, I was thinking about putting a laser site in that little extrusion where the bi-pod was.

I could make the front handle adjustable if you want. But it might be easier if you simply mount the laser site on the foregrip handle.

Edited by CaptainSlug, 11 September 2006 - 07:17 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#53 Snazzy Q

Snazzy Q

    Member

  • Members
  • 37 posts
  • Location:Marietta, Georgia

Posted 10 September 2006 - 07:05 PM

Amazing! Where do you buy your plastic from? You must get a pretty good deal, or else you're just really generous. $15 for a kit is awesome.
  • 0

#54 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,604 posts

Posted 10 September 2006 - 07:07 PM

I buy my polycarbonate as scrap (offcuts) from Piedmont Plastics in Maryland (they have 2 locations in Georgia). Most plastics shops sell offcuts of whatever plastics they work with. I can get 2'x4' sheets of 3/16" polycarbonate for around $7, as opposed to paying $49.
I just take a trip to the shop once every 6 months to replenish my stockpile.

So in all honesty the material cost for each kit is close to $3. It only took me 2 afternoons to make 15 identical units using the CAD templates and my wide assortment of tools.

Edited by CaptainSlug, 10 September 2006 - 07:18 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#55 echo104b

echo104b

    Member

  • Members
  • 73 posts
  • Location:In my Laboratory

Posted 10 September 2006 - 07:10 PM

I buy my polycarbonate as scrap (offcuts) from a company in Maryland called Piedmont Plastics. Most plastics shops sell offcuts of whatever plastics they work with. I can get 2'x4' sheets of 3/16" polycarbonate for around $7, as opposed to paying $49.
I just take a trip to the shop once every 6 months to replenish my stockpile.

So in all honesty the material cost for each kit is close to $3.



You get your stuff in MD? may i ask where this shop is? i may live near it. and if so, it may save on shipping costs for my kit.
  • 0
"I Am Become Death. Destroyer of Worlds"
- J. Robert Oppenheimer (Upon the first successfull detonation of an atomic bomb)

#56 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,604 posts

Posted 10 September 2006 - 07:20 PM

Their Maryland shop is located in Beltsville.
Piedmont Plastics
9000 Virginia Manor Rd.
Suite 250
Beltsville, MD 20705
Toll Free: 800-638-6651
Phone: 301-881-7900
Fax: 301-881-0419

http://www.piedmontp...m/locations.asp

However, I live a ways away in Sterling, VA
  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#57 Ronster

Ronster

    Member

  • Members
  • 528 posts
  • Location:The Alamo

Posted 10 September 2006 - 08:25 PM

So in all honesty the material cost for each kit is close to $3. It only took me 2 afternoons to make 15 identical units using the CAD templates and my wide assortment of tools.


What different tools did you use?
  • 0
-I Nerf, there for I am.

QUOTE(baghead @ Oct 25 2006, 09:55 AM) View Post
Ronster reminded me that I should have warned you all Prepare your Bladder for Imminent Release!!!!

#58 General Cole

General Cole

    Member

  • Banned
  • 868 posts
  • Location:Las Cruces New Mexico

Posted 10 September 2006 - 08:49 PM

I love this! Great idea Slug! I would like to start a PM converstaion with you about the CSHG, I need to make one, and soon!
We should stop calling out/making fun of/pissing GC off. He's actually contributed and is available for trade. He's a better than average member no doubt. Got your back Cole.
-Nerfer34

You know what... I know it's kinda late... but Props Cole.
-Baghead

#59 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,604 posts

Posted 10 September 2006 - 09:42 PM

I should be finished with making the kits some time tomorrow. I only have one more piece to make and they'll be complete.

So in all honesty the material cost for each kit is close to $3. It only took me 2 afternoons to make 15 identical units using the CAD templates and my wide assortment of tools.


What different tools did you use?

Just to make these I've used
+ Tablesaw
+ Drillpress
+ Scrollsaw
+ X-acto knives
+ 6" Vice
+ IPS Weld-on #3
+ #6-32 tapping bit
+ Power Drill
+ Sanding Wheel
+ Band Saw

For other projects I also use a manual 3-axis knee mill and a machine lathe. And I have a bunch of specifically useful hand tools that would take forever to list here.

Edited by CaptainSlug, 10 September 2006 - 09:56 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#60 echo104b

echo104b

    Member

  • Members
  • 73 posts
  • Location:In my Laboratory

Posted 10 September 2006 - 11:35 PM

Their Maryland shop is located in Beltsville.
Piedmont Plastics
9000 Virginia Manor Rd.
Suite 250
Beltsville, MD 20705
Toll Free: 800-638-6651
Phone: 301-881-7900
Fax: 301-881-0419

http://www.piedmontp...m/locations.asp

However, I live a ways away in Sterling, VA


I see. I live in Frederick, MD so it's about an hour drive for me without traffic...

God I hate the Beltway.
  • 0
"I Am Become Death. Destroyer of Worlds"
- J. Robert Oppenheimer (Upon the first successfull detonation of an atomic bomb)

#61 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,604 posts

Posted 11 September 2006 - 07:25 PM

The kits are done and now on sale in the Trading section.
http://nerfhaven.com...?showtopic=7275

Here are the instructions for installing them.

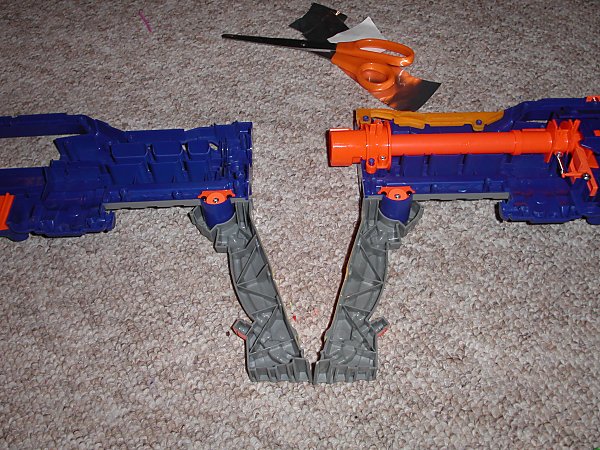

Step 1: Open body shell of the the gun and remove the bipod legs.

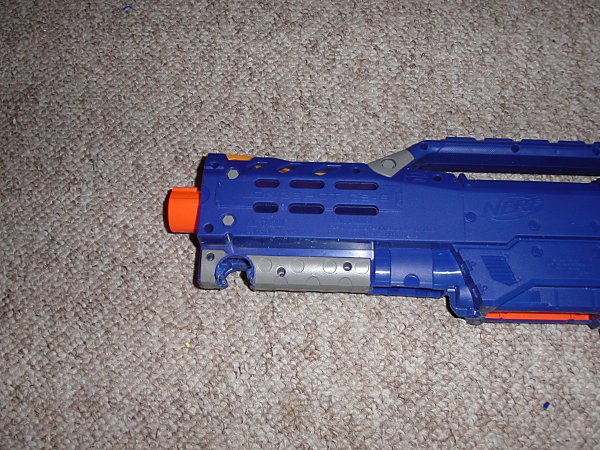

Step 2: Cut the body shell halves as shown
Step 3: Put the gun shell halves together temporarily (don't tighten any screws, just use some masking tape to hold the halves together for the next two steps)

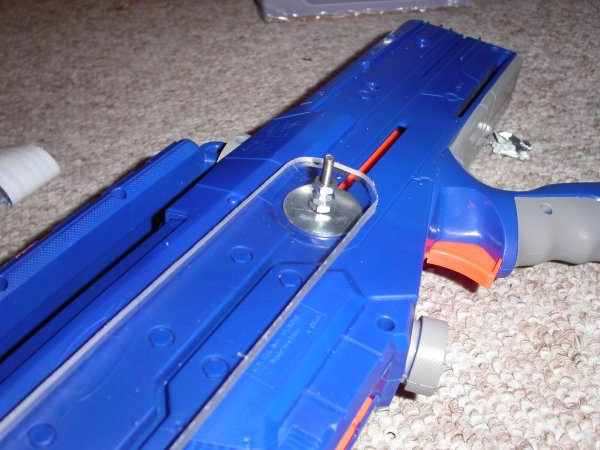

Step 4: Feed the threaded rod through the bolts sled

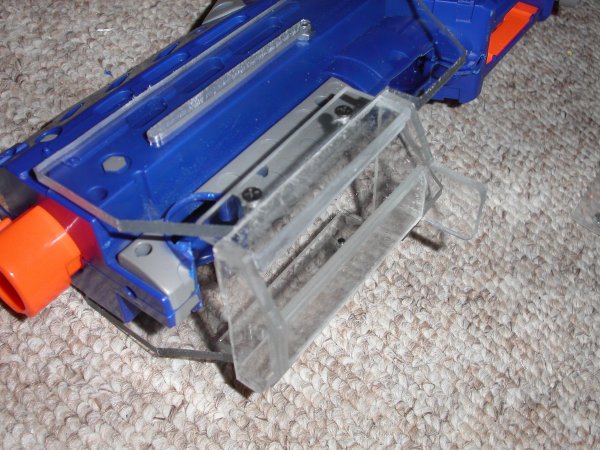

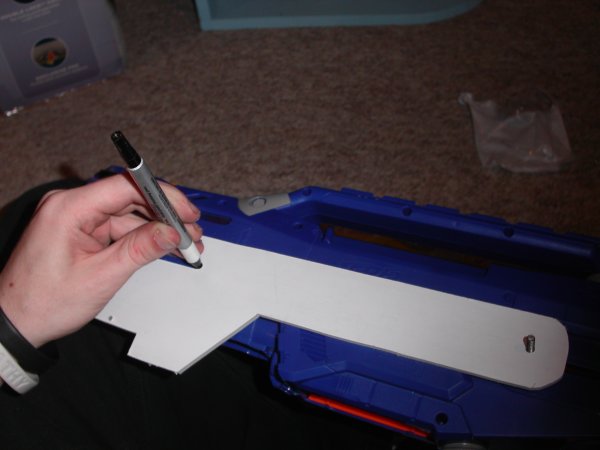

Step 5: Slide the foregrip side pieces onto both ends of the threaded rod. Now use a permanent marker to mark the spots on the front of the gun where you will need to drill the holes for the slides.

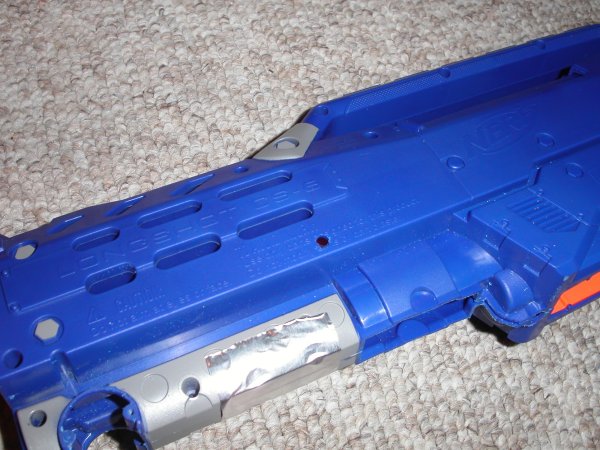

Step 6: With the gun still taped together drill the two holes (3/16th" diameter)
Step 7: Untape the gun and open it to clear out and plastic shavings that resulted from the drilling. Now thread the short bolts outwards through the holes you drilled and affix to the shell halves as tightly as possible using a hex nut.
Step 8: Screw the two body shell halves back together.

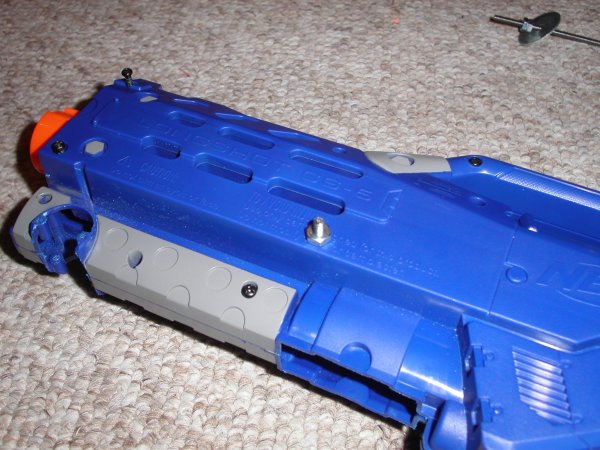

Step 9: Install threaded rod and side panels as shown.
Step 10: Attach the foregrip handle.
Step 11: Finished!
Posted Image

You may want to trim the threaded rod down to 3-1/2 inches but I didn't want to spend forever doing that to 15 of them. Nobody sells them (or bolts) in 3-1/2 inch lengths.

Edited by CaptainSlug, 13 September 2006 - 01:16 AM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#62 Anima

Anima

    Member

  • Members
  • 92 posts
  • Location:Dayton, OH USA

Posted 14 September 2006 - 05:42 PM

Very, very nice work Captain. B) Not only is it a practical mod, you made it look professional and clean. Heck, it improved the overall look of the LS. I may have to try this myself... Thank you too for the writeup, plans, etc. This is easily the best thread I've read in months.
  • 0
On the web, your language skills are your appearance and odor. Don't be a smelly elephant man.

#63 General Cole

General Cole

    Member

  • Banned
  • 868 posts
  • Location:Las Cruces New Mexico

Posted 14 September 2006 - 05:44 PM

Hey Anima, you know that he is selling them now.
We should stop calling out/making fun of/pissing GC off. He's actually contributed and is available for trade. He's a better than average member no doubt. Got your back Cole.
-Nerfer34

You know what... I know it's kinda late... but Props Cole.
-Baghead

#64 Anima

Anima

    Member

  • Members
  • 92 posts
  • Location:Dayton, OH USA

Posted 15 September 2006 - 10:28 AM

Hey Anima, you know that he is selling them now.


Yes, I know, having actually bothered to read the entire thread. ;K) I'm more of a do-it-yourself guy, to a point. With the nice resources Captain's made available, it should be a cinch. Just have to be careful when cutting the Lexan, that's all. Last time I worked with the stuff, I learned that high-speed saw blades melt the Lexan behind it, 'magically' sealing your cut. Blah!
  • 0
On the web, your language skills are your appearance and odor. Don't be a smelly elephant man.

#65 General Cole

General Cole

    Member

  • Banned
  • 868 posts
  • Location:Las Cruces New Mexico

Posted 15 September 2006 - 03:38 PM

I can see that. Sorry, I though you might have just skimmed the thread B) Sorry, It looks simple, but I don't even have brass in my town so I had to resort to buying one.
We should stop calling out/making fun of/pissing GC off. He's actually contributed and is available for trade. He's a better than average member no doubt. Got your back Cole.
-Nerfer34

You know what... I know it's kinda late... but Props Cole.
-Baghead

#66 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,604 posts

Posted 15 September 2006 - 05:21 PM

Last time I worked with the stuff, I learned that high-speed saw blades melt the Lexan behind it, 'magically' sealing your cut. Blah!

Yeah. Plastics are not cooperative with rotary cutting tools unless you buy very specific blades. Tablesaws in particular will melt sheets or throw shrapnel around if you don't use a plywood/OBS blade.
The best tools you cen get for cutting plastics are scrollsaw or jigsaws, and both are what I recommend for this project. Scrollsaws are more versatile and easier to control, but they do cost a bit more than your average jigsaw.
Provided you use the right tools, blades, and cutting speeds, polycarbonate is an extremely pleasant and forgiving material to machine. It has the rigidity and durability of aluminum while being even easier to cut and thread.

If any of you need to find sources for plastics the best place to look is your local phonebook. Look for sign making shops or plastics shops. Plastics shops will carry a much wider variety of plastics because they tend to mostly cater to display case fabrication for retail stores. Simply call around until you can find a few that work with polycarbonate AND sell their offcuts. Buying offcuts will allow you to buy whatever you need for 60%-80% off of the total price. There are no other plastics that I would recommend for custom applications because anything other than polycarbonate will be even pickier about how you cut it.
If you have no local resources http://www.mcmaster.com is an indispensible source for nearly everything.

Edited by CaptainSlug, 15 September 2006 - 05:27 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#67 General Cole

General Cole

    Member

  • Banned
  • 868 posts
  • Location:Las Cruces New Mexico

Posted 15 September 2006 - 06:12 PM

Yes, now that I have a supply for plastics my work on the CSHG can begin... Muhahahahaha
We should stop calling out/making fun of/pissing GC off. He's actually contributed and is available for trade. He's a better than average member no doubt. Got your back Cole.
-Nerfer34

You know what... I know it's kinda late... but Props Cole.
-Baghead

#68 pat 1st Lt

pat 1st Lt

    Member

  • Members
  • 236 posts

Posted 18 September 2006 - 08:52 PM

I just remembered to ask you! I thought of this when I first read your topic, but I wasn't able to post it then, so I'll ask now:

Are those two screws acting as hardpoints well enough? That is to say, are they holding up well? I'd tend to think that they wouldn't be a very secure way to guide the slide. Have they been coming loose at all? I'd tend to think that just screwing them in wouldn't be that secure if you really cocked the slide hard, over and over.

I would've done the same thing you did to the bolt sled for the foregrip part: put a rod through the holes drilled in the body, and secure it with some washers and some hex nuts. I think that'd hold better, but maybe that'd either have too much friction, or be too loose, depending on how tight you screwed it in.


Overall, I love the mod. Great use of polycarbonate. We never see enough of it used around here. It's a great material to work with. My only qualms are that I have to go out of my way to get it at a reasonable price. I'm sure that you get even better deals, though.

Its a really great idea, executed very, very well. When that Longshot+Secondary gun integration was posted, everyone said that in a few years, that would be remembered as 'The LongShot mod'. I think that this is the one that everyone will remember; Captain Slug's Longshot Foregrip. I might have to do this to our Longshot soon. But I'll use the template you made, instead of making you machine a-million-and-one of these things.



-Pat
  • 0
QUOTE(euphemism) View Post
QUOTE(Pat) View Post

It gave the site a sort of 'homy' feeling.

Did you know that "m" can sometimes look like "rn" when read quickly?

#69 elf avec gun

elf avec gun

    Member

  • Members
  • 490 posts
  • Location:Minnesota

Posted 18 September 2006 - 09:31 PM

Adding on to {SF3G}pat 1st Lt. 's post: It's to bad that one cant do both your mod and the forward gun integration together. :cry:
  • 0
"It's hard to imagine a more specific subset of nerd than our community. One day we shall be studied by a single sociologist whom the other sociologists will mock incessantly." ~VACC


Got Nerd?

#70 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,604 posts

Posted 19 September 2006 - 03:24 AM

1. Are those two screws acting as hardpoints well enough? That is to say, are they holding up well? I'd tend to think that they wouldn't be a very secure way to guide the slide. Have they been coming loose at all? I'd tend to think that just screwing them in wouldn't be that secure if you really cocked the slide hard, over and over.

2. I would've done the same thing you did to the bolt sled for the foregrip part: put a rod through the holes drilled in the body, and secure it with some washers and some hex nuts. I think that'd hold better, but maybe that'd either have too much friction, or be too loose, depending on how tight you screwed it in.

1. hence why securing the hex nut to those screws as tightly as you can get it is recommended. The longshot I modified to make the instructions has been this way for over a week (of shooting my coworkers) with no loosening. If anyone has an issue with it they could add a regular washer, a locking washer, or just use a plastic threaded nut or something similar.

2. That's the way it was initially but it was making disassembly of the gun needlessly tedious. You can do it yourself for the sake of durability. Doesn't affect the end product or usability in any way.

And I don't think I'll be the end-all-be-all in anything any time soon. Some people prefer the stock bolt handle. Why exactly I'm not sure.
My foregrip is easy enough to redesign to allow for additional parts to still be mounted in the bipod area provided they're not very wide and I would be interested to see whatever modifications you guys can come up with for my hardware. Using my foregrip with the side arm integration would be quite a challenge dimensionally but isn't that impossible to accomplish.

Edited by CaptainSlug, 19 September 2006 - 03:25 AM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#71 General Cole

General Cole

    Member

  • Banned
  • 868 posts
  • Location:Las Cruces New Mexico

Posted 19 September 2006 - 09:12 AM

Elf, I think you can. Just mount it a bit lower than you usually would. Then put another longscrew in until it hits the pumping handle of the integreated gun.
We should stop calling out/making fun of/pissing GC off. He's actually contributed and is available for trade. He's a better than average member no doubt. Got your back Cole.
-Nerfer34

You know what... I know it's kinda late... but Props Cole.
-Baghead

#72 Edvin

Edvin

    Member

  • Members
  • 6 posts

Posted 19 September 2006 - 11:29 AM

I ..have a little suggestion for those who are too lazy to do this and want to increase the rate of fire:
Find a shoulder strap (from a guitar, or backpack even) and strap it on. The Longshot even comes with little strap holes built in! Now strap it to your shoulder, and you won't have to move the gun in order to cock it.

Ofcourse this mod is way cooler than getting a strap..but that gives the same RoF boosts with much less work.
  • 0

#73 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,604 posts

Posted 19 September 2006 - 11:49 AM

What are you talking about? Adding a shoulder strap to the loops provided on the gun still requires you to prime the awkwardly placed bolt handle with your hand that's not on the trigger grip. That configuration is rather awkward and makes the gun less stable. A shoulder strap might make the gun a little bit more stable, but won't improve rate-of-fire.
The Foregrip mod improves your grip stability and prevents you from having to change your hand holds in order to cycle the action. It's not about rate of fire, but about basic ergonomics.
Yes you might get the same rate of fire by simply keeping a hand on the stock bolt handle, but it would get uncomfortable very quickly and wouldn't lend itself to stable aiming like a shotgun-style grip would.

Edited by CaptainSlug, 19 September 2006 - 11:52 AM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#74 General Cole

General Cole

    Member

  • Banned
  • 868 posts
  • Location:Las Cruces New Mexico

Posted 19 September 2006 - 11:52 AM

Shoulder straps are better for carrying guns, not cocking them.
We should stop calling out/making fun of/pissing GC off. He's actually contributed and is available for trade. He's a better than average member no doubt. Got your back Cole.
-Nerfer34

You know what... I know it's kinda late... but Props Cole.
-Baghead

#75 Vaega

Vaega

    Member

  • Members
  • 20 posts

Posted 19 September 2006 - 07:04 PM

He means just keep the gun in place with the strap but cock it with the regular cocking handle.
  • 0


0 user(s) are reading this topic

0 members, 0 guests, 0 anonymous users
