115 replies to this topic

#51 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,498 posts

Posted 31 October 2007 - 10:13 PM

I added an optional foregrip to the design yesterday.
Posted Image
SUPPLIES!
Posted Image

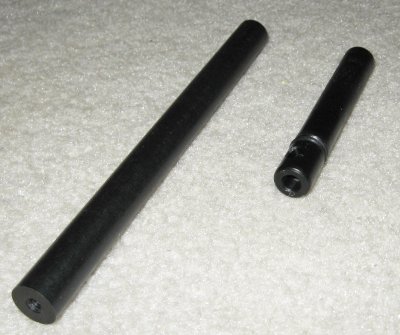

And today I got the ram parts made.
Posted Image
  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#52 Lynx

Lynx

    Member

  • Members
  • 983 posts
  • Location:Columbus, Ohio
  • State:Ohio
  • Country:United States

Posted 31 October 2007 - 10:19 PM

Posted Image

Have you thought of putting a clipped pistol onto that?
Think of a modded ClipTek (internals out into the arr) and firing those. That would be incredible!
  • 0
Columbus' original crazy asshole now comes with:

AWESOME NITEFINDER

#53 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,498 posts

Posted 31 October 2007 - 10:21 PM

Why would I want to attach an ugly gun to such a nice looking one? If I want a secondary it will be a Nitefinder clipped to my belt. Or I'll make one from scratch.
That area will be too small for anything except a handhold anyways.

Tomorrow I will mostly be working on getting templates made. I have a home theater project that might be acting as a distraction for a few days in the next week or so.

Edited by CaptainSlug, 31 October 2007 - 10:23 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#54 Lynx

Lynx

    Member

  • Members
  • 983 posts
  • Location:Columbus, Ohio
  • State:Ohio
  • Country:United States

Posted 31 October 2007 - 10:29 PM

Why would I want to attach an ugly gun to such a nice looking one? If I want a secondary it will be a Nitefinder clipped to my belt. Or I'll make one from scratch.


Well, I was thinking having two clipped guns in one would be pretty cool. I thought you could do a "grenade-launcher" (flip gun upside down and attach the cocker directly to the plunger) and/or a "no-shell" mod to it and use it as a secondary integrated into the arr.


Hehe arr...
  • 0
Columbus' original crazy asshole now comes with:

AWESOME NITEFINDER

#55 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,498 posts

Posted 02 November 2007 - 03:53 PM

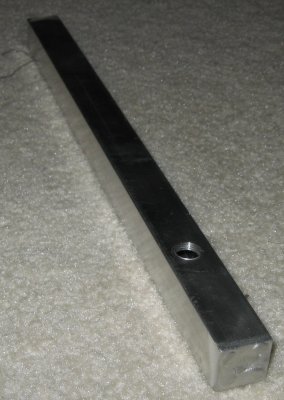

The inline tank is finished. Aluminum square tube with little plates welded into the end. Provides 5.5ci of volume. Add the volume of the air cylinder when extended to that and the total tank volume is around 7.25ci.
Posted Image
I was sick yesterday and didn't accomplish anything. Most of tonight will be spent getting the template sheets and cut lists typed so I can do the bulk of the machining tomorrow.

Edited by CaptainSlug, 02 November 2007 - 03:56 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#56 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,498 posts

Posted 06 November 2007 - 11:06 AM

I was pretty sick over the weekend and didn't get much accomplished. I just finished making the barrel on the lathe and I have the template ready. I just need to find time to start cutting out parts. I'll edit this post with a picture of the barrel later today.

Edit: Still sick. ugh.

Edited by CaptainSlug, 07 November 2007 - 06:46 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#57 zxnam

zxnam

    Member

  • Members
  • 94 posts

Posted 11 November 2007 - 01:36 PM

Captain Slug,
I've been reading through this thread and I can't quite understand the way the breech works, could you explain this a bit more? I'm sure it will be a "duh" moment but any explanation would be great.
  • 0

#58 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,498 posts

Posted 11 November 2007 - 04:05 PM

I've had a flu for the past week that includes a mean headache so I've been avoiding power tools.

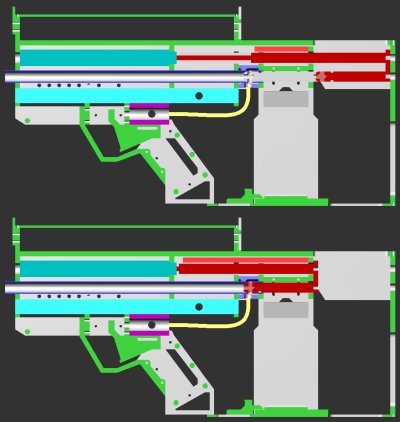

The gun is based around a dual-acting air-cylinder which has one port that extends and one that retracts. I'm only using the port that retracts the cylinder when pressurized. This allows me to have a shorter stroke length than the cylinder was designed for (3-1/2" instead of 5").
Posted Image
1. When depressurized an extension spring pulls the ramrod from the barrel.
2. When pressurized the air-cylinder pull the ramrod into the barrel. The action loads the next dart and seals the back of the barrel.
3. The trigger valve is linked to the barrel through tubing that leads to a sleeve that jackets the end of the barrel. The barrel has two portholes in it inside the jacket that line up with the holes in the ramrod. This allows the valve to fire the dart without having to channel air through the ramrod.

The inline tank is obviously linked to the air-cylinder to increase the effective firing volume.

Edited by CaptainSlug, 11 November 2007 - 04:07 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#59 zxnam

zxnam

    Member

  • Members
  • 94 posts

Posted 11 November 2007 - 04:26 PM

Ok, thanks captain slug.

By the way, keep up the good work!
  • 0

#60 Ronster

Ronster

    Member

  • Members
  • 528 posts
  • Location:The Alamo

Posted 23 November 2007 - 05:12 PM

Get better, dammit.
  • 0
-I Nerf, there for I am.

QUOTE(baghead @ Oct 25 2006, 09:55 AM) View Post
Ronster reminded me that I should have warned you all Prepare your Bladder for Imminent Release!!!!

#61 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,498 posts

Posted 24 November 2007 - 06:25 PM

This project got sidelined a little bit by a home theater project.

One of the neighbors of my workplace does professional video conferencing installations and they're moving or rearranging their office. They put a gigantic CRT projector on an adjustable cart out by the dumpster two weeks ago and me and my boss snatched it in quick order. He laid claim to the cart, I laid claim to the projector.

It's 32x28x19 inches in size, weighs 150 pounds, and outputs a picture size higher than 1080p. I'm in the process of rearranging the living room into a home theater setup. Here are some samples of the picture quality on a 9'x6' (120" diagonal) screen I installed a week ago.
Posted Image
Posted Image
Posted Image
And here's my favorite part: It works with 3D LCD shutter glasses.
I'm finishing work on a custom gaming computer with my leftover hardware with the intent to play racing games, flight sims, first-person shooters, and to play DVDs in full HD output quality using said glasses.

Edited by CaptainSlug, 24 November 2007 - 06:27 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#62 Blasphemy

Blasphemy

    Member

  • Members
  • 355 posts
  • Location:Milford, CT

Posted 24 November 2007 - 06:40 PM

That's pretty sick, now just hook up a 7.1 surround sound system and I'll have even more reasons to envy you.

Edited by Blasphemy, 24 November 2007 - 06:42 PM.

  • 0
When speaking about a swallow, always make sure you know whether it is an African or European swallow. It is very important.

#63 King Of Butt Land

King Of Butt Land

    Member

  • Banned
  • 324 posts

Posted 24 November 2007 - 08:02 PM

Dr. Who and Batman, what a combo. I envy you.

-Butt
QUOTE(Puppy-žlayer @ Dec 18 2008, 04:22 AM) View Post

This contest may have some flaws, as people can simply be a deuschbag over the internet. By Lying.

A war-like setting/invitational would be better...


#64 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,498 posts

Posted 07 January 2008 - 01:43 PM

I got the paintball tanks to use with this gun for Christmas and I already have a screw-on regulator to use with them. I will be getting back to this project after the UofM war on the 19th.

Edited by CaptainSlug, 07 January 2008 - 01:47 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#65 VACC

VACC

    Vacc is Legend

  • Founders
  • 3,257 posts
  • Location:New York
  • State:New York
  • Country:United States

Posted 07 January 2008 - 02:54 PM

This project got sidelined a little bit by a home theater project.

One of the neighbors of my workplace does professional video conferencing installations and they're moving or rearranging their office. They put a gigantic CRT projector on an adjustable cart out by the dumpster two weeks ago and me and my boss snatched it in quick order. He laid claim to the cart, I laid claim to the projector.

It's 32x28x19 inches in size, weighs 150 pounds, and outputs a picture size higher than 1080p. I'm in the process of rearranging the living room into a home theater setup



What kind of speaker set up do you have? I've sold and collected home theatre equipment for a few years now and lemme tell you, surround sound is the most underrated componant of home theatres. Do you have any idea what kind of a difference you hear just going from stereo to a center channel set-up? "You mean those people were talking?"

My setup is far from high end, but it's rather nice for what I do. Currently I'm using a 60" sony sxrd (kdr60a2000)(1080p obviously), 7.1 surround with 2 front infinity beta40 floorstanding speakers, standard scientific atlantic hd dvr cable box (the explorer something or another), and I just upgraded to the onkyo txsr605 (actually not really an upgrade but it is the cheapest way to get hdmi 1.3 and decode both Dolby truehd and dts hd ma if I ever upgrade to a bluray player that outputs bitstream). Using my PS3 for all optical media at the moment. I use a pronto pro 7000 to control it all and I bought an ir adaptor for my ps3 for that very reason. I'd say if you want any suggestions on an affordable reciever/processor to let me know, but you probably build these things in your spare time. Fucking mad scientist.
  • 0

#66 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,498 posts

Posted 07 January 2008 - 03:38 PM

Nobody in the house is an audiophile and my room is just above the living room, so anything better than what we're using now would be very audible in my room.
  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#67 Eboreg

Eboreg

    Member

  • Members
  • 220 posts

Posted 02 February 2008 - 06:22 PM

Is there any way that you can make the weapon fully automatic when you need it to be? Like have a second trigger that activates a magnetic resonator that constantly presses the first trigger?
  • 0
Always bring your sword to battle.

I pity the fool who attempts to use a single-shot blaster against me.

#68 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,498 posts

Posted 03 February 2008 - 05:00 AM

Is there any way that you can make the weapon fully automatic when you need it to be?

No. You can't make an automatic Nerf gun that operates on a single breech that would fire any faster than a semi-automatic without it mangling the darts.
  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#69 Salmon

Salmon

    Member

  • Members
  • 447 posts
  • Location:Austin, TX

Posted 07 February 2008 - 04:16 PM

You can't make an automatic Nerf gun that operates on a single breech that would fire any faster than a semi-automatic without it mangling the darts.

Yeah... I tried. Except mine was a springer.
  • 0
Welcome to I-dont-care-isburg, population: me.
We're located in I-Don't-Give-a-Damn County, in scenic Shut-the-Hell-Up-achussets.
Maybe you're familiar with our annual charity drive where we ask for shit, and no one gives any.

#70 Green Riptide

Green Riptide

    Member

  • Members
  • 100 posts
  • Location:Columbus, Ohio

Posted 07 February 2008 - 07:18 PM

personally I'm confused as to why the squared area behind the clip exists at all. Is that bracing for inevitable tank attachment?
  • 0

#71 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,498 posts

Posted 07 February 2008 - 10:53 PM

personally I'm confused as to why the squared area behind the clip exists at all. Is that bracing for inevitable tank attachment?

The actuated ram needs space to move.
Posted Image
  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#72 Z-man12

Z-man12

    Member

  • Members
  • 232 posts

Posted 07 February 2008 - 11:20 PM

Sence this thred is been seeing some action lately I thought I would ask a question that I am shure alot of people are thinking.

How is this thing comeing along?
  • 0
I mod nerf guns so they look good. So leave my scopes, doodads, and trinkets alone I like them. I don't mind the weight and I started out that way on toy guns and its not going to change.

#73 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,498 posts

Posted 07 February 2008 - 11:47 PM

How is this thing coming along?

Only relevant information to report is that I have refined my paintball tank setup to what I've always wanted it to be. It can now be used with both automatics and semi-automatics. It will be the power source for this project as well.
Posted Image
And I updated that thread accordingly.
http://nerfhaven.com...?showtopic=8632

I've had too many other thing to machine and work on in the past few weeks such as the finishing touches on the home theater setup, rewiring my electric scooter, making the can racks for my mother and sister-in-law that I'm a year behind in making, and refining the breech and turret options for my +bow.
  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#74 VACC

VACC

    Vacc is Legend

  • Founders
  • 3,257 posts
  • Location:New York
  • State:New York
  • Country:United States

Posted 08 February 2008 - 10:01 AM

I've had too many other thing to machine and work on in the past few weeks such as the finishing touches on the home theater setup, rewiring my electric scooter, making the can racks for my mother and sister-in-law that I'm a year behind in making, and refining the breech and turret options for my +bow.


I notice that you failed to mention the national huggs for whores tour that we've been planning. Would you care to explain?

VACC
~cares! If anything, Vacc cares too much!~
  • 0

#75 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,498 posts

Posted 08 February 2008 - 11:54 AM

I thought we agreed that would come after the indecent book drive?

Edited by CaptainSlug, 08 February 2008 - 11:54 AM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?
