First Attempt At A Homebrew Gun

With pics

75 replies to this topic

#1 Carbon

Carbon

    Contriberator

  • Moderators
  • 1,893 posts
  • Location:Milwaukee, WI
  • State:Wisconsin
  • Country:United States

Posted 31 January 2006 - 12:12 AM

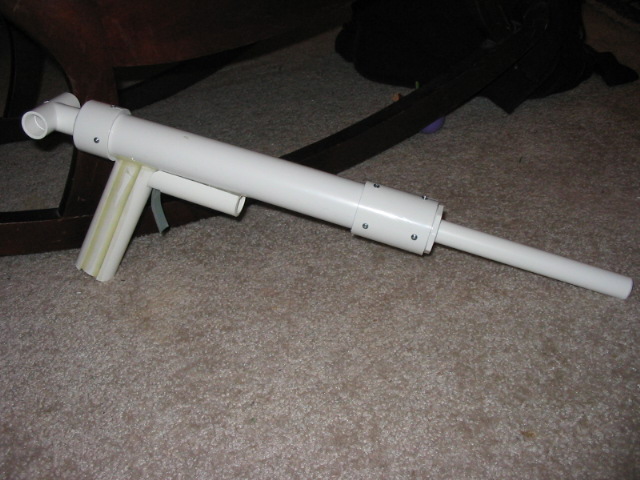

I've been collecting Nerf for years, but only discovered mods and homebrew guns very recently when I bought a couple of AT2Ks...and found out how bad they were out of the box. They rock now. Anyway, I've been spending a lot of time reading Boltsniper's amazing work. I want to build a F.A.R. eventually (who doesn't?), but the thought of taking on the entire project all at once was a little intimidating...so I decided to build a smaller project based on what I was learning. This is my first result.

Posted Image

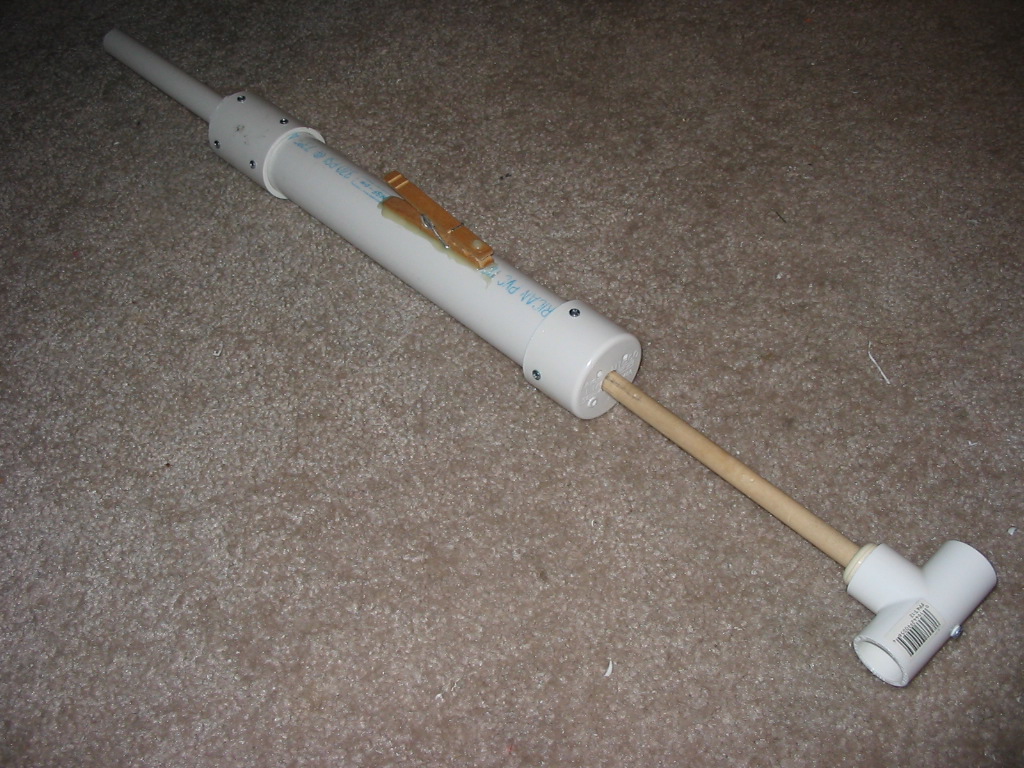

What I was testing out in this gun was how to make a internally sprung plunger that used a firing pin. This is the plunger assembly:

Posted Image

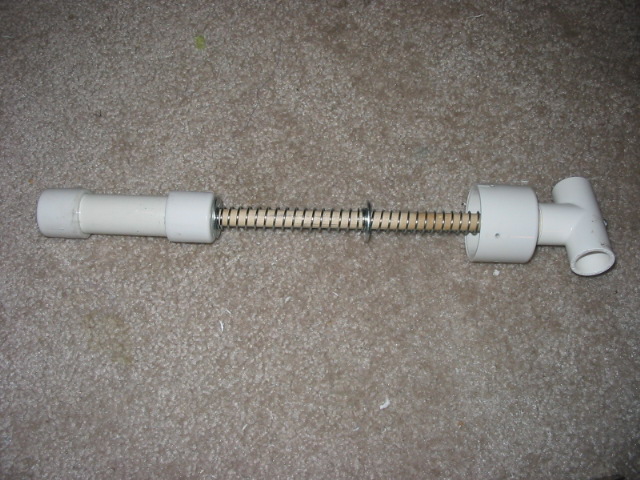

The design came about after discovering that 3/4" endcaps fit just about perfectly in 1 1/4" PVC, with some minor edge sanding. The plunger is two endcaps (no O-rings) with a three or four inch length of tube. The dowel is attached to the bottom cap of the plunger with a cotter pin. I wans't able to find one long suitable spring, so I used two, separating them with a washer, plus washers at either end. Then, the spring assembly was capped with a 1 1/4" endcap. The hole for the dowel is very close to avoid rattles, so I drilled several vent holes in the endcap. The works is currently lubricated with a touch of vegetable oil.

I didn't want to even try a complex firing pin assembly, so I did something a lot simpler:

Posted Image

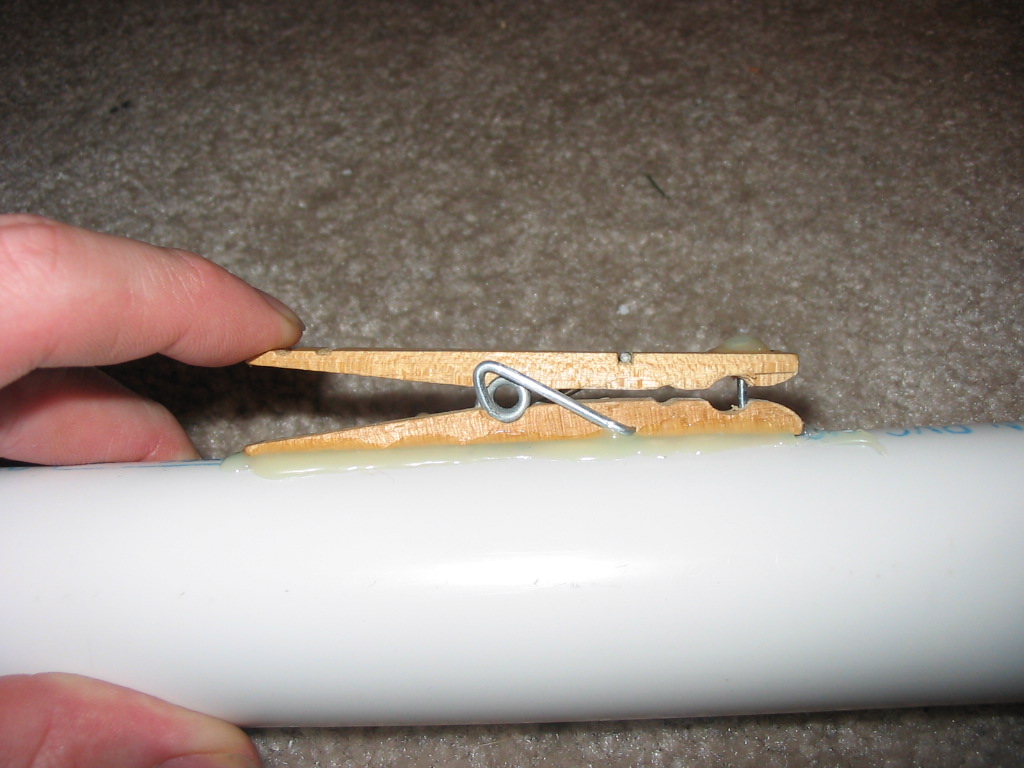

The firing pin is based off of something I saw on the Wikipedia page for rubber band guns, only upside down; the clothespin is glued down, and a hole drilled through it, into the plunger tube. I put in a nail, trimmed to the proper length (this took trial and error), and covered it with a dome of hot glue. The gun can then be fired by pressing the clothespin.

Posted Image

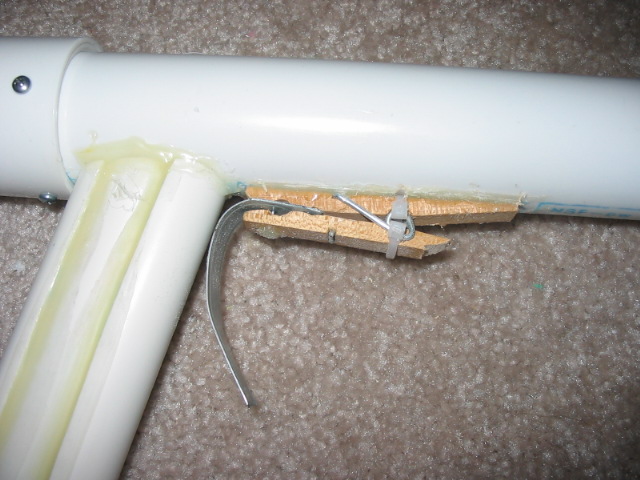

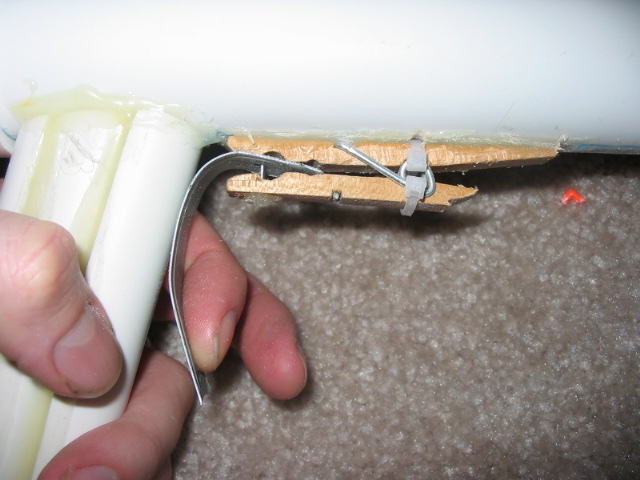

This is a closeup of the trigger assembly - once again, keeping it simple:

Posted Image

I drilled a hole in a piece of workable metal (this is a PCI slot cover), and slipped the firing pin through it. Pulling on the trigger lifts the pin just enough to release the nail.

Posted Image

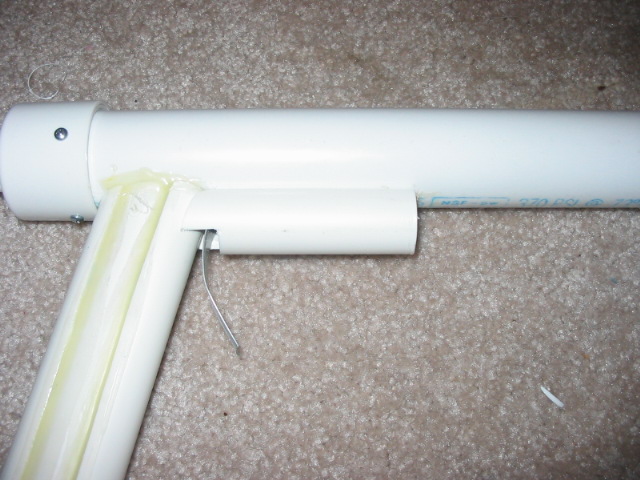

I then cut a strip out of 3/4" PVC , and slipped that over the trigger assembly.

Posted Image

The barrel is 3/4" PVC with a nested Crayola barrel to keep darts out of the plunger. Fires stefans and micros (sonics work rather well). The barrel is fitted into a 1 1/4" --> 1/2" PVC bushing. The part is nice - the inside is shape into a half sphere, so it channels the air nicely. I'm using the hollow space in the handle to store the ramrod (1/2" dowel, stored in some 1/2" CPVC I have glued in there).

RANGE: The gun currently gets about 40-50 feet.

FUTURE PLANS: Well, get some O-rings on the plunger, for one. I've been having trouble finding them in the kinds of sizes or thicknesses I've been looking for. I'm also going to replace the dowel with an aluminum tube (the dowel tends to bind up a little). Cosmetically, I'll be painting it black, and probably adding a cosmetic clip/dart storage tube on the side to play up its similarities to a Sten. I'm having fun, I'll keep playing with it.

Edited by Carbon, 19 April 2015 - 04:16 PM.

  • 0
Hello. I am Indigo of the Rainbow Clan. You Nerfed my father. Prepare to die.

#2 Crappy Nerfer

Crappy Nerfer

    Member

  • Banned
  • 149 posts
  • Location:Kissimmee, FL

Posted 31 January 2006 - 12:34 AM

Woah, good job. I love the simplicity and looks.

Yeah, o-rings will definently make it more air-efficiant. Also, maybe, a stronger spring. Finally the barrel looks too long, maybe shorten it.

Otherwise good job.

By the way, that trigger is marvelous.
"If one notices a patch of gangrene in a wound on the back of one's hand, one does not simply hope that it gets better over time.

One cuts that shit off at the wrist and learns to masturbate lefty."

- Death

"By BC do you mean Boston College?"

- nerfer34

#3 boltsniper

boltsniper

    Member

  • Contributors
  • 591 posts

Posted 31 January 2006 - 01:17 AM

That's very impressive. That is quite an ingenious trigger you developed there. It's extremely simple but looks to be quite ergonomic. I don`t know that I could've come up with that use out of a clothes pin. Kudos!

What's your stroke on your plunger. Since your plunger is in 1/1/4" PVC and he stroke seems decently long I don`t tihink your barrel is too long at all. You could possibly go longer with that kind of plunger volume. You definitely should get some kind of seal on your plunger. An O-ring would be best but even electrical tape will help. Like you said it might be kind of hard to find an O-ring that large.

Again, very nice job. Can`t wait to see it painted up.
  • 0

#4 Pineapple

Pineapple

    Old-school Admin

  • Contributors
  • 1,377 posts

Posted 31 January 2006 - 06:28 AM

Very cool.

Bolt's FAR, while a technological masterpiece, is also equally challenging to build; trust me, it's been at least six months now and I'm still stuck on the firing system (I'm making a variation, single shot.)

Your clothespin trigger and pin release is simple, yet works. I may take on that one just so I don't get stuck on bellcranks and linkage. I will, however finish the FAR variant if it kills me (which is pretty close right now).

Good job. Neat to see more innovation in homemades.


-Piney-
  • 0
-Piney- of White Dog Hobbies Armory


<!--quoteo(post=209846:date=Feb 5 2009, 06:27 PM:name=boom)--><div class='quotetop'>QUOTE(boom @ Feb 5 2009, 06:27 PM) View Post</div><div class='quotemain'><!--quotec-->
It's to bad you live in hawaii I bet there are not many wars there.Wait what am I saying<b> you live in hawaii you lucky bastard.</b>
<!--QuoteEnd--></div><!--QuoteEEnd-->

#5 Carbon

Carbon

    Contriberator

  • Moderators
  • 1,893 posts
  • Location:Milwaukee, WI
  • State:Wisconsin
  • Country:United States

Posted 31 January 2006 - 12:24 PM

Thanks for your comments, compliments, and ideas, I appreciate it!

Not only O-rings, but springs have been a challenge to find, CN. For this gun, the source I had was pretty limited. I decided to go with the two springs rather than one stiffer one I found, because I didn't know if I would shear off the nail with something stronger. The original nail has held up well, so I'll step up the spring and see what happens. Also, I'm finding that a stronger spring results in a stiffer pull (sorta figures), as I'm finding in the variant I'm making now. If I use much stiffer of a spring, I'll have to use a trigger linkage to get teh lever advantage to pull the pin....

The stroke on the plunger is about seven inches, boltsniper. I used your "rule of thumb" equation to figure the barrel, but it needs some more testing. You're right, a 1 1/4" plunger should have a huge air displacement, but I think my design is inefficient enough that I'm not getting the full benefit. I'll try out electrical tape, or maybe sandwiching in a rubber washer in between parts of a cut endcap. Is there anything in particular that I should be lubing the plunger with, rather than veggie oil?

I'll be really interested to see your implementation of the clothespin if you end up using it, Piney...my PCI slot metal is okay, but it still has a bit too much flex to it. I'm still trying to find something which is thin, easily workable with basic tools, but keeps its shape better.

Back to the bench, gotta try these ideas out now... thanks!

Edited by Carbon, 31 January 2006 - 12:26 PM.

  • 0
Hello. I am Indigo of the Rainbow Clan. You Nerfed my father. Prepare to die.

#6 cooldood31

cooldood31

    Member

  • Members
  • 117 posts
  • Location:London ON, Canada

Posted 31 January 2006 - 01:23 PM

Sweet homemade, Carbon. If you manage to get the thing working more efficiantly, I might make one myself (it would be my first homemade). It reminds me a bit of a sten (british submachine gun from ww2). Good luck with the changes, and I hope you find a good name for it.
  • 0

#7 boltsniper

boltsniper

    Member

  • Contributors
  • 591 posts

Posted 31 January 2006 - 01:44 PM

Is there anything in particular that I should be lubing the plunger with, rather than veggie oil?

I'm sure vegetable oil works just as good as any. I use gub oil which is a light oil to lube my plungers. Whatever you use jsut make sure it doesn`t degrade the rubber if you end up with o-rings. Some lubricants will eat rubber.
  • 0

#8 Carbon

Carbon

    Contriberator

  • Moderators
  • 1,893 posts
  • Location:Milwaukee, WI
  • State:Wisconsin
  • Country:United States

Posted 31 January 2006 - 05:30 PM

Sweet homemade, Carbon. If you manage to get the thing working more efficiantly, I might make one myself (it would be my first homemade). It reminds me a bit of a sten (british submachine gun from ww2). Good luck with the changes, and I hope you find a good name for it.

Heh...I actually hadn't thought too hard about a name. But you're the second person to bring up the Sten similarity. It goes beyond looks, too...at least, in my mind. I wanted to build something easy, that I could get going quickly (sort of like the real Sten, which was designed to be produced out of largely stamped metal parts).

So, I dub this gun the Simplified Nerf Armament Prototype, or S.N.A.P. Also because it's a snap to put together. The second version is in development, so this one will be the SNAP-1.
  • 0
Hello. I am Indigo of the Rainbow Clan. You Nerfed my father. Prepare to die.

#9 FromAbove

FromAbove

    Member

  • Members
  • 71 posts
  • Location:Barrie, ON

Posted 31 January 2006 - 05:39 PM

Carbon,

Great job with the pistol, simple and effective and theres improvement possible to make it even better.

Not to hyjack the thread but since there has been talk of trigger mech's has anyone considered the use of a sprinkler solenoid for actuation. I picked one up earlier last week thinking it was a "push" solenoid, turns out they pull, which led me to think of a design for a pistol, similar to the GNS, but with an electronicly actuated trigger.

I think it would be a rather expensive alternative, I paid around 14 dollars Canadian for the solenoid, it does give the freedom where mechanics may not allow, it would be easy to route wires around say a magazine or what not.

Just a thought.
  • 0
Connor: Oh, is that right, Rambo?
Murphy: All right, get your stupid fucking rope.

Do you mean with an integration or what? Because size doesn't have anything to do with performance...-NerfMonkey

#10 cooldood31

cooldood31

    Member

  • Members
  • 117 posts
  • Location:London ON, Canada

Posted 31 January 2006 - 07:00 PM

Carbon, simplicity is half the reason I thought of a sten. Speaking of mass production, once the SNAP mk.2 is out, if it's shooting better (80 feet would be a good goal to shoot for) could you put the instructions out online, that would be awesome. I could easily see these things becoming the backbone of my arsenal.

A neat idea to do (once the instructions are out) is to have people pm you when they finish one, and you could keep track of the number of SNAPs produced in your sig. It would be interesting to see how many people start making these.

Once you have the basic SNAP shooting at a slightly higher range, another idea would be to try making some with turreted barrels (like an airtech 2000), or a bolt action clip (I think it's Ompa or Pineapple that makes these), of course you'd make the clip feed horizontaly right?
  • 0

#11 davidbowie

davidbowie

    Member

  • Members
  • 422 posts

Posted 31 January 2006 - 07:14 PM

Here's a tip if o-rings are difficult to find: your local hardware store should have 3/4" sliding repair couplings (AKA Slip-Fixes). The plungers from these have o-rings mounted on them, and they are a very nice fit in 1 1/4" PVC. This would also allow you to have a PVC plunger shaft attached with standard fittings and solvent.

I love the look of it. Clip feed would be awesome, but all you really need is a breech, or maybe a turret. Ramrods aren't exactly convenient.
  • 0
Check out the all-new DBNerf. The source for all your DBNeeds.

#12 LordoftheRing434

LordoftheRing434

    Member

  • Members
  • 565 posts
  • Location:Duluth/Minneapolis, MN

Posted 31 January 2006 - 11:13 PM

Nicely done.

For your lubricant, I'd say that silicone will work best. I've said it before and I'll say it again - it works wonders for me. I've used it to lube my NF, SS1, and BBB and each is amazing.
  • 0
And when he gets to Heaven, to St. Peter he will tell, "One more soldier reporting sir, I've served my time in hell."

"I bluff it. I don't throw my weight around and say I know what I'm doing." ~ Mick Jagger

#13 Carbon

Carbon

    Contriberator

  • Moderators
  • 1,893 posts
  • Location:Milwaukee, WI
  • State:Wisconsin
  • Country:United States

Posted 01 February 2006 - 09:19 PM

After meeting with dismal failure last night, I've made some serious improvements tonight, with a lot less work...

I've been trying out most of the suggestions. I added a stiffer spring, and swapped the dowel for an aluminum rod. But the plunger head was still too leaky. The tolerances were too tight for anything; one turn of electrical tape ended up getting scuffed, and trying to dremel in an o-ring ended up with me nearly gluing my fingers together, and nearly jamming the plunger into the gun. Even the idea of gluing a rubber washer that was large enough at the face of the plunger would end up getting jammed. But then I got the idea....why not put it in front of the plunger?

Posted Image
Posted Image

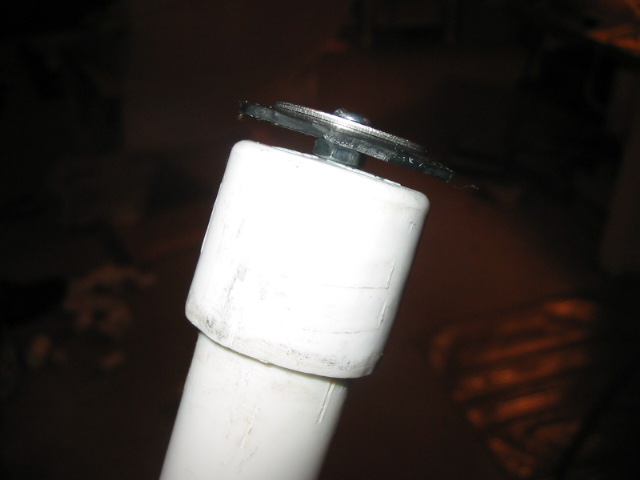

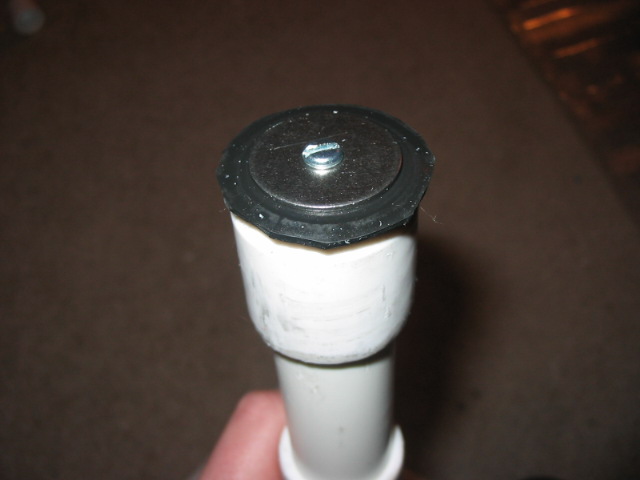

I took a machine screw, and dropped on a fender washer for support, a large rubber washer, another fender washer, and then added a nut. I drilled a hole in my face plunger, dropped it through, and then screwed on the whole assembly. This gave me a washer assembly which could be more flexible than a typical O-ring, and actually press against the walls of the tube, without adding a lot of resistance. LOTR's suggestion of silicone lube really makes it fly. The worst part was that the washer I found had an O.D. that was too big, so I had to cut it down with a knife. I can *hear* an improvement - if I try and cock the gun with a dart in the chamber, it makes a vacuum noise.

Tonight, I actually took it outside for some range testing, and the gasket showed up as improvements of about 15 feet. Firing a micro sonic:

55 feet
62 feet
64 feet
58 feet
74 feet
55 feet
72.5 feet

These are all measured distances, firing chest high, level.

The only downside I have right now is that the new, stiffer spring is a harder pull, so my PCI cover bends before it lifts the clothespin. Still searching for the elusive stiff, yet bendable metal...

Edited by Carbon, 19 April 2015 - 04:16 PM.

  • 0
Hello. I am Indigo of the Rainbow Clan. You Nerfed my father. Prepare to die.

#14 sniper25

sniper25

    Member

  • Members
  • 67 posts

Posted 01 February 2006 - 09:44 PM

I have attempted this type of side arm and have come to failure. this post has helped alot and the gun looks great. I have added a false magazine for looks ^_^, it looks like a WWII grease gun.
  • 0
Mr. pink of ugns

Under
Ground
Nerf
Squad

#15 LastManAlive

LastManAlive

    Member

  • Members
  • 686 posts
  • Location:West Virginia

Posted 01 February 2006 - 09:52 PM

If you are getting a vaccum seal, then that is actually good.

1) It shows you have a GREAT seal on the plunger. My NF doesn't even get a vacuum sound seal.

2) Since you are getting a vacuum seal, you will not need ramrods to load your gun. You can simply stick a dart in the end (if using stefans) abd pull it back. the vacuum will pull the dart with it.

3) A longer barrel would much be needed for better range. especially with that plunger. You might want to make the barrel as long as your plunger tube so tha the vacuum can pull the dart back with equal length, and not suck the dart into the chamber.

Nice work.
  • 0
He came, He saw, and he conquered... But where did everyone go?

#16 davidbowie

davidbowie

    Member

  • Members
  • 422 posts

Posted 01 February 2006 - 10:20 PM

Instead of finding the elusive stiff yet bendable material (spring steel), have you considered turning the clothespin around, and attaching something to it directly? I apologize for being vague, but you probably get the idea. I've gotta make one of these!
  • 0
Check out the all-new DBNerf. The source for all your DBNeeds.

#17 Carbon

Carbon

    Contriberator

  • Moderators
  • 1,893 posts
  • Location:Milwaukee, WI
  • State:Wisconsin
  • Country:United States

Posted 01 February 2006 - 10:37 PM

LastManAlive: I gotta find me some better FBR...vacuum loading sounds great! The stuff I have is just a bit too thick...I really have to twist it in, so I haven't tried making darts with it yet. The 3/8" FBR I have is tiny...falls into the barrel, but seats in Crayola pretty well. I'll keep up the search, I gotta try that!

davidbowie: The clothespin orientation was originally because the rear catchface was too far back to turn it that way, and have a handle. That, and I hadn't realized/found out that I could really cut off the back end of the pin. But now that you mention it, the new spring caused me to move the firing hole forward by close to an inch, and I don't need the back of the clothespin at all...

'Scuse me, I need to go get my saw.

EDIT: Worked perfectly. I was able to hot glu a piece of angle iron I had lying around (which was too thick for the other use). Boom, a trigger with no play in it, and a direct pull on the pin. Thanks DB!

Edited by Carbon, 01 February 2006 - 10:56 PM.

  • 0
Hello. I am Indigo of the Rainbow Clan. You Nerfed my father. Prepare to die.

#18 Meaker VI

Meaker VI

    Member

  • Moderators
  • 1,184 posts
  • State:Washington
  • Country:United States
  • u/MeakerVI on Reddit

Posted 01 February 2006 - 10:37 PM

If you go to a home depot (or whatever you've got) they should have bar stock metals in various leingths and thicknesses. I've bent 1/4" thick stuff using a vice and a hammer (and a 4' long pipe, now that I think about it...), and it'd be difficult to bend back. I would recommend flat bar steel, but I don't know how thin it comes or how wide (My 1/4" stuff was like an 1 1/2" wide).

And on using 2 springs as opposed to 1; I remember reading a topic about a gun that did that and got better preformance. You might want to play with that, it would yeild some interesting results. Also, anything you can do to lighten the plunger will make it travel faster, which means more power.
  • 0

#19 Uncle Hammer

Uncle Hammer

    Member

  • Members
  • 750 posts
  • Location:Austin,TX 78758

Posted 01 February 2006 - 10:49 PM

This is the topic with a double spring used in a water type pistol. It got 100 ft after starbuck modified it. Linkage
  • 0
Don't mess with Texas cuz its bigger than France, bitch..
QUOTE (Talio)
Catagory 5 hurricanes are the mighty dick of God.  You don't mess with that!  You don't mess with Gods dick!

#20 cooldood31

cooldood31

    Member

  • Members
  • 117 posts
  • Location:London ON, Canada

Posted 01 February 2006 - 11:11 PM

The long barrel might be what is causing lack of range. A plunger that size should be giving a lot more power. By the way, what are you weighting your darts with? It might also be just because your darts are too wide for the barrel. Once you find better fbr, could you try range testing again and see what you get. I'm sure the ranges will go up.
  • 0

#21 Crappy Nerfer

Crappy Nerfer

    Member

  • Banned
  • 149 posts
  • Location:Kissimmee, FL

Posted 02 February 2006 - 02:28 AM

The long barrel might be what is causing lack of range. A plunger that size should be giving a lot more power. By the way, what are you weighting your darts with? It might also be just because your darts are too wide for the barrel. Once you find better fbr, could you try range testing again and see what you get. I'm sure the ranges will go up.

Hrrmm, I don't know... Maybe a PLASTIC SUCTION CUP.
"If one notices a patch of gangrene in a wound on the back of one's hand, one does not simply hope that it gets better over time.

One cuts that shit off at the wrist and learns to masturbate lefty."

- Death

"By BC do you mean Boston College?"

- nerfer34

#22 Carbon

Carbon

    Contriberator

  • Moderators
  • 1,893 posts
  • Location:Milwaukee, WI
  • State:Wisconsin
  • Country:United States

Posted 02 February 2006 - 07:48 AM

Actually, it's a sonic (you know, one of those whistling darts), so it's a rounded plastic cap. Suction cup darts work pretty badly, from casual testing. Anyway, the sonic is really too small for the barrel, it falls down in until it hits the Crayola (I ramrod it the rest of the way). I'll repost ranges once I find some decent FBR.

*EDIT*

Just finished painting it up. Since any further improvements will probably come in the form of better made darts, it's pretty much done. Here it is, the SNAP-1...

Posted Image

Edited by Carbon, 19 April 2015 - 04:17 PM.

  • 0
Hello. I am Indigo of the Rainbow Clan. You Nerfed my father. Prepare to die.

#23 cooldood31

cooldood31

    Member

  • Members
  • 117 posts
  • Location:London ON, Canada

Posted 02 February 2006 - 09:51 PM

That is one of the few Nerf guns I like the black paintjob on. Good job. I also like the fake clip, but just out of curiosity why didn't you put it directly left if you're going for the sten look? Anyways once you get the ranges with stefans, I might make a pair so I can dual wield them (has anyone here played the singapore sling level of Medal of Honour: Rising Sun? Sweet cutscene...).
  • 0

#24 NinjZ

NinjZ

    Member

  • Members
  • 1,005 posts
  • Location:jersey

Posted 02 February 2006 - 10:12 PM

Looks like that British WWII smg ( the name escapes me at the moment ). Sten? Sterling? somthing like that.
  • 0

#25 Enigma1313

Enigma1313

    Member

  • Members
  • 95 posts
  • Location:Niagara Falls, NY

Posted 02 February 2006 - 10:34 PM

^It's Sten you're referring to, and thats the look he was going for^

Nice job, Carbon...very nice, in fact. I think I'll try making my own one of these, considering its so simple, I pretty much have grasped how to make it. You really followed the KISS(Keep It Simple,Stupid) mindset, a policy I try to apply to everything. Oh, and I love the matte black paint job and the false clip.
  • 0
"Excellence over Compassion. Hatred over Foregiveness. Dedication before Forfeit. So is the way of the Enigma."
-Excerpt from the Preamble of the Enigma Code.
