Splitfire Redux


7 replies to this topic

#1 Homestarune

Homestarune

    Member

  • Members
  • 189 posts
  • Location:Manhattan, Kansas

Posted 10 December 2009 - 02:38 AM

I realize that most of this has been done already. This modification simply goes into more detail than cxwq did. I figured that it was time to further in depth. Bags was kinds enough to sell me a stock Splitfire.

Tools/materials needed:

Screwdriver
Hacksaw
Hotglue

Posted Image

Here’s the front of the blaster:

Posted Image

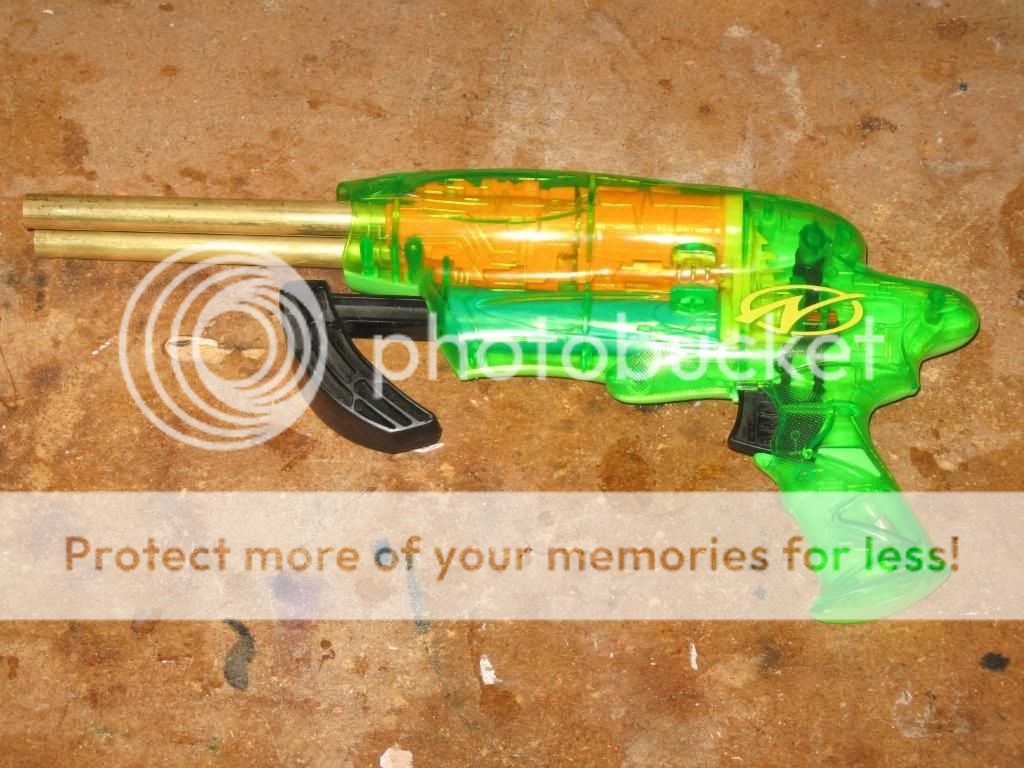

And the back:

Posted Image

A look at the internals.

Posted Image

The pump tube and stock barrels

Posted Image

9/16” brass just so happens to fit near perfectly in the bottom of the stock barrels.

Posted Image

I measured how much 9/16” was needed. I used about 2.75” of 9/16” on each barrel.

Posted Image

I fit a full tube of 17/32 in each barrel to see what it would look like. I decided not to go with something so absurdly long. I ended cutting them down to 8.5” as it seemed to give me a good dart/barrel fit.

Posted Image

I put a bit of silicon lubricant inside the pump tube.

Posted Image

Plug the pump with a dab of hot glue.

Posted Image

I made a mark on the back notch of the barrels.

Posted Image

Here’s what they look like after having been cut through.

Posted Image

Remove those pesky air restrictors. It helps if you can get a knife around the outside where the restrictors are glued to the barrels.

Posted Image

I slid the 9/16” sheath over the 17/32” for barrel stability.

Posted Image

I wrapped electrical tape over the end of the 9/16” segment until it met the diameter of the stock barrels.

Posted Image

Here’s what it looked like once the brass was placed inside the stock barrels.

Edited by Homestarune, 10 December 2009 - 03:13 AM.

  • 0
We're not discouraging people from joining a Nerf forum, we're discouraging them from joining this forum. It's an important distinction because, frankly, we don't give a shit. The Haven was created to escape the idiotic masses, now they're all here. -cxwq

#2 Homestarune

Homestarune

    Member

  • Members
  • 189 posts
  • Location:Manhattan, Kansas

Posted 10 December 2009 - 02:40 AM

Posted Image

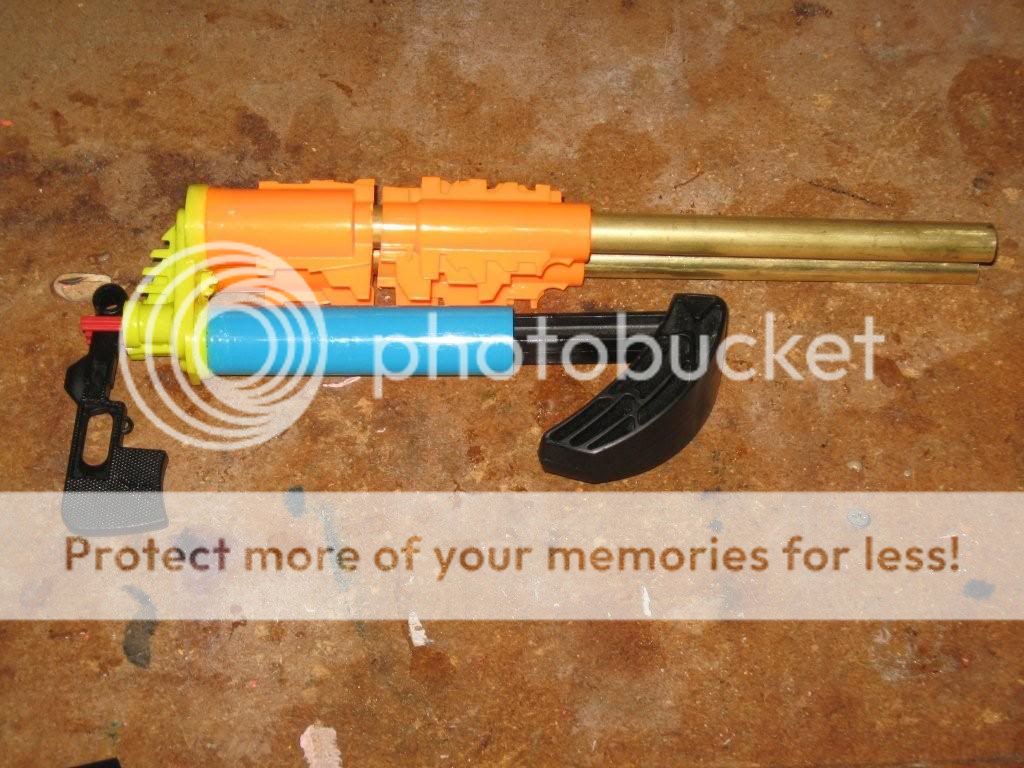

A picture of the now modified internals.

Posted Image

I glued the barrels down and screwed the shell back in.

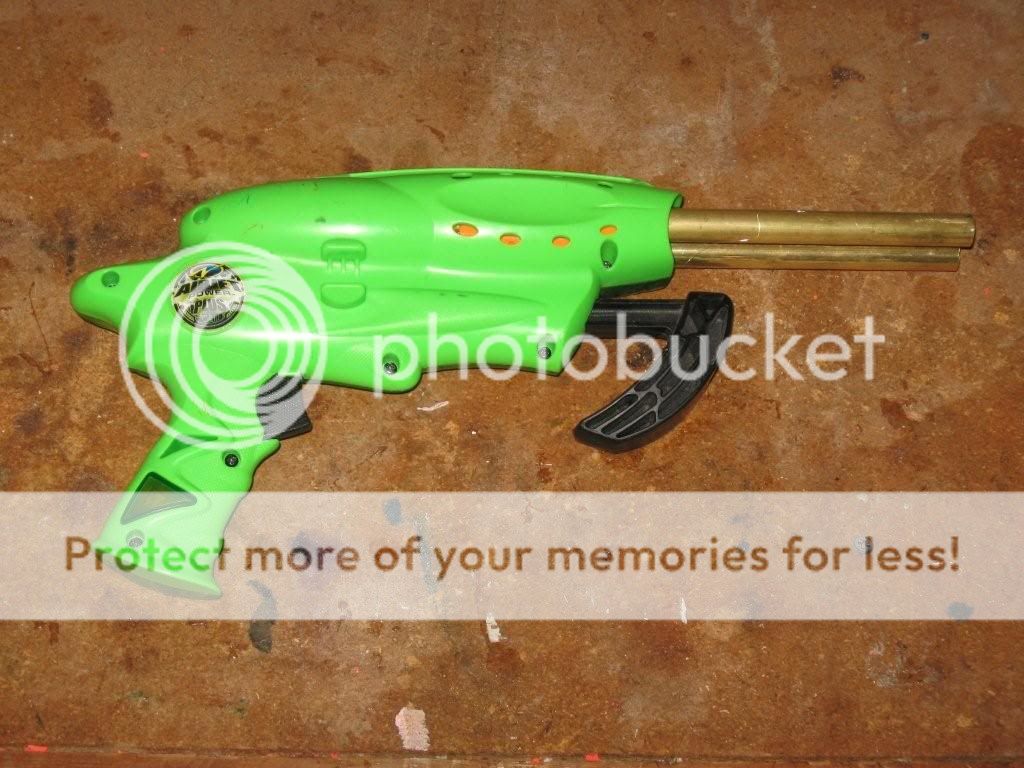

Posted Image

The other side after I cleaned it up a bit.


Questions? Comments?
