The K9 Drop-ins

This Mod is to make the turret removable and act more like a Magazine. (I hate turrets)
Since everyone hates mavs, there should be a couple extra mav turrets floating around
It is simillar to CS's Drop clip but prettier and more stable.http://nerfhaven.com...?showtopic=8367

Preresiquites:

-Nerf Maverick mods:
AR removal
Roulette


Tools used (That I used)
-2 needle-nosed pliers
-straight nail-clippers
-Wire cutters
-Lighter
-Candle
-Mini-screwdriver
-Screwdrivers
-Drill bits
-glue gun & glue

Materials
-Wire coat hanger
-Nerf Maverick

Before:
Posted Image
After:
Posted Image


First, Open the gun and disassemple the turret. the Take this piece, and make lines where to cut, and cut (I used wire cutters) then smooth down the sides (I used a lighter)

Before:
Posted Image
After:
Posted Image


Then, take the other gray piece, trim down the cylinder (I used nail clippers, screwdriver and pliers)

Before:
Posted Image

After:
Posted Image

Reassemble the turret without the gray pieces
Posted Image

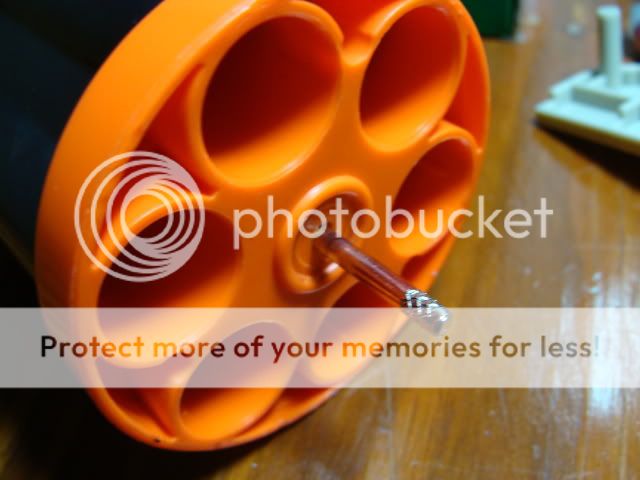

Take this rod, glue into the turret like so:
Posted Image
Posted Image

not like this (the turret will not fit):
Posted Image


Now drill holes into the Gray pieces here (I used the candle and mini-screwdriver with the drill bits):
Posted Image
Posted Image
Posted Image

Posted Image
Posted Image

don't post

Edited by k9turrent, 14 December 2008 - 09:10 PM.

  • 0
QUOTE View Post

That's about it. And thanks Angela who helped me with these pictures.. It looks huge in her hands.


HOLY CRAP!

FU ALL

#2 k9turrent

k9turrent

    Member

  • Members
  • 828 posts
  • Location:Brampton, Ontario, Canada

Posted 14 December 2008 - 03:50 PM

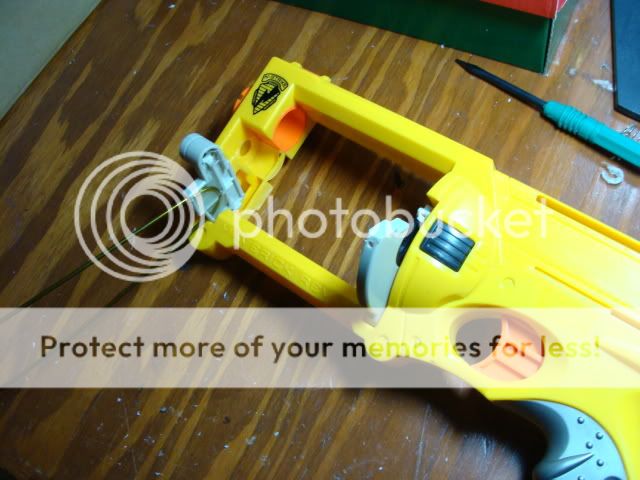

Now take the coat hanger and straighten it and put it into this gray piece, and secure with hot glue (ensure it's flush with the plastic:

Posted Image

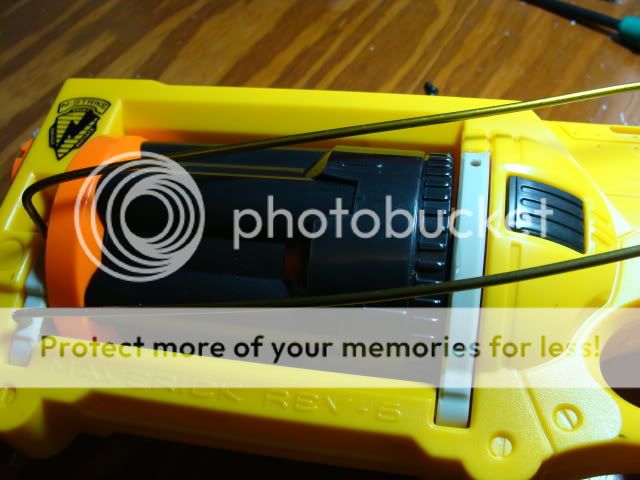

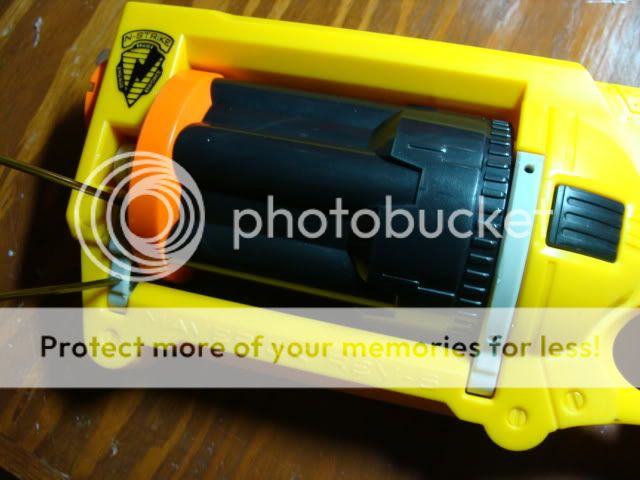

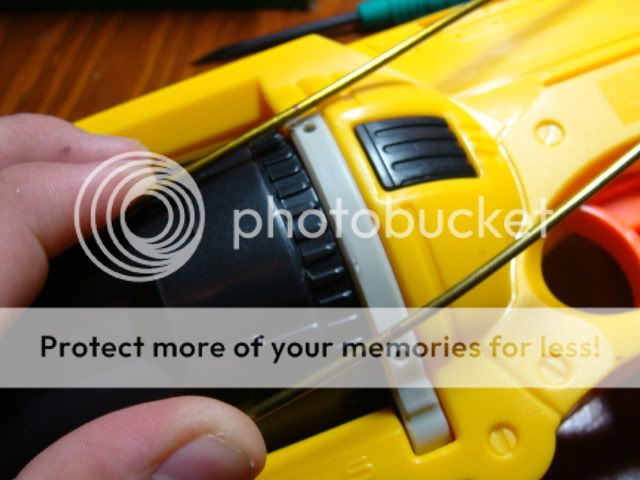

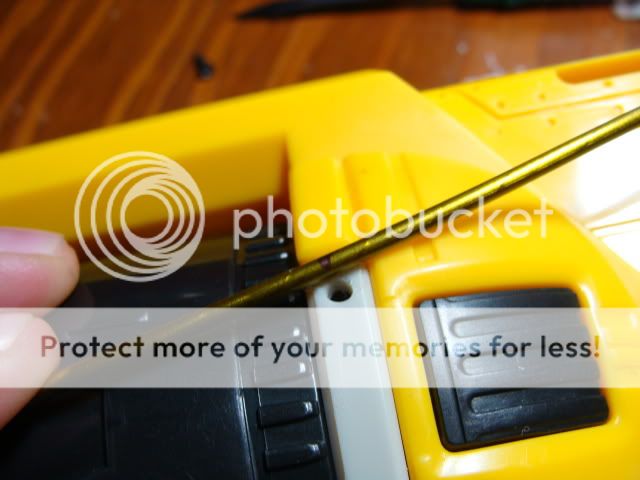

place everything together in the shell and bend the wires to holes on the other gray piece, mark the points to bend them in, with a marker:

Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

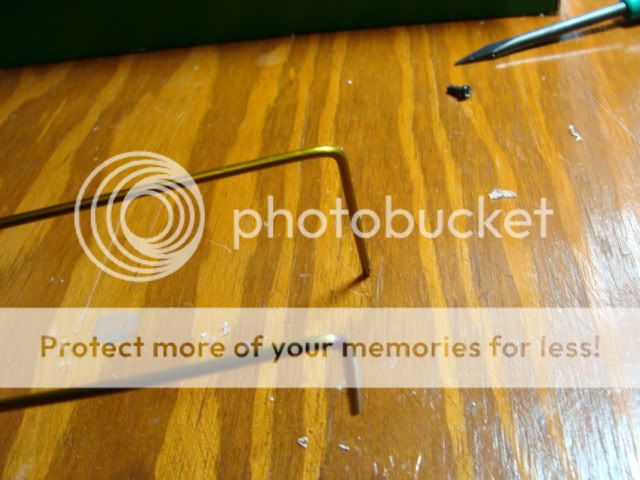

disassemble and bend away. It doesn't have be perfect when you glue it in, the wire will bend after glue Has dried.

Posted Image
Posted Image
Posted Image

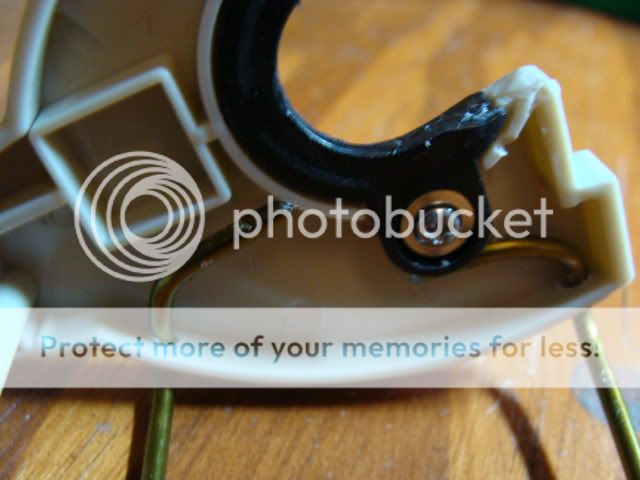

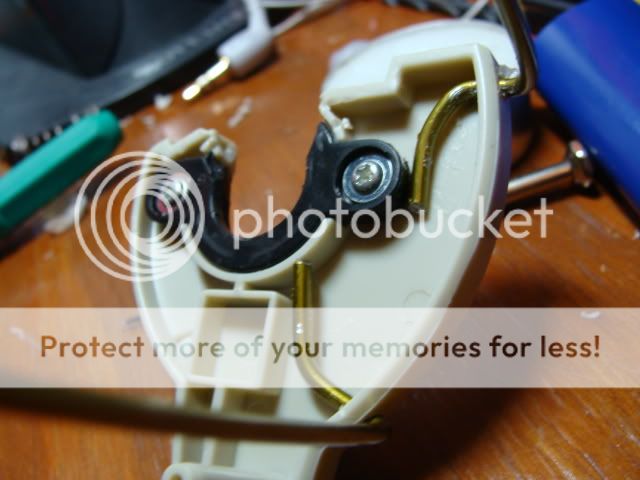

Align the gray pieces and reassemble:

Posted Image

DONE!!!

Time to do actual mod: 30min
Modding, dancing and screwing up: 1.5 hrs

Now the turret will pop out from the rear,

To insert the Turret:

front end in first:
Posted Image
Snap the back into place:
Posted Image



The mod does nothing for range, only for the ability to swap out the turret

Ranges:

The same as normal modded maverick

comments, questions, concerns?
