Single part trigger homemade design


1 reply to this topic

#1 nerfdoge

nerfdoge

    Member

  • FNG1
  • 1 posts
  • Location:Omaha
  • State:Nebraska
  • Country:United States

Posted 29 November 2016 - 10:49 PM

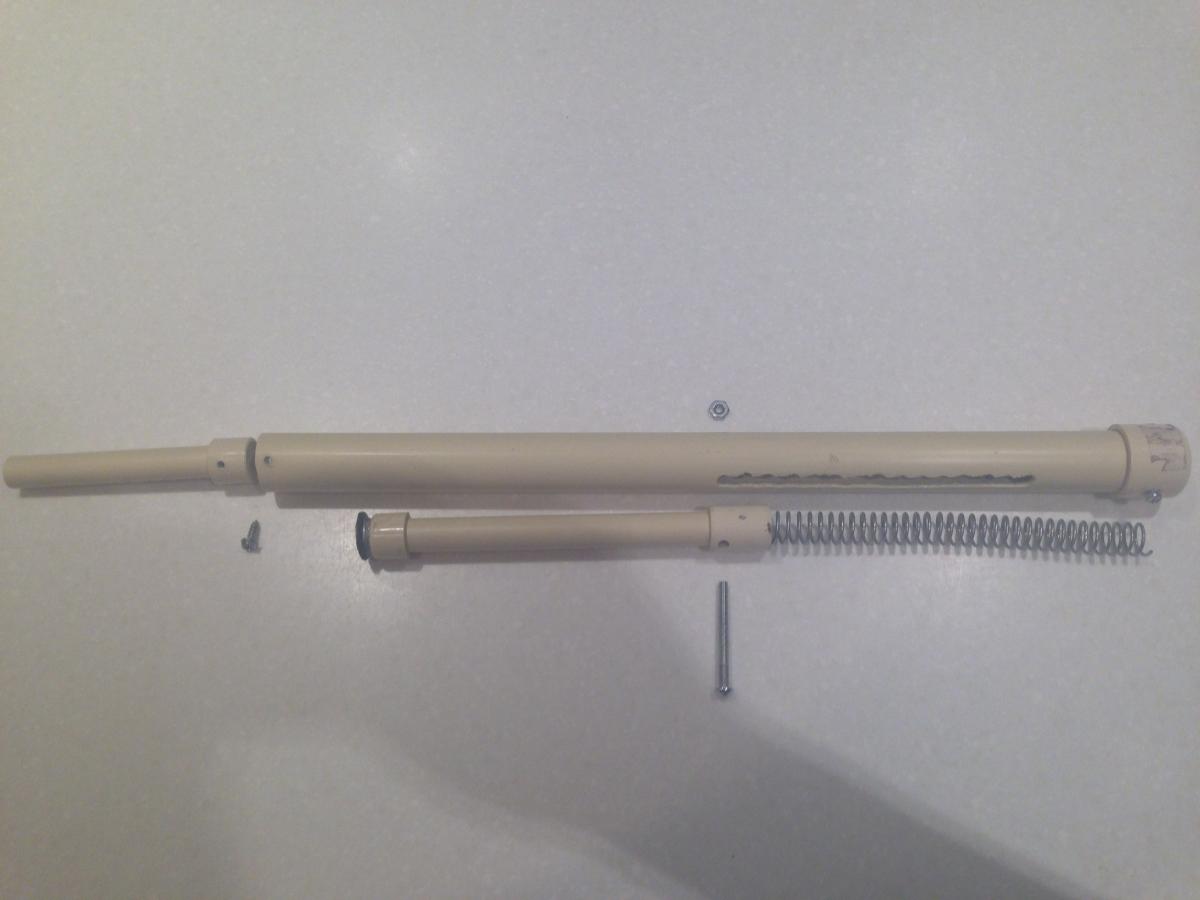

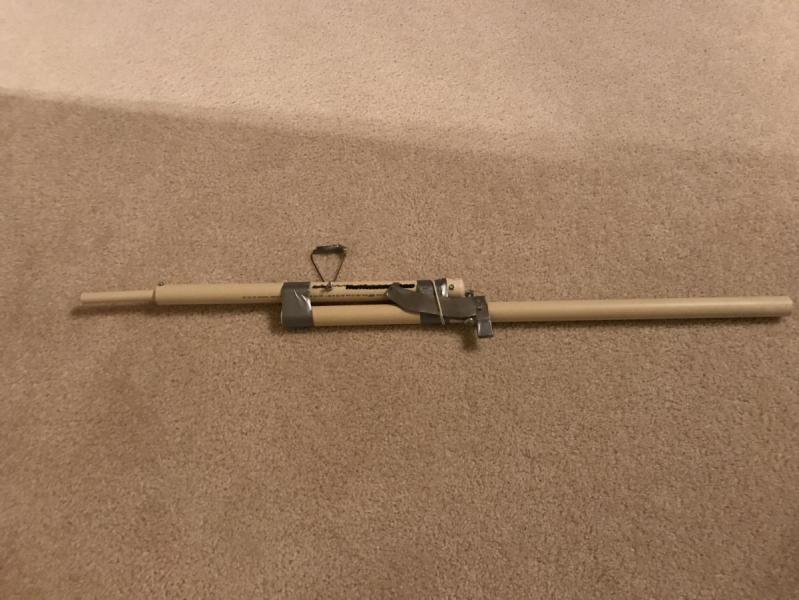

This is my first homemade, After looking at a bunch of others posted here I came up with my own design (I think). It's quite reliable and very simple/easy to make. I haven't got ranges for it yet but i would say it is pretty average in that aspect.






This video should explain how it works.

Attached File  JTCR09331.mov   5.29MB   197 downloads


Edited by Aeromech, 30 November 2016 - 05:12 PM.

  • 0

#2 Aeromech

Aeromech

    Member

  • Moderators
  • 434 posts
  • NerfHaven Supporter
  • Location:Long Island
  • State:New York
  • Country:United States
  • Aeromech on Youtube

Posted 30 November 2016 - 03:15 PM

After watching the video (several) times, I was able to figure out that this is a very simple lever-locking action, where rubber-band-loaded finger gets in the way of the priming bar, though it was very hard to make out. Have someone film you next time, or rest the camera against something so you can better display the product



Good idea mechanically, but please edit your post to include a few more close-up photos to better convey the action to other users. I also took the liberty of adjusting your formatting. Start a new line after each photograph, it makes reading a lot easier, and just looks a great deal less sloppy.



EDIT: Additionally, try smoothing out your slots, you will get not only a smoother prime but potentially better performance.


Edited by Aeromech, 03 December 2016 - 05:16 PM.

  • 0
