Mod Guide - Strongarm REV-6
NIX-122 recently asked me to modify his Strongarm, and I decided to use that for my first entry in the contest. Originally posted here.
Posted Image More after the big drop.

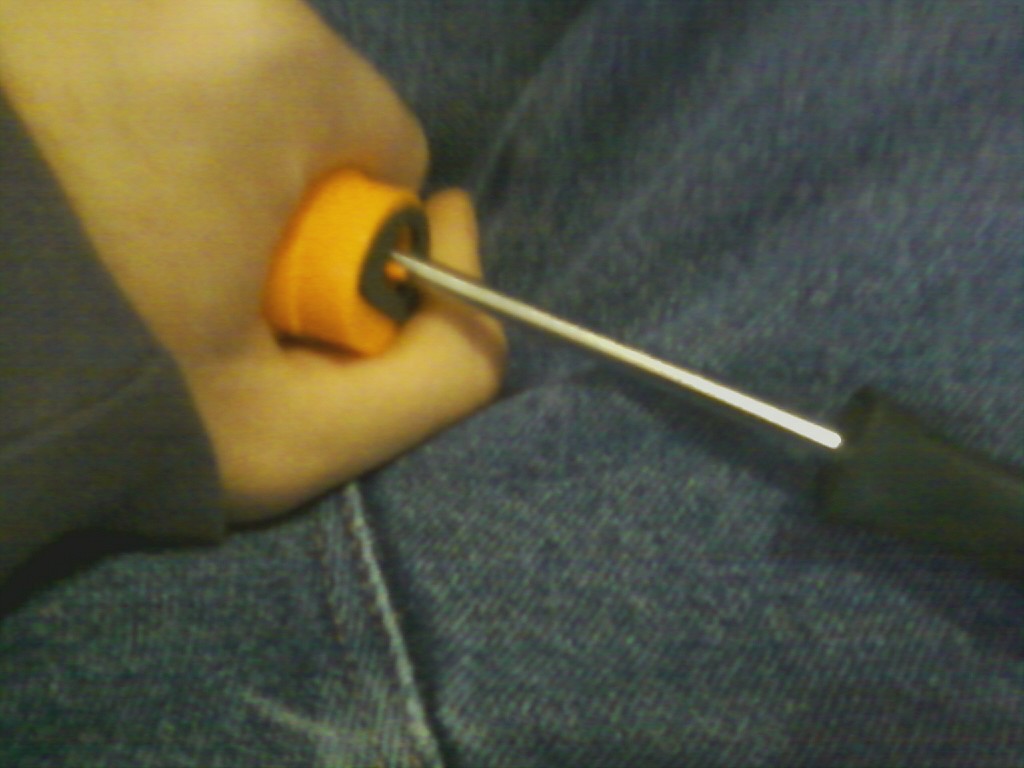

Tools: No. 1-size screwdriver <a href="http://3.bp.blogspot...0425151336.jpg" style="clear: left; float: left; margin-bottom: 1em; margin-right: 1em;">Posted Image








Also, something long, thin, and sturdy.
(I used an HFT screwdriver)
[No Picture]

Harbor Freight & Supply Rotary Tool Set Posted Image









Swiss Army Knife Posted Image









Magnet Posted Image










Materials Strongarm (N-Strike Elite)
Posted Image









Sandpaper Teflon tape (plumbing tape)
Random spring that'll nest around the plunger rod

Steps:
Get a Nerf N-Strike Elite Strongarm. (Pro tip: Use magnet for faster acquisition.) Posted Image
Unscrew the three screws in the priming slide and remove it. Unlike the Maverick, there is no tricky metal pin connecting the two halves of the slide. Instead, the bottom/right half is screwed onto the slide-return spring. Leave that be for now. Posted Image
Posted Image
Posted Image

Now, unscrew the rest of the springs, but leave them in the shell. Time to butterfly the blaster. Posted Image
The cylinder is presenting a problem. Eject it and the problem will be resolved. Posted Image
The blaster should separate nicely into two parts: one
with the guts, and one with the cylinder. Posted Image
The cylinder should easily come out of the shell. Posted Image
The gray part at the front should easily slide off. Posted Image
Now, let's make this bad boy able to handle all micro-size darts and stefans. Posted Image
You will want to use this grinding head if you are using an HFT rotary tool set. (The one that's sticking out.) If you're rich and have an actual Dremel, you figure it out. Posted Image
Load your rotary tool with the bit. Posted Image
Fire it up. Whoops!
Posted Image
Make sure the cord is plugged in. Posted Image
Grind away where I have marked. Posted Image
It should look something like this. Posted Image
Switch over to a sanding drum. Posted Image
Posted Image
Grind out at the inside of the chamber. Posted Image
Do this until an elite/streamline dart'll fit inside. Repeat for the other five chambers. Posted Image
Now, on to the other part of the blaster. Unscrew this screw, the only screw holding the internals inside. Posted Image
The internals pop out easy. Posted Image
Pull the plunger out. Posted Image
Pull the O-ring off. Posted Image
Apply ~4 layers of Teflon (plumbing) tape. Posted Image
Put the O-ring back on.
(No picture, but do you really need one for this step?)

Next, wind your spare spring around the plunger.
Posted Image Time to mutilate the air restrictor!

Grab your long skinny tool and use it to ream the ar out.
Posted Image
Posted Image Oops! Need more leverage!
Posted Image
And, crunch! You may need to repeat if you have a stubborn air restrictor.
Posted Image
Put the plunger back in. Posted Image
Put the internals back into the shell. Posted Image
Put the screw back in. Posted Image
Put the gun back together. Posted Image
Viola! Rear loading Strongarm! Posted Image
Bonus: Can feed streamlines and stefans!

Warning: this mod makes it extra powerful, so exercise caution when using it.

I did not do any scientific measurements, but it does shoot much harder, and probably much further with good darts.
(The sharpieing was done by my friend.)

The only aesthetic change is the fact that it is rear-loading.
