I've seen many attempts at creating an under barrel grenade launcher. Well my design starts with a story, I was having one of those ice cream push ups, and when I saw the pushy-thingy I thought "That would fit perfectly in 1-1/2" PVC" So I got home and it fit, I looked up at what size PVC "Ballistic Balls" fit best in. 1-1/2" PVC! So from there one I sacrificed a Strike-Fire and got the spring out since I don't wanna order any [k26] springs for now I put the Strike-Fire spring in. Basically I've got about 6 inches of PVC with a custom fit end cap in the end with a hole in it. For the plunger head that's the push-pop pushy-thingy. By screw the plunger head is attached to a dowel attached to a t-connecter. The t-connecter is outside the whole assembly and when you pull back it primes the launcher. Since I'm too lazy to make a trigger for now I'll just have a removable pin that goes in front of the plunger head.
Questions? Comments? Flames?
P.S. Pictures will be posting in the next few hours.

EDIT I got a longsrike spring in, but the screw popped out so gotta glue it in.
EDIT If this design doesn't work I'll make an actual air seal

Edited by nimane9, 22 May 2011 - 10:34 PM.

  • 0




#2 Y-Brik

Y-Brik

    Member

  • Members
  • 199 posts
  • Location:Elk Grove, IL
  • State:Illinois
  • Country:United States

Posted 22 May 2011 - 09:28 PM

Cool story bro. FYI, we like pics over a wall of text.
EDIT: missed the 'PS'

Edited by Y-Brik, 22 May 2011 - 09:29 PM.

  • 0

As I said I have not not alot of testes yet but I will be once I finish the mod.

Why I am boycotting Hasbro

#3 andtheherois

andtheherois

    Member

  • Banned
  • 821 posts
  • Location:North Brunswick
  • State:New Jersey
  • Country:United States

Posted 22 May 2011 - 10:15 PM

So basically you pull back the primin bar then the plunger head pushes the ball forward?
The YooToobz
Photobucket

Winning rounds is rewarding, deal with it. We don't play fucking patty cake over here.


#4 nimane9

nimane9

    Member

  • Members
  • 50 posts
  • Location:Northern California
  • State:California
  • Country:United States
  • u/nimane9 on Reddit

Posted 22 May 2011 - 10:30 PM

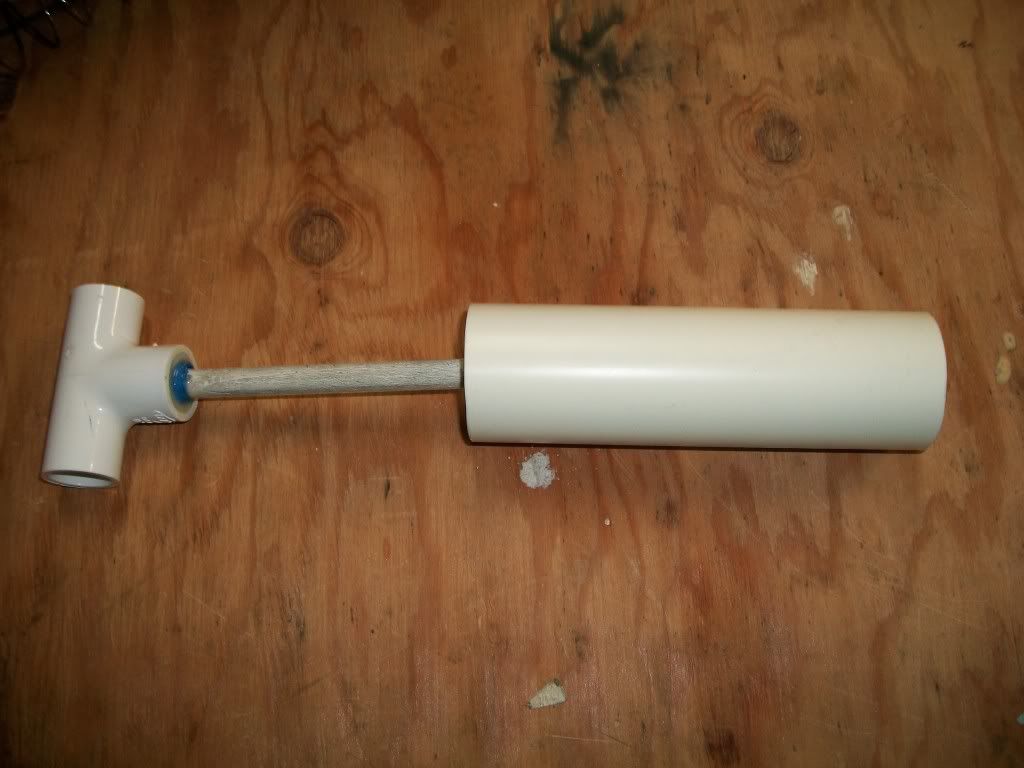

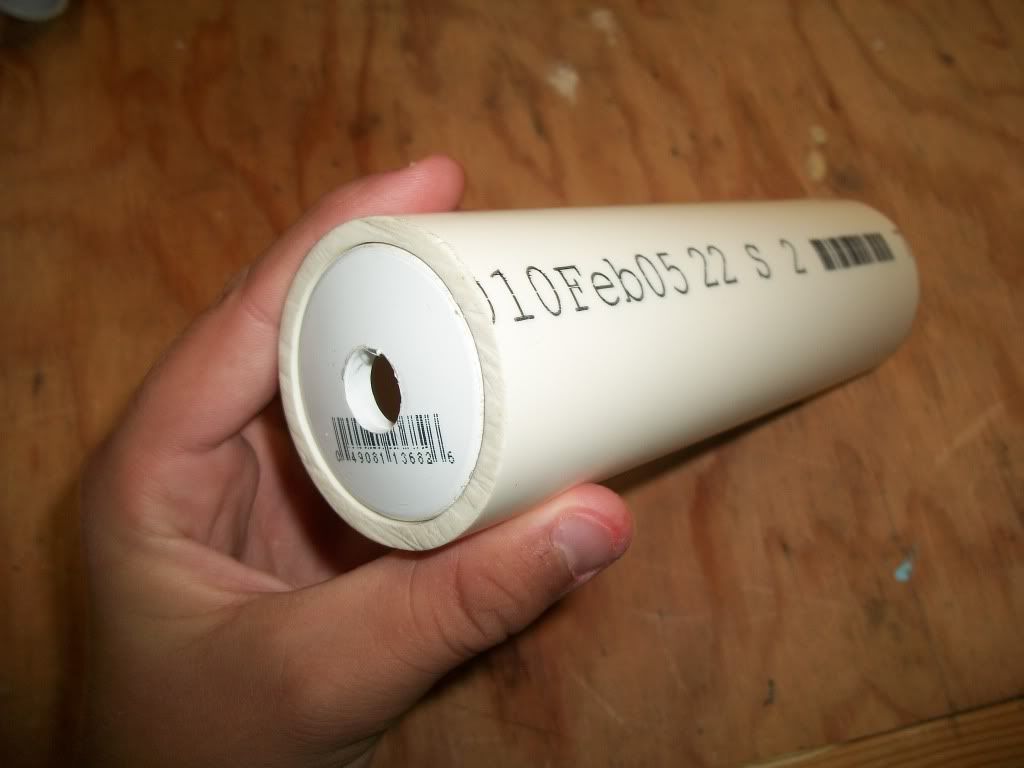

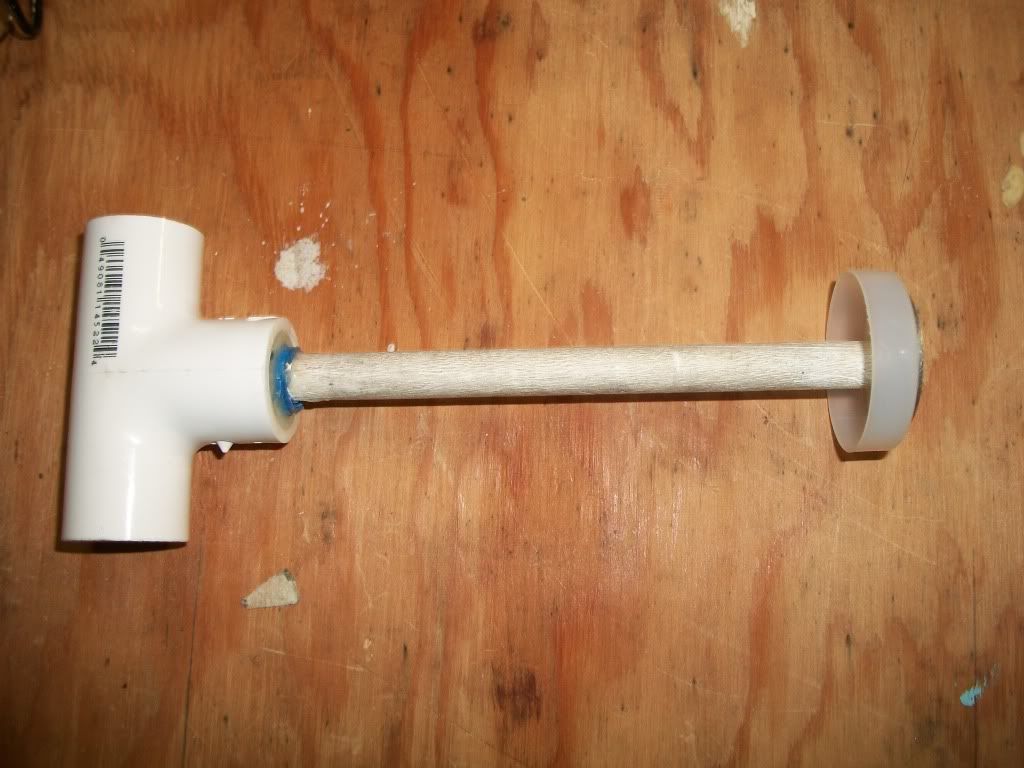

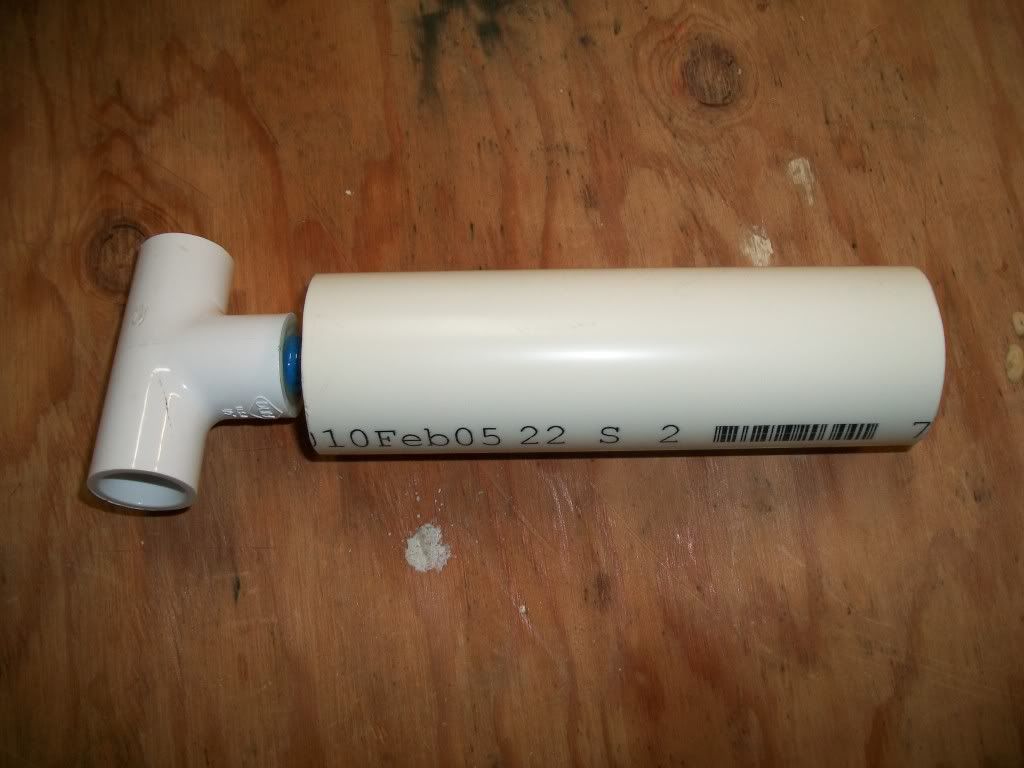

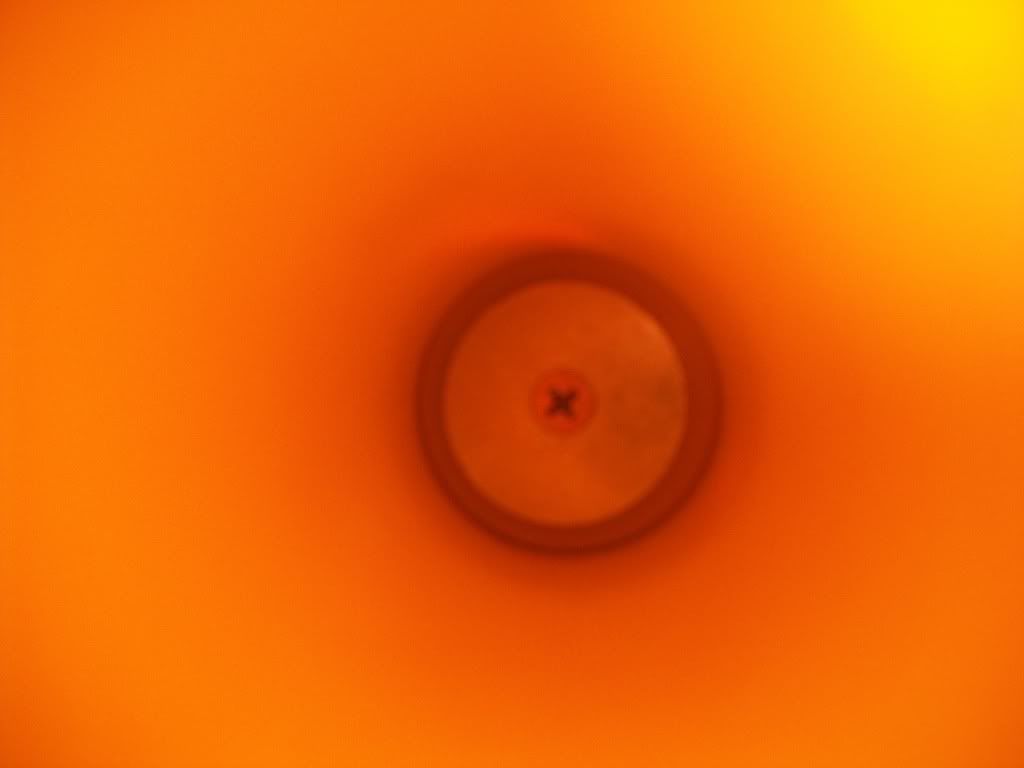

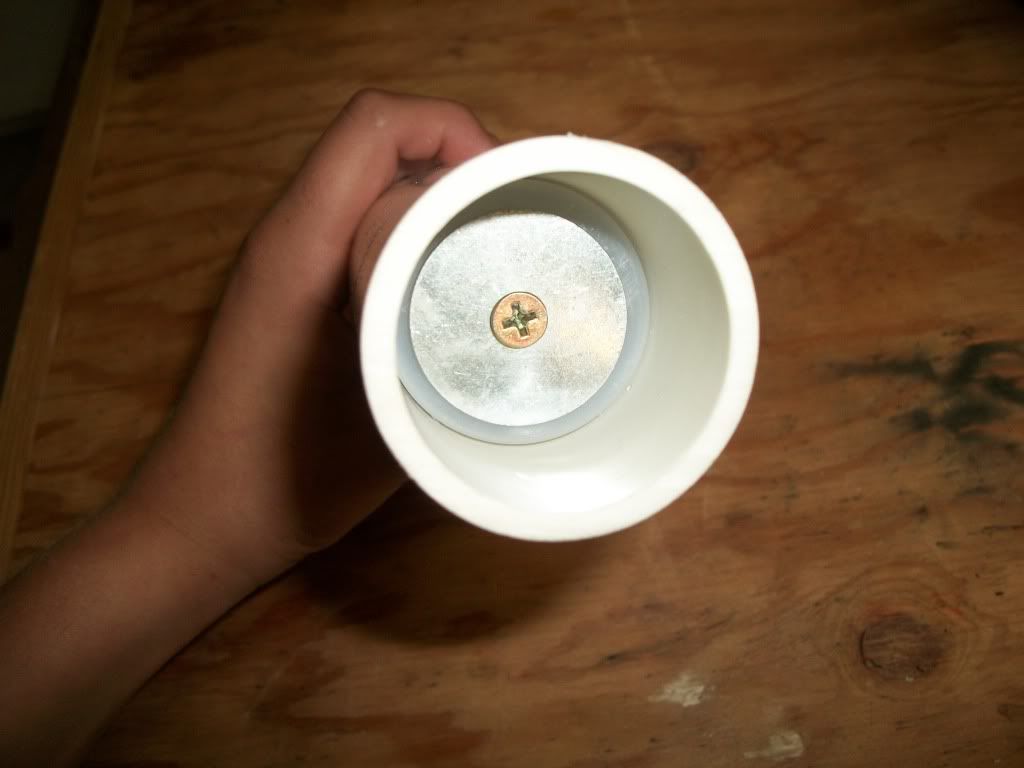

Posted Image
