The Urukai Crossbow can achieve 100+ ranges with very easy modifications. However, with most modifications of this blaster, the rate of fire is rather abysmal. The aim of this modification is to add a breach but maintain the 100'+ ranges this blaster can achieve.

First, ope it up
Posted Image
It's so nice and simple.

Insert a piece of thin wall pvc into the front part of the plunger assembly and secure it. (I did this with a bit of E-tape) This will reduce the dead space inside.
Posted Image

Also, put in a dart stop at the back end.

Now for the breach/barrel.
Posted Image

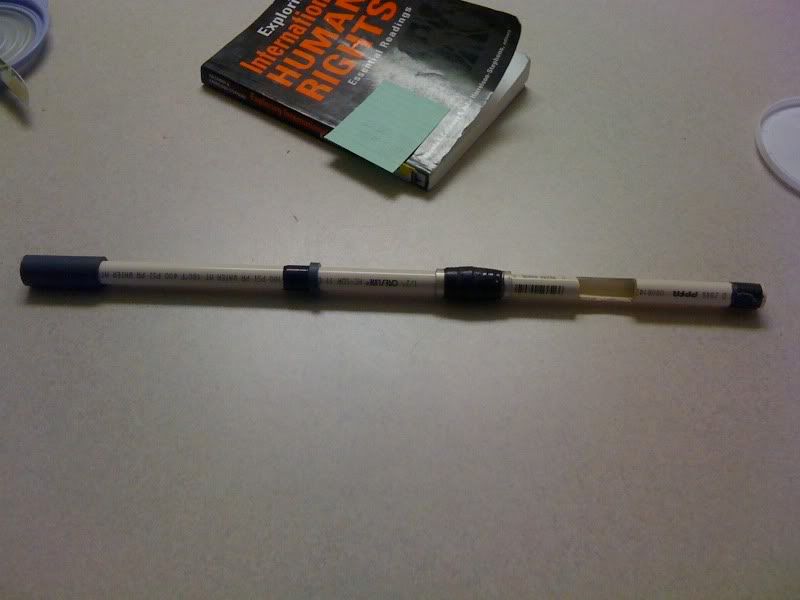

Take your barrel material (i chose CPVC, 18 inches) and use another pipe that is tight around the barrel material and place 1.5 inches of around the barrel. Now, cut a notch near the back where you can easily insert a dart. tape off the back with a bit of e-tape (as a dart stop).

Now, take your barrel and fasten that smaller section of pipe and nest it tightly on the outer part of the front plunger assembly.
Posted Image

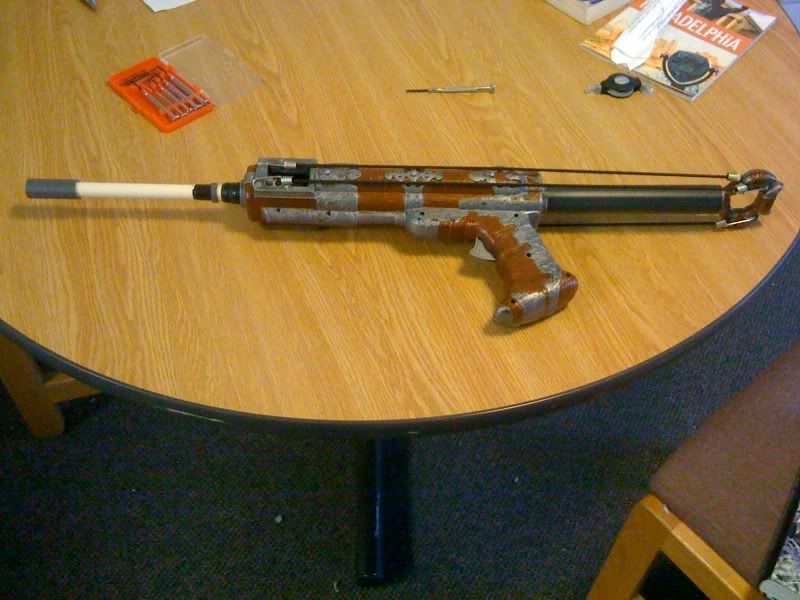

Now, put the gun back together, including four bungies, and you are done.
Posted Image

Some close ups of the breach: Open
Posted Image

Closed
Posted Image

Thanks for reading!

Video

Edited by koree, 28 February 2010 - 10:58 AM.

  • 0

#2 canuck

canuck

    Member

  • Members
  • 83 posts
  • Location:Vancouver/New Jersey
  • State:British Columbia
  • Country:Canada

Posted 25 February 2010 - 02:39 PM

I've never seen or heard of the urukai crossbow. Where did you find it, and what company makes it?
  • 0
We don't have military tactics or specialized training. We're fucking kids playing with plastic guns trying to tag each other.
-nerfer9

#3 Ice Nine

Ice Nine

    Prince Dangus

  • Administrators
  • 1,460 posts
  • Location:West LA
  • State:California
  • Country:United States

Posted 25 February 2010 - 02:43 PM

I remember you mentioning this in #nerfhaven recently. I seem to recall someone else with similar plans for theirs, but dang this is a good job.

I need to finish mine as soon as possible; it's literally some goop and some dremel work away from completion. I really do love these things.
  • 0

Unholy Three: DUPLUM SCRTA, DUPLUM PROBLEMA (2009)

But Zeke guns tend to be like proofs by contradiction

Theoretically solid but actually non-constructive

Rnbw Cln


#4 Eh Watt

Eh Watt

    Member

  • Members
  • 265 posts
  • Location:St. Paul, MN

Posted 25 February 2010 - 07:43 PM

Hey, nice job Koree! I assume we will be seeing this at the next war?
  • 0
John Hancock

#5 Daniel Beaver

Daniel Beaver

    HQRSE CQCK

  • Moderators
  • 2,071 posts
  • NerfHaven Subscription Supporter
  • Location:Minneapolis
  • State:Minnesota
  • Country:United States

Posted 25 February 2010 - 09:55 PM

I've never seen or heard of the urukai crossbow. Where did you find it, and what company makes it?

They are a promotional blaster that was released alongside the Lord of the Rings trilogy. They are long since discontinued, and are fairly rare.

Koree: glad you got around to posting this. Hopefully I'll see it on Saturday.
  • 0

#6 BustaNinja

BustaNinja

    Member

  • Members
  • 1,916 posts
  • Location:St. Paul, Minnesota

Posted 25 February 2010 - 10:09 PM

Cool gun, but the cool thing about the design is that you can just shove a barrel all the way down the plunger tube, to make a relatively short primary. With the breach, you have created a crazy amount of dead space.

Still awesome though Koree. I miss you. So where are we gonna Nerf this saturday?
  • 0
Me: Yeah. he beat a hooker
Venom: Haven't we all?

#7 koree

koree

    Member

  • Members
  • 311 posts
  • NerfHaven Supporter
  • Location:Philadelphia
  • State:Pennsylvania
  • Country:United States

Posted 26 February 2010 - 03:11 AM

Cool gun, but the cool thing about the design is that you can just shove a barrel all the way down the plunger tube, to make a relatively short primary. With the breach, you have created a crazy amount of dead space.

Still awesome though Koree. I miss you. So where are we gonna Nerf this saturday?



Wrong.

The breach goes all the way back into the gun. Allowing only 2 inches or so of cpvc dead space. I'll see you tomorrow. :)

Edited by koree, 26 February 2010 - 03:13 AM.

  • 0

#8 hawkshot

hawkshot

    Member

  • Members
  • 200 posts

Posted 26 February 2010 - 11:41 AM

So the breech itself moves? Very cool, good job.
  • 0
Call me Hawk.


Hawkshot, one of the founding FL Nerfers.

#9 Blue

Blue

    Member

  • Members
  • 2,222 posts

Posted 26 February 2010 - 03:08 PM

From what I understand, the cpvc slot you see in the "open" position slides back all the way to the back of the gun, like any other normal breach. This would have only a little bit more deadspace than just a simple barrel.
  • 0

#10 moosa

moosa

    Member

  • Members
  • 243 posts
  • Location:Bangor, ME

Posted 27 February 2010 - 05:58 AM

Koree, I have that same set of screwdrivers.
