The Rogue "sereph"

A Modular Primary straight from the Rogue Foundry

35 replies to this topic

#1 NerfRogue83

NerfRogue83

    Member

  • Members
  • 646 posts
  • Location:Tampa Florida

Posted 19 May 2009 - 02:10 PM

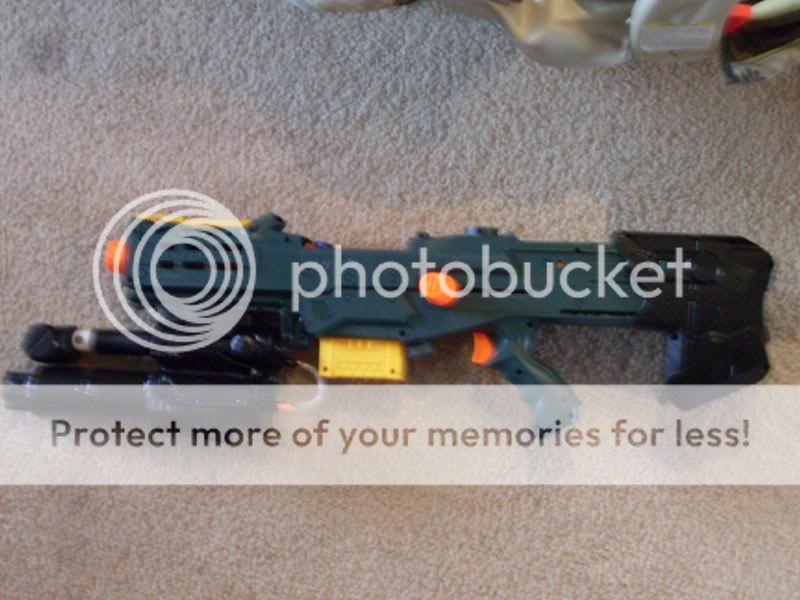

Ok, here is my contest submission, the "Sereph"(Sereph-A high ranking warrior Angel.). My goal in planning this project was to: (1.) Have a primary with decent range and good R.O.F (2.) I wanted the primary to be able to easily accept modular additions, and (3.) I wanted the secondary additions to be able to be used on other blasters that have the ability. I would like to first state that I do not claim to be the "first person" to use this design, but I do consider this blaster unique in its own right. Without further delay, I give you the "Sereph"!
Posted Image

Materials required:

A Longshot
A LS scope
A Titan tank and pump
A Titan pressure gauge
A LSFG cocking handle set
A cut-down AR-15 spring(or other spring of your choice)
1' of 1/2" pvc
3' of 1/2 cpvc
Two 1 1/2" pvc couplers
One 12" piece of 19/32" Brass
Two 12" pieces of 9/16" Brass
One 12" piece of 17/32" Brass
One 12" piece of 1/2" Brass
6" of clear tubing
1 can of spray expanding foam
Plastic epoxy
Plumbers putty
Plumbers Goop
Hotglue gun and glue
electrical tape
Teflon tape


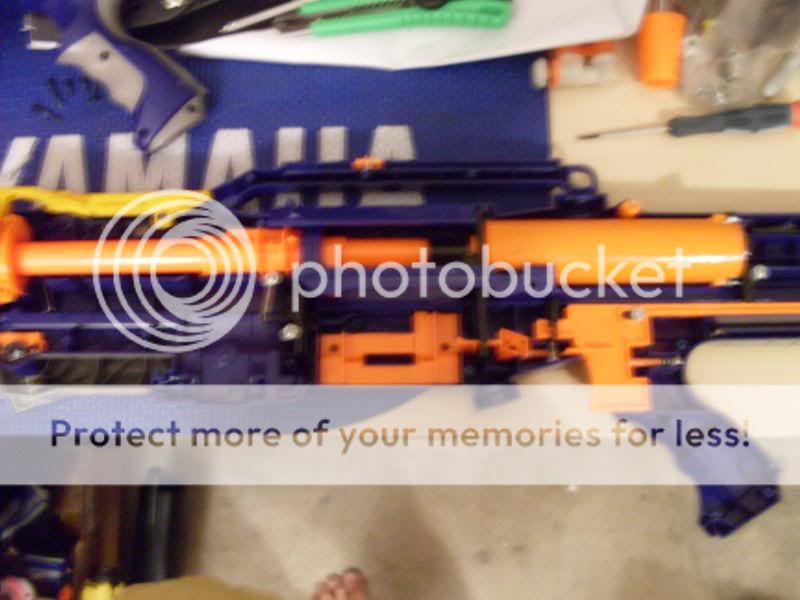

Alright, lets start with the LS first. Open that baby up, it looks like this--full of un-needed crap!
Posted Image

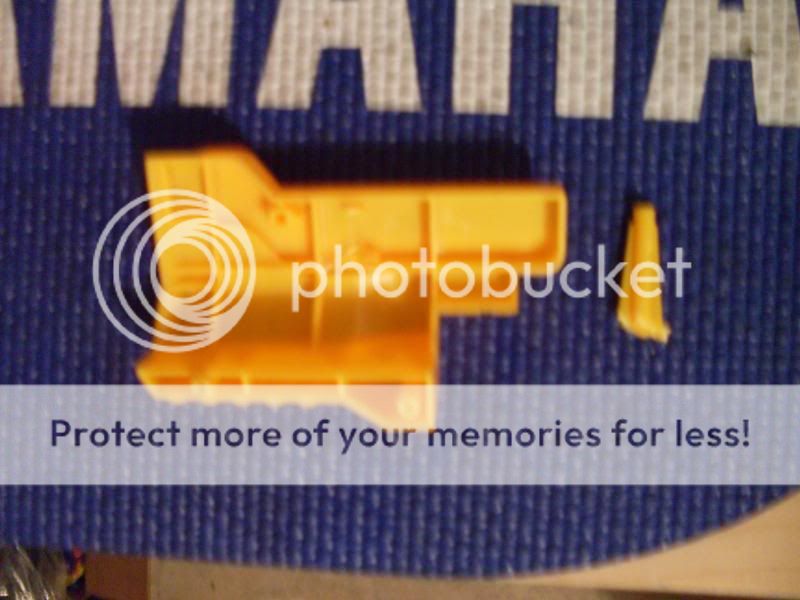

I decided to remove all the locks and priming indicater, as they are in my opinion useless and suck.

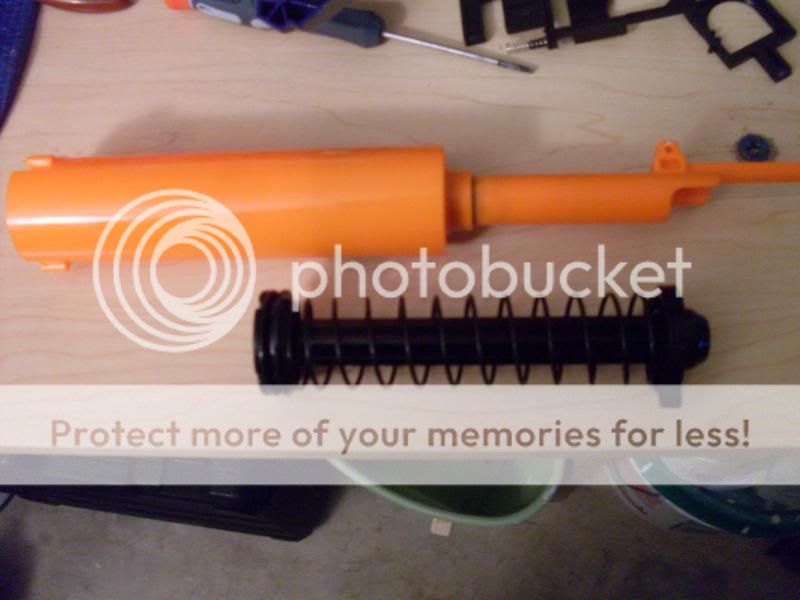

Next I remove the plunger/boltsled assembly, followed by pulling the plunger out of the tube.
Posted Image

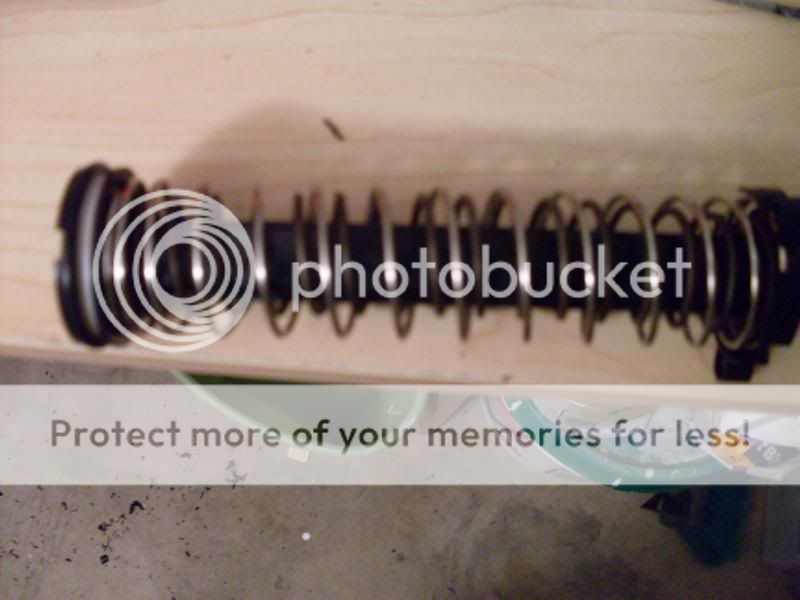

I used a cut-down AR-15 spring under the stock LS spring, as well as a bit of Teflon tape under the O-ring on the plunger head for a better seal. Before putting the plunger back in the tube make sure to add some lube.
Posted Image

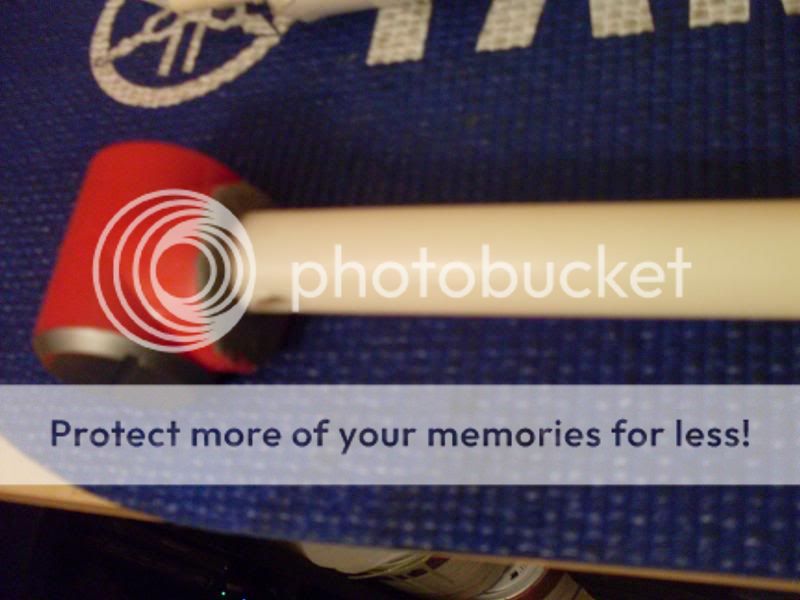

At this time I construct my Brass Breech(Hereticorp's modified Angel Breech), but I won't bother going in depth with that because its been posted a thousand times. Here it is though...
Posted Image
Do NOT forget to add a spring or two to the catch or your blaster will not stay primed. Writing pen springs work great.
Posted Image

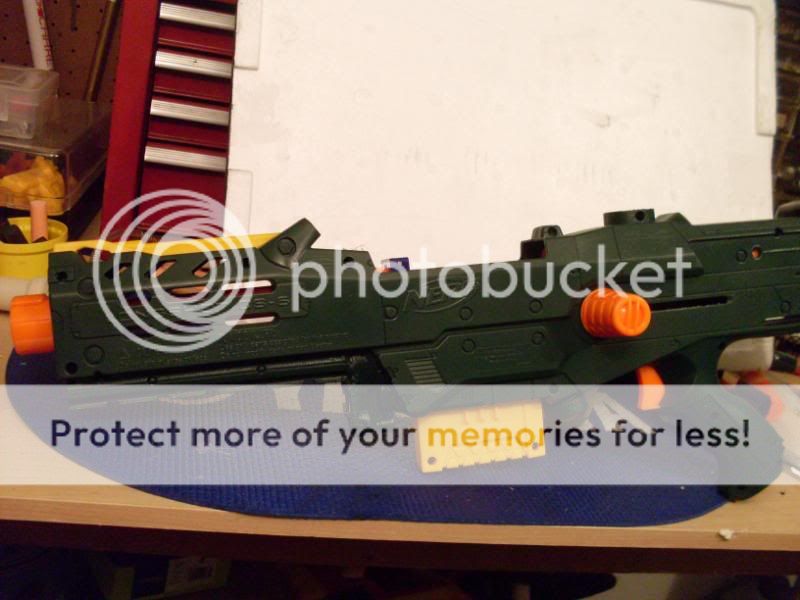

Now that the internals are taken care of, lets show the shell some attention. I used the standard 3" pieces of 1/2 pvc in the stock to prevent it from collapsing, the tripod legs and mounting location were removed, and the top tactical rail was removed for relocation.....
Posted Image
Posted Image

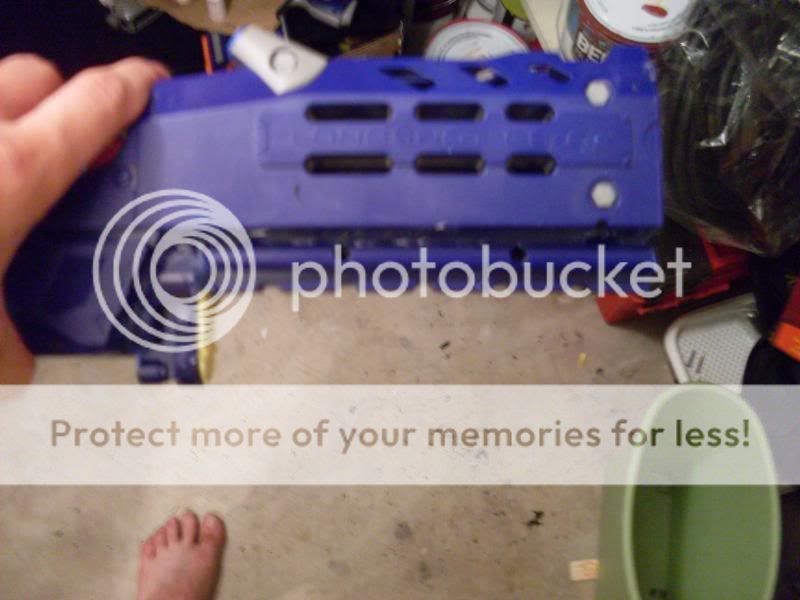

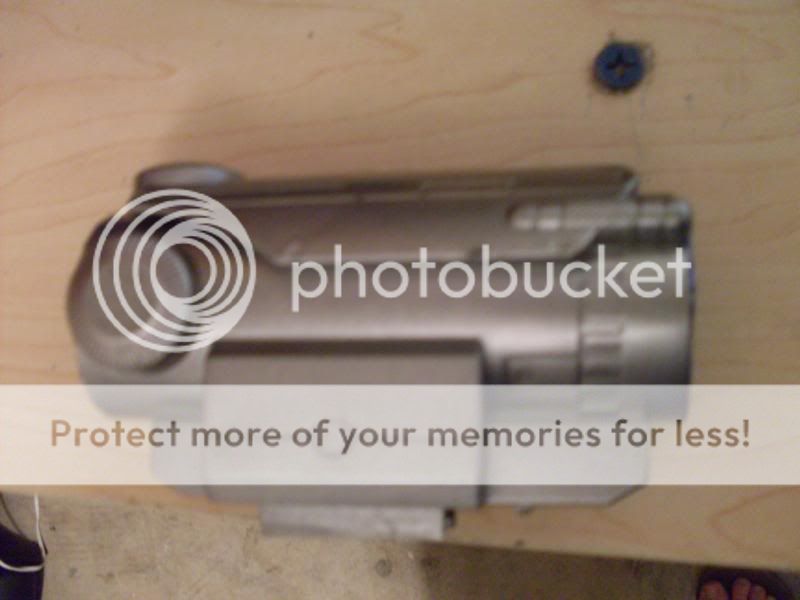

The rail was shortened by approx. 1", then epoxyed to the bottom of the LS. Make certain that when the rail in put into position, the rail halves line up to the LS shell halves.
Posted Image
If you choose to, the shell can now be sanded and painted. Next we will adress the modular additions.
Posted Image
Posted Image

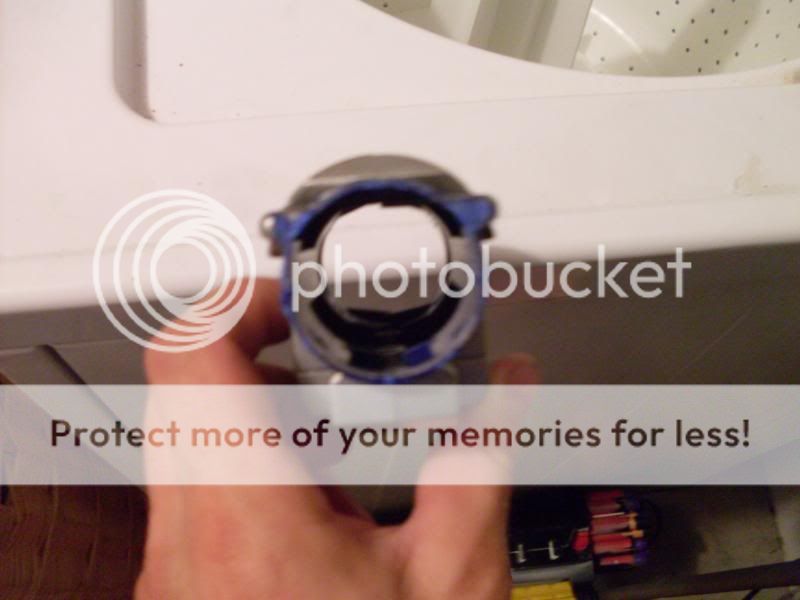

To start, take your LS scope and gut+cut it so that the shell looks like this......
Posted Image
Posted Image
The LS scope will serve as the housing for the Titan's pump, as well as the attachement point for it's tank. Take your LSFG priming handle and remove the screw posts in both halves like so...
Posted Image
Now that we have prepared the main componets,lets build this thing! Slide the Titan pump through the LS scope, facing forward and epoxy it into place. Next, epoxy the Titans tank underneath, making sure to keeps things nice and straight. Lastly, epoxy your priming handles to the sides of the tank, filling the small gap in the middle with Plumbers putty. The handles give the tank a very nice feeling grip. It should look like this...
Posted Image
  • 0
IRC chat: louiec3-- he offered $500 for someone to build a bomb he could send to his ex wife
Rknight-- wow......N9---your dad is in trouble now!


#2 NerfRogue83

NerfRogue83

    Member

  • Members
  • 646 posts
  • Location:Tampa Florida

Posted 19 May 2009 - 02:11 PM

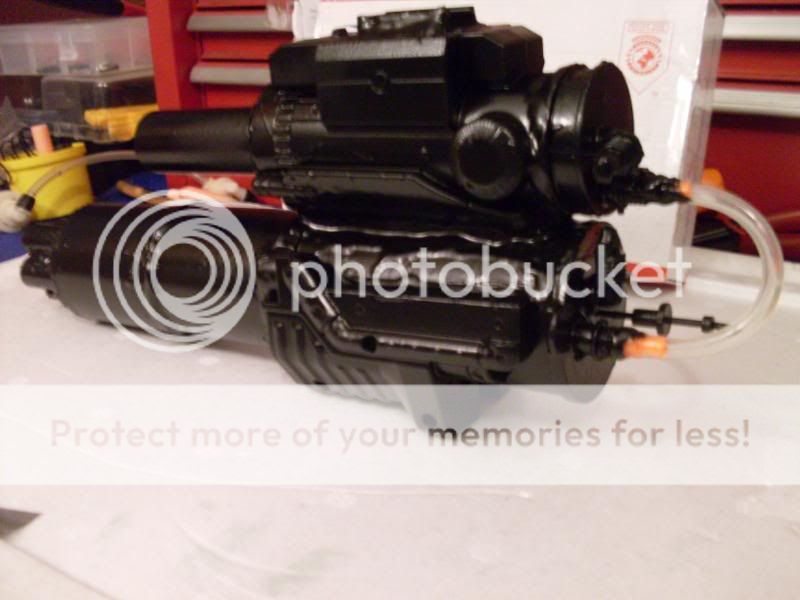

Posted Image

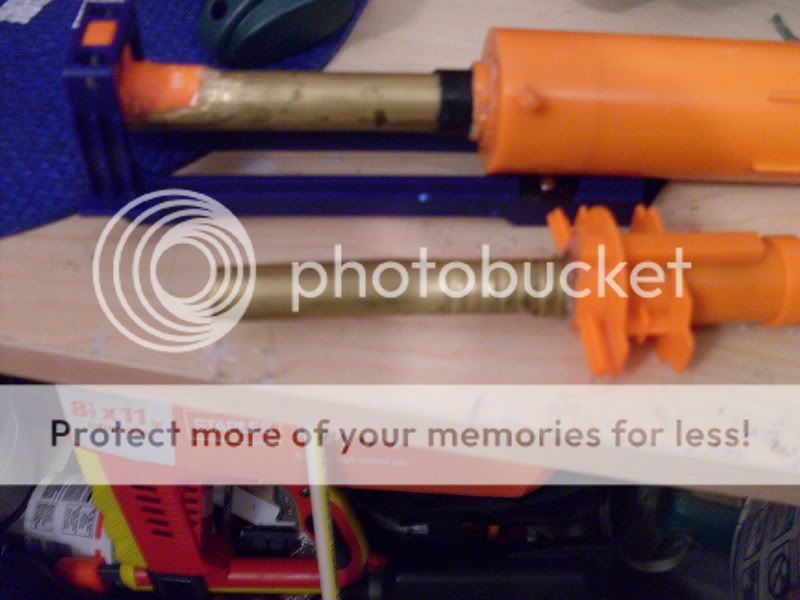

Remember to connect your tubing, and use Plumbers Goop to seal off the extra fitting on the Titans tank that was formerly used for the pressure gauge. Also attach a key-ring and wire trigger pull to the firing pin on the tank. Ok, now lets build the front. Cut five 5.5" segments of 1/2 cpvc. Glue them together in a start sort of pattern. Now fix them into place inside one of your 1 1/2" pvc couplers, making sure to leave about 1" of space between the bottom of the barrels and the top of the Titans tank---room for the air to travel to all barrels
Posted Image
Posted Image

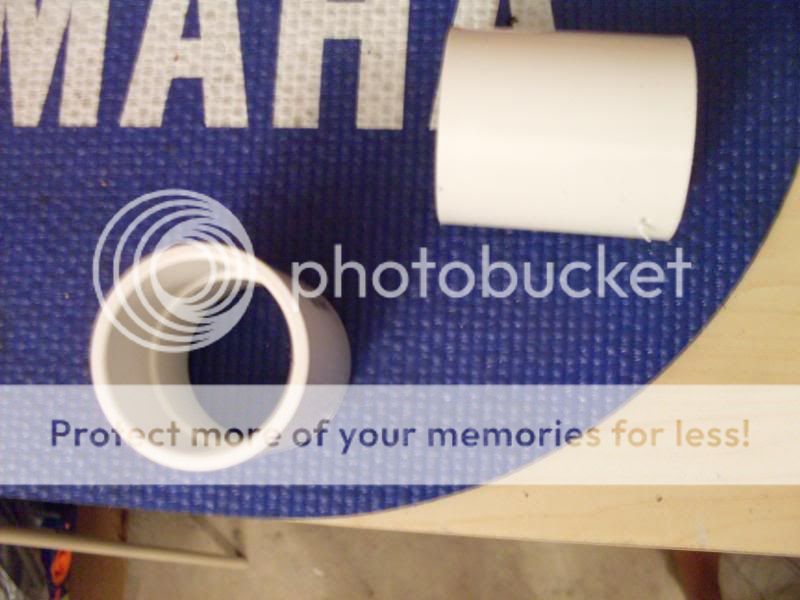

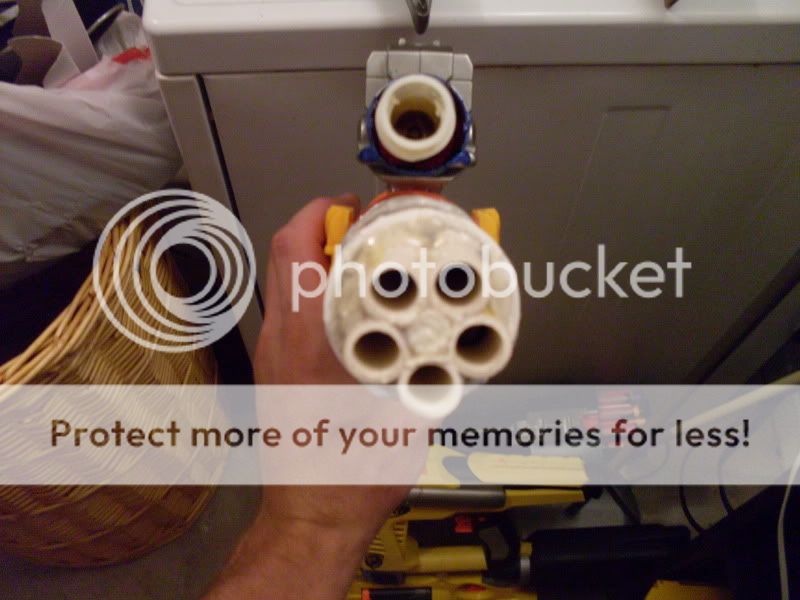

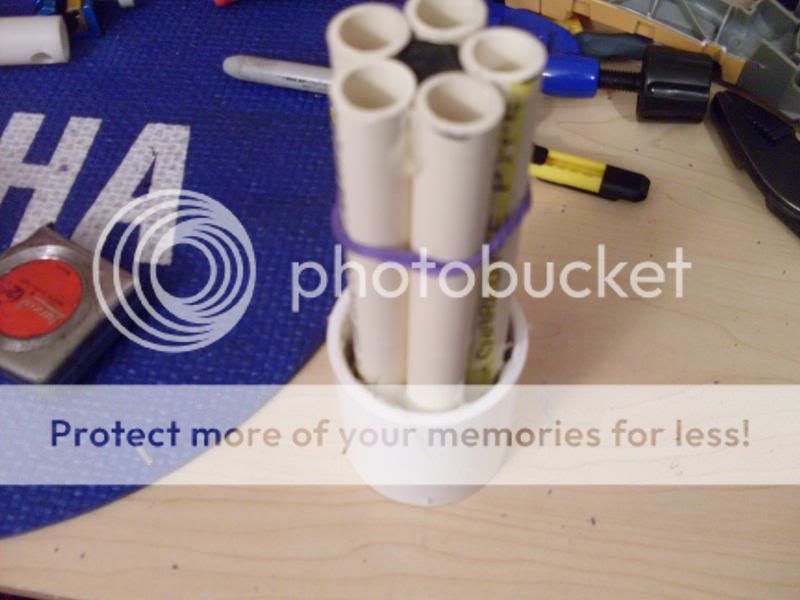

Epoxy the other coupler over the barrels as well and fill in all the space between the outside of the barrels and the inside of the couplers with the spray expanding foam. We don't like dead space, it's bad. Use Plumbers Goops at the top and bottom of the barrels to make sure things stay air tight, then epoxy the finished barrel assembly to the Titans tank. Use Goop around the base of the coupler as well for leak prevention.
Posted Image
For the pump handle, I used the Titans pressure gauge. Gut it, and dill a hole through what used to be the face of the gauge big enough for the pump tube to go in. Epoxy it, and fill in any gaps with Putty...
Posted Image
Posted Image
I decided to plug the pump as well, but its not needed. Add paint if you wish, and you should have this---
Posted Image
Posted Image
Posted Image

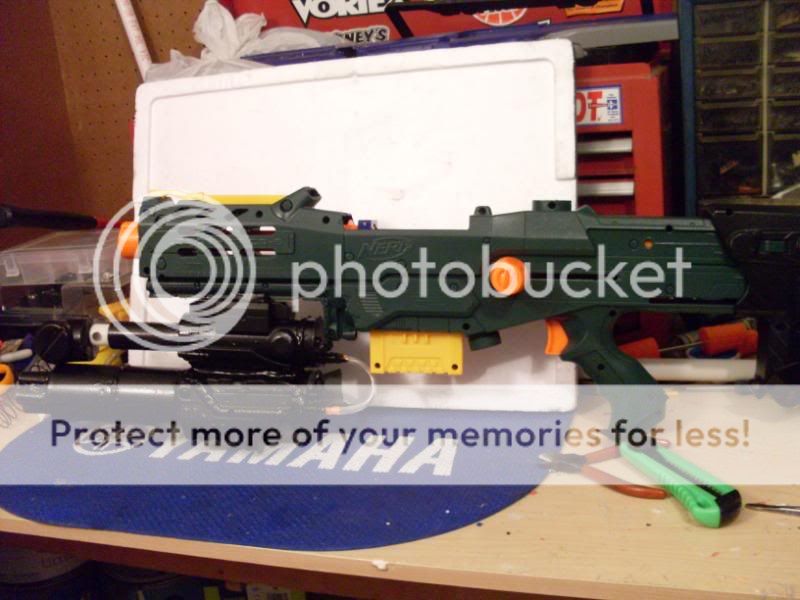

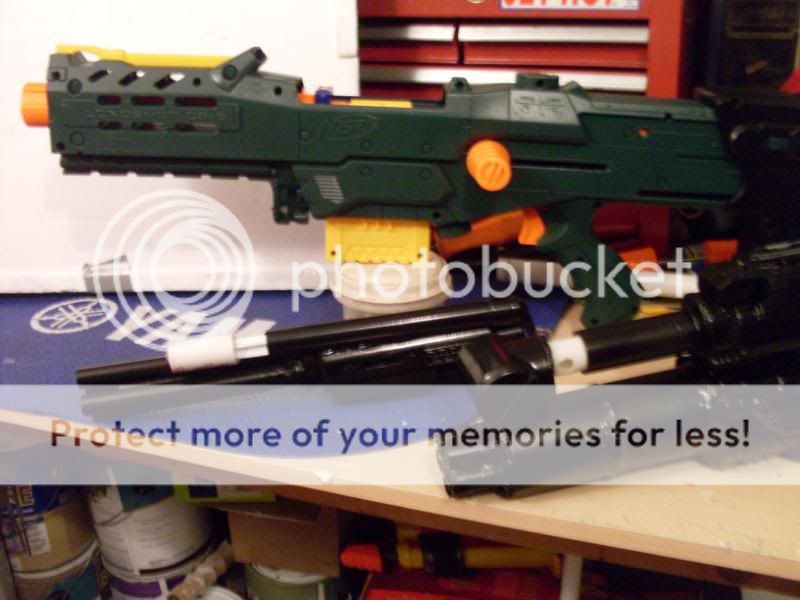

Now introduce the two parts of the "Sereph" together, and you get this: A modular Primary with several options.
Posted Image
Posted Image
With my "RogueScope" equipped...
Posted Image

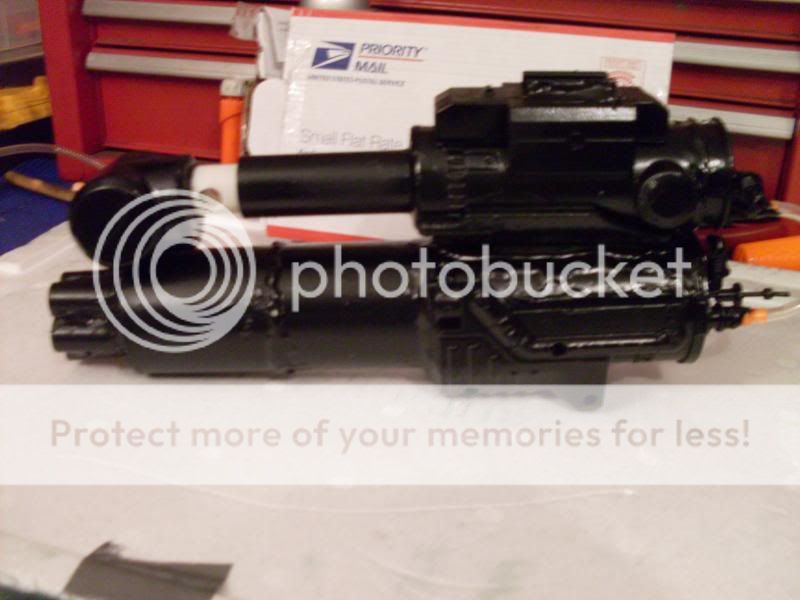

The final pic:----The Rogue "Sereph" Modular battle System.
Posted Image

Thank you for looking, flames are expected, comments are appreciated.--Rogue.
