Senor Wences

+Bow 3K modular integration

37 replies to this topic

#1 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,761 posts

Posted 14 January 2009 - 02:23 PM

VACC commissioned me to figure out how to make a modular 3K integration that could be attached to the integration rails on the +Bow. With the Airtech 3000 he provided I took a ton of measurements and worked out how best to reduce the over-all size of the internals in order to minimize it, without removing the auto-advancing turret mechanism.
The piece on the pump that advances the turret had to be relocated. The length of its stroke was different from that of the pump, so tracks had to be cut in the side of the shell and in the pump slide.
The pump is allowed to slide forward and back. At either end of its stroke, the pump pushes the advancing piece to each end of its track. The pump slide is further stabilized by the black lip pieces added to the edges of the slide arms.
The unit can be attached to a +Bow using threaded rods, or quick-release pins.
The trigger rod of the 3K will be attached to the lower half of this double trigger that replaces the normal +Bow trigger.
The finished unit with 4-inch barrels and a bungee'd ramrod. Total length is 10 inches.
This took three months of off-and-on tinkering to complete.

And before anyone asks, no I do not want to make another one of these. And no I probably won't make any templates or plans available because making one of these involves some very tight tolerances between many moving parts.
The rest of you simply get to look forward to being shot with it.


  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#2 imaseoulman

imaseoulman

    Member

  • Members
  • 1,005 posts
  • Location:DFW
  • State:Texas
  • Country:United States

Posted 14 January 2009 - 02:32 PM

Wow, Slug! Just WOW! You've really outdone yourself. The tandem trigger is just...phenomenal. And the whole package is just so compact. How much front weight does it add to the blaster? I guess with your hand resting on the pump grip it shouldn't feel unbalanced at all.

NICE WORK! I hope I get a chance to see this at DCNO (crossing fingers in hopes that I can make it this year).
  • 0

#3 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,761 posts

Posted 14 January 2009 - 02:35 PM

It weighs in at a meager 1lb 4oz.
  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#4 NerfDude1138

NerfDude1138

    Member

  • Members
  • 114 posts
  • Location:New England

Posted 14 January 2009 - 02:51 PM

Fuck'n A man! What the hell do you do for a living?

That's da shit right there.

Edited by NerfDude1138, 14 January 2009 - 03:02 PM.

  • 0
Check out all my mods on FU.

Foam Universe
We are a friendly and rapidly growing Nerfing community.

#5 Groove

Groove

    Certified Badass

  • Founders
  • 1,673 posts
  • Fucks Given:0
  • Location:Irvine
  • State:California
  • Country:United States

Posted 14 January 2009 - 03:15 PM

I can only use one word to describe this: FUCK.


-Groove
  • 0

"Too close for missiles, I'm switchin' to guns"


#6 Gearmonkey

Gearmonkey

    Member

  • Members
  • 11 posts
  • Location:Long Island, New York

Posted 14 January 2009 - 03:27 PM

Sweet Jesus. that is rediculus. I am in complete and utter awe of that monstrosity. As if VACC need anything else to pwn n00bs with. Does the attatchment system feel secure? It seems like it could be damaged if handled roughly. Again, Mad Fucking Props.
  • 0
QUOTE
I need a loser rifle not a loser rifle, what the hell did i type loser

#7 Zaxbys

Zaxbys

    Groove's Protégé

  • Members
  • 510 posts
  • Location:Augusta, Georgia

Posted 14 January 2009 - 03:28 PM

I can only use one word to describe this: FUCK.


-Groove


I will raise you one word: DAMN.

Slug you make me want to get one of those +bows each time you show one of those cad drawings. Nice work.
  • 0
QUOTE
"Bitces be crazy"


QUOTE
"Hey girl... you like water sports?"

~Groove 6/26/09

#8 NerfDude1138

NerfDude1138

    Member

  • Members
  • 114 posts
  • Location:New England

Posted 14 January 2009 - 03:33 PM

Whatever VACC paid for this commision, it had to be worth it. Its looks badass just sitting there not doing anything. Imagine what its going to look like firing at your ass!

I hope you have some agreement with VACC that he's not allowed to shoot you with it since you made it for him.
  • 0
Check out all my mods on FU.

Foam Universe
We are a friendly and rapidly growing Nerfing community.

#9 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,761 posts

Posted 14 January 2009 - 03:40 PM

Does the attatchment system feel secure?

Yeah. Three threaded rods is plenty for holding this in place.

I hope you have some agreement with VACC that he's not allowed to shoot you with it since you made it for him.

No.
At the last DCNO he used the +Bow I made to shoot me in the face.
  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#10 The Nerf Devil

The Nerf Devil

    Member

  • Members
  • 92 posts
  • Location:Almonte,Ontario

Posted 14 January 2009 - 03:50 PM

Holy shit that is incredibly awesome CS. that is by far the sweetest weapon for the +Bow integration rails i have ever seen.
  • 0
It's funny looking through things you said years ago, you realize how much of an ass you came off as sometimes.

#11 VACC

VACC

    Vacc is Legend

  • Founders
  • 3,265 posts
  • Location:New York
  • State:New York
  • Country:United States

Posted 14 January 2009 - 03:55 PM

No.
At the last DCNO he used the +Bow I made to shoot me in the face.


......jk..... :unsure:
  • 0

#12 aetherguy881

aetherguy881

    Member

  • Members
  • 218 posts
  • Location:East Hampton, CT

Posted 14 January 2009 - 03:57 PM

Jiminy-jillikers! That's freakin' awesome! Well done.

Do you mind it we get a pict of it mounted on the +-bow?
  • 0
--Modify a blaster for a kid and he'll be entertained for a week. Teach him how to modify blasters and he'll become an engineer--
QUOTE
NERFtastic!
FOAMalicious!
DARTomatic!
--Silly emo kids, go draw yourself a picture--

#13 Norther of Heaven

Norther of Heaven

    Member

  • Members
  • 349 posts
  • Location:Athens, GA

Posted 14 January 2009 - 04:02 PM

Is it comfortable to pump?
  • 0
"I don't always drink beer. But when I do,
I beat my wife."

#14 Blacksunshine

Blacksunshine

    Member

  • Members
  • 948 posts
  • Location:WA

Posted 14 January 2009 - 04:29 PM

:unsure:

Thats beautiful. What material are those barrels? Are they acrylic/polycarb?
  • 0
Forgive my spelling and grammar. I post from my cell phone a lot. Sometimes when I'm on the can at work.

#15 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,761 posts

Posted 14 January 2009 - 04:59 PM

Posted Image

Is it comfortable to pump?

Feels the same as a stock 3K, only the grip is much wider.

What material are those barrels?

1/2" ID 5/8" OD Polyester

Edited by CaptainSlug, 14 January 2009 - 04:59 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#16 rork

rork

    Member

  • Members
  • 1,008 posts
  • Location:Sylva, NC

Posted 14 January 2009 - 05:09 PM

Slug, sometimes I think that there may be such a thing as being too badass. Not very often, mind you, but still. Damn.
  • 0
<a href="http://nerfhaven.com...howtopic=20296" target="_blank">SNAPbow Mk. V</a>
<a href="http://nerfhaven.com...howtopic=20409" target="_blank">Make it pump-action</a>

#17 Gunhaver

Gunhaver

    Member

  • Members
  • 10 posts

Posted 14 January 2009 - 07:52 PM

Congratulations to both of you on an excellent modification. Just out of curiosity are there any aesthetic plans for the blaster in the future like paint or decals? Personally I like the current lean and mean look.
  • 0

#18 Draconis

Draconis

    I am not Lord Draconical

  • Members
  • 2,712 posts
  • NerfHaven Subscription Supporter
  • Location:Salem, Oregon
  • State:Oregon
  • Country:United States
  • u/Parabolictoys on Reddit

Posted 14 January 2009 - 08:07 PM

You never cease to amaze me, 'Slug. Very impressive. I am also quite happy that I can't attend east coast wars with that.
  • 0
[15:51] <+Noodle> titties
[15:51] <+Rhadamanthys> titties
[15:51] <+jakejagan> titties
[15:51] <+Lucian> boobs
[15:51] <+Gears> titties
[15:51] <@Draconis> Titties.
[15:52] <+Noodle> why is this so hard?

#19 Norther of Heaven

Norther of Heaven

    Member

  • Members
  • 349 posts
  • Location:Athens, GA

Posted 14 January 2009 - 10:06 PM

Since there are no plans for a CAD drawing or any type of write up..

Please Sir, may we have a video?
  • 0
"I don't always drink beer. But when I do,
I beat my wife."

#20 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,761 posts

Posted 14 January 2009 - 10:18 PM

I don't have any plans to paint it since I wasn't paid to do that. It's being mailed to VACC this weekend.

Please Sir, may we have a video?

What is there to show that requires video? It's functions the same as a normal 3K.
  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#21 jwasko

jwasko

    PowerBeard

  • Moderators
  • 1,021 posts
  • Location:Pittsburgh, PA
  • State:Pennsylvania
  • Country:United States

Posted 14 January 2009 - 10:23 PM

In that case, if you haven't already boxed it, could we have a picture from straight above? Pwease?

Also, I would really appreciate it if you posted a template for just the turret spacer plate.

But, I appreciate how busy you probably are, and just the picture would be great.
  • 0

-Jwasko, STILL Sole Surviving member of Steel City Nerf and Sober Sister of the Sex Dwarves
We NERF ON all day, and FUCK OFF all night


#22 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,761 posts

Posted 14 January 2009 - 10:35 PM

Posted Image

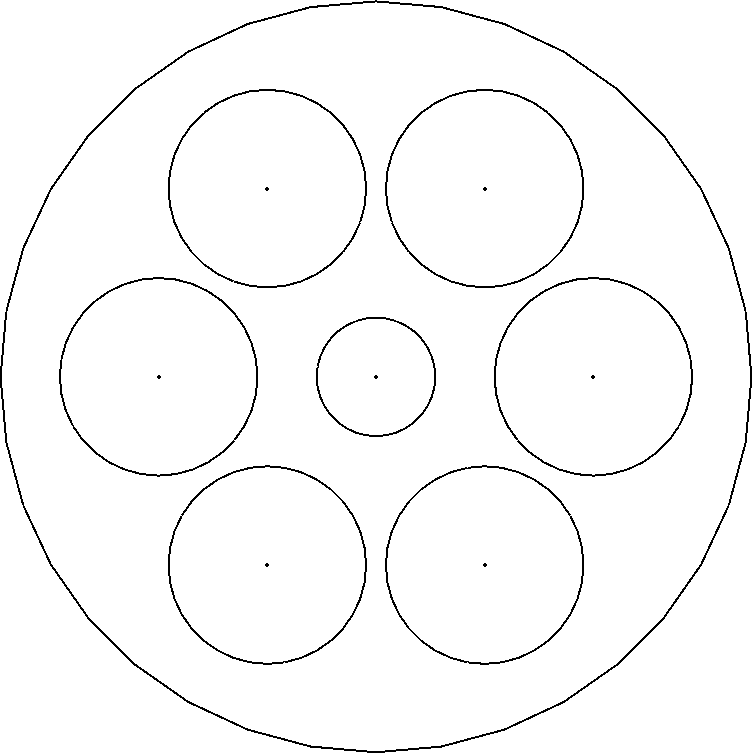

And here's a barrel spacer template. Place on a page and resize to 2.375" in width.
http://www.captainsl...f/3k_barrel.png

Drill the center 1/4" then super glue onto the stock barrel stabilizing piece. You'll obviously have to drill the barrel holes to match the OD of your barrel material.

Edited by CaptainSlug, 14 January 2009 - 10:36 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#23 TheBolt

TheBolt

    Member

  • Members
  • 43 posts
  • Location:Portland OR

Posted 14 January 2009 - 11:16 PM

Every time I look at that... thing, I find it hard to look away.

The auto-rotation still works, it keeps many of the stock parts, it's small, it's light and it's integratiable. Who or what are you!?
  • 0

#24 imaseoulman

imaseoulman

    Member

  • Members
  • 1,005 posts
  • Location:DFW
  • State:Texas
  • Country:United States

Posted 14 January 2009 - 11:46 PM

......jk..... :)

AIM speak? And an emoticon?

Who are you and what have you done with our Dear Leader?
  • 0

#25 nerfer9

nerfer9

    Member

  • Members
  • 680 posts
  • State:California
  • Country:United States

Posted 15 January 2009 - 12:38 AM

iamsoulman, I think he has entered a place, a fifth dimension beyond that which is known to man. It is a dimension as vast as space and as timeless as infinity. It is the middle ground between light and shadow, between science and superstition, and it lies between the pit of man's fears and the summit of his knowledge. This is the dimension of imagination. It is an area which we call "The Twilight Zone". Or he is not feeling himself tonight.

On topic: I really, really, really like that. Maybe you should make one for something like a lnl or a nf. Or make an attachment for a camera or something to see war footage. I don't know, I am just brainstorming.
  • 0
