A New, Easy, Valve


23 replies to this topic

#1 King Of Butt Land

King Of Butt Land

    Member

  • Banned
  • 324 posts

Posted 02 July 2008 - 03:55 PM

No, I didn't make it. Anyway, some of you may have seen this, its quite ingenious and I plan to scale it up soon for nerf use.

http://www.instructa...-Release-Valve/
QUOTE(Puppy-§layer @ Dec 18 2008, 04:22 AM) View Post

This contest may have some flaws, as people can simply be a deuschbag over the internet. By Lying.

A war-like setting/invitational would be better...


#2 analogkid

analogkid

    Member

  • Members
  • 425 posts
  • Location:12304
  • State:New York
  • Country:United States

Posted 02 July 2008 - 06:42 PM

Cool, this gives me some ideas. If you could somehow do the same thing with PVC fittings you might have a cheap alternative to solenoids, which didn't work well for me. In fact, I think, I know what I'm doing tomorrow. I'll update if I come up with anything.
  • 0

#3 King Of Butt Land

King Of Butt Land

    Member

  • Banned
  • 324 posts

Posted 02 July 2008 - 07:25 PM

PVC would most likely not work due to the fact that the sizes do not naturally nest in each other. Bras is a must.
QUOTE(Puppy-§layer @ Dec 18 2008, 04:22 AM) View Post

This contest may have some flaws, as people can simply be a deuschbag over the internet. By Lying.

A war-like setting/invitational would be better...


#4 analogkid

analogkid

    Member

  • Members
  • 425 posts
  • Location:12304
  • State:New York
  • Country:United States

Posted 02 July 2008 - 07:36 PM

Fair enough, I'll grab some of that too. Somehow or another its going to have to mate with ŠPVC if that's what you use for barrels though. I'll figure something out tonight or tomorrow.
EDIT: Just found out, a blowgun, like the kind you attach to a compressor, has pretty much the exact same mechanism as the valve in the video.

Edited by analogkid, 03 July 2008 - 09:45 AM.

  • 0

#5 Raj Man

Raj Man

    Member

  • Members
  • 70 posts

Posted 03 July 2008 - 11:20 AM

hehehe. The video is pretty funny. This valve looks like it will be the valve of choice for people looking to make homemade valves for cheap. Everything is pretty easy to get apart from the brass, but that could probably be replaced with aluminum if brass is not available. Also, it might be difficult to make this valve large enough for nerf use simply because of its design.
  • 0
"Asshats are people who get stupider every post/minute/hour/day. See, they have an ass for a hat, so every 24 hrs. their brain is replaced with more shit. That's at least how I took the definition of "asshat" to be."

-GeneralPrimeevil

#6 Uncle Hammer

Uncle Hammer

    Member

  • Members
  • 750 posts
  • Location:Austin,TX 78758

Posted 03 July 2008 - 12:27 PM

Isn't that pretty much the valve used in nerf guns?
  • 0
Don't mess with Texas cuz its bigger than France, bitch..
QUOTE (Talio)
Catagory 5 hurricanes are the mighty dick of God.  You don't mess with that!  You don't mess with Gods dick!

#7 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,761 posts

Posted 03 July 2008 - 12:32 PM

Isn't that pretty much the valve used in nerf guns?

Yes. This type of valve is also know as a sleeve valve. Pipe standard sleeve valves are pretty heavy and can be kind of expensive, but their flow rate and low mechanical resistance are unmatched.

I was designing a really cheap one a while ago but I've been too busy to look into it further.

And you can use pipe, you just have to be very precise in which O-Ring size you select in order to get a good seal while still minimizing friction.

Edited by CaptainSlug, 03 July 2008 - 12:33 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#8 jwasko

jwasko

    PowerBeard

  • Moderators
  • 1,021 posts
  • Location:Pittsburgh, PA
  • State:Pennsylvania
  • Country:United States

Posted 04 July 2008 - 12:19 AM

Is brass tubing, in the thickness that we usually use for barrels (1/64" or 1/32"...I can't remember) tough enough to withstand the amount of pressure we need to launch a dart?

My instinct says no, but I'm hoping for a yes...
  • 0

-Jwasko, STILL Sole Surviving member of Steel City Nerf and Sober Sister of the Sex Dwarves
We NERF ON all day, and FUCK OFF all night


#9 Thom

Thom

    Member

  • Members
  • 759 posts
  • Location:SUNY Buffalo

Posted 04 July 2008 - 12:56 AM

Now I wish I were working on an air gun. I'm tempted to actually build the Nerf football mortar I've been envisioning.

Tower Hobbies has brass tubing down to 1/16", which I'm sure is more than small enough. I'd guess that even thin brass would hold the <200psi that we use.

This seems like it would be reasonably easy to adapt to Nerf use. Connect the air tank to your barrel with 1/8" OD tubing and use 3/32" OD for the moving part. I'm sure that something could be found to plug the end, and o-rings and springs aren't a problem.

CS, would this perform better than a modded sprinkler valve? It certainly seems that it would be cheaper, if it were made in quantity. (Given than Tower Hobbies sells the brass 15 feet at a time, it would be inefficient for a one-off.)

EDIT: Ooh, save five bucks by going aluminium. Probably be stronger, too.

Edited by Thom, 04 July 2008 - 01:01 AM.

  • 0

#10 King Of Butt Land

King Of Butt Land

    Member

  • Banned
  • 324 posts

Posted 04 July 2008 - 12:16 PM

I've taking brass tubing up to 400 psi before with no problems, but if you do the same and it kills you, I'm not responsible.
QUOTE(Puppy-§layer @ Dec 18 2008, 04:22 AM) View Post

This contest may have some flaws, as people can simply be a deuschbag over the internet. By Lying.

A war-like setting/invitational would be better...


#11 oodalumps

oodalumps

    Member

  • Members
  • 219 posts

Posted 05 July 2008 - 06:35 PM

I decided to make a large scale one of these with some spare brass and PVC I had laying around. Uses 2" PVC and two different sizes of brass (I think 1/2" and 17/32"). To make a good seal (and to stop it from leaving the tank), I wrapped electrical tape around the back of the moving piece of brass. I plugged the back of the moving piece of brass with the top of a goo gauge.

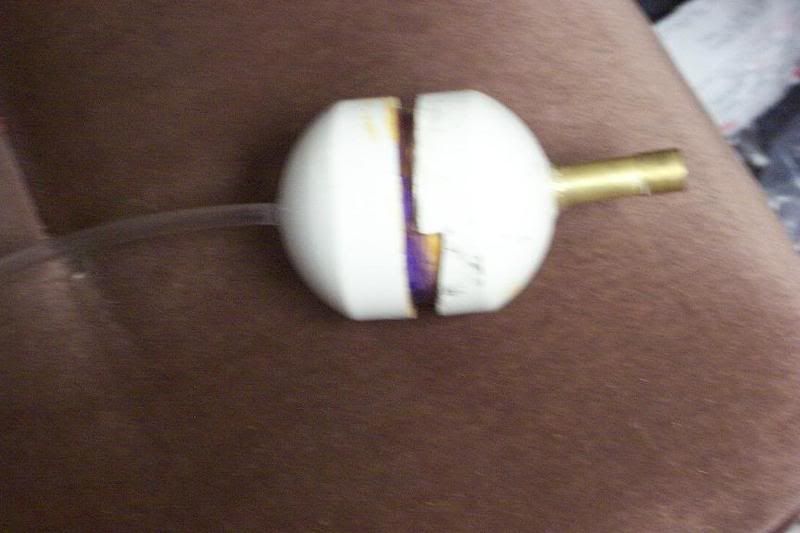

Finished air tank (now connected to an at2k pump)

Posted Image

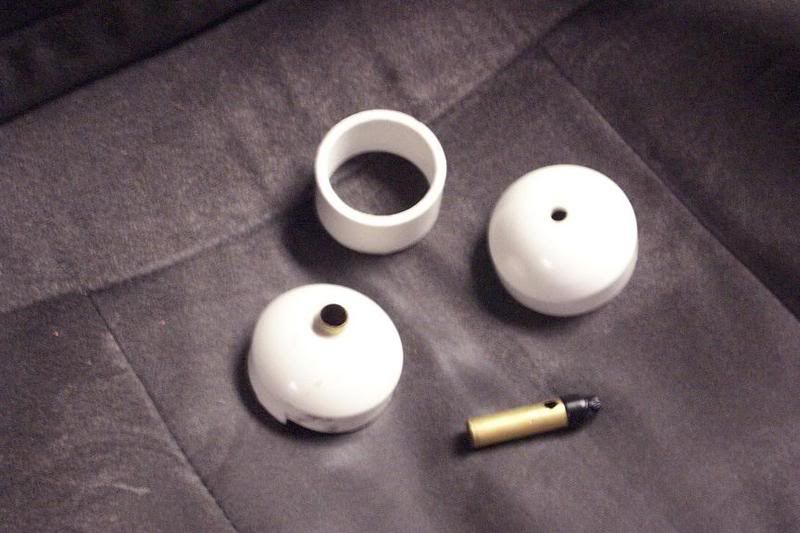

Pieces

Posted Image

The moving piece of brass

Posted Image
  • 0

#12 Kid Flash

Kid Flash

    Member

  • Members
  • 1,985 posts
  • Location:Amelia, Ohio

Posted 05 July 2008 - 08:08 PM

So whats the psis that you have tested so far? 2 inch pvc is kind of large for me though... I might be trying 3/4 inch just for fun. It would be nice if I could find brass.
  • 0

#13 CaptainSlug

CaptainSlug

    Resident Mad Scientist

  • Administrators
  • 4,761 posts

Posted 06 July 2008 - 03:11 PM

The pressure you need to fire a dart is very low. You can fire at as low as 10psi if the flow rate and supply volume are high enough. Even the weakest vinyl tubing sizes available are not going to burst at pressure levels that are likely to destroy darts. If you're trying to fire darts at pressure levels higher than 50psi, you're doing something wrong.

Most metallic tubing is rated for more than 150psi.

Edited by CaptainSlug, 06 July 2008 - 03:11 PM.

  • 0
The little critters of nature, they don't know that they're ugly. That's very funny, a fly marrying a bumble bee. I told you I'd shoot, but you didn't believe me. Why didn't you believe me?

#14 pizlo

pizlo

    Member

  • Members
  • 59 posts

Posted 08 July 2008 - 12:59 PM

Its a new valve to nerf, yes. And its a good way to make one, but its just a manually operated hammer valve.
  • 0

#15 Shadow 92

Shadow 92

    Member

  • Members
  • 193 posts

Posted 08 July 2008 - 01:18 PM

The flow rate seems low and it looks like it wastes some space. It can be scaled up to nerf proporions, but it wouldn't be the most efficeint design. Great find though!

Edited by Shadow 92, 08 July 2008 - 01:19 PM.

  • 0

#16 Uncle Hammer

Uncle Hammer

    Member

  • Members
  • 750 posts
  • Location:Austin,TX 78758

Posted 08 July 2008 - 01:54 PM

It already has been scaled to nerf. It's the exact same valve found in air guns.
  • 0
Don't mess with Texas cuz its bigger than France, bitch..
QUOTE (Talio)
Catagory 5 hurricanes are the mighty dick of God.  You don't mess with that!  You don't mess with Gods dick!

#17 oodalumps

oodalumps

    Member

  • Members
  • 219 posts

Posted 08 July 2008 - 06:32 PM

You guys talk like I just didn't just make a Nerf scale version of this valve. While it lasted, it got Big Blast ranges. Just needed to super glue the electrical tape and it would have lasted forever.
  • 0

#18 King Of Butt Land

King Of Butt Land

    Member

  • Banned
  • 324 posts

Posted 08 July 2008 - 06:44 PM

It is not the same valve found in nerf guns. I recently made a tiny one for airsoft bb's and its great, I don't really have any interest in nerf at the moment though, so I have no plans to upscale it.
QUOTE(Puppy-§layer @ Dec 18 2008, 04:22 AM) View Post

This contest may have some flaws, as people can simply be a deuschbag over the internet. By Lying.

A war-like setting/invitational would be better...


#19 3DBBQ

3DBBQ

    Member

  • Members
  • 214 posts
  • Location:TAIWAN

Posted 16 July 2008 - 04:22 AM

cooooool!!

i love ths!! great~
  • 0

#20 Vishamon

Vishamon

    Member

  • Members
  • 78 posts
  • Location:Ann Arbor, MI

Posted 18 July 2008 - 11:29 PM

cooooool!!

i love ths!! great~

This bodes well. Can't wait to see what you do with this valve!
  • 0
QUOTE(VACC @ Dec 8 2009, 08:40 AM) View Post

I think everyone who reads or contributes to this site needs to take a big stap back and reallize we're discussing nerf guns. The fate of absolutely NOTHING important depends on what you, me, or anyone else does


#21 Lynx

Lynx

    Member

  • Members
  • 983 posts
  • Location:Columbus, Ohio
  • State:Ohio
  • Country:United States

Posted 19 July 2008 - 01:59 AM

It is a nice valve that works well.

Scale it up, put a good trigger ring around it and you have a fire control group ready to go for a homemade.

EDIT: Sorry, I just got off of WarCraft 3 so I can only assume the worst after that...

Edited by Lynx, 19 July 2008 - 04:55 PM.

  • 0
Columbus' original crazy asshole now comes with:

AWESOME NITEFINDER

#22 zaphodB

zaphodB

    Member

  • Members
  • 369 posts
  • Location:Indianapolis, IN

Posted 19 July 2008 - 04:05 PM

lynx- what? he didn't say anything offensive about his english. He's just excited about what 3DBBQ will do with the valve.
  • 0
Alice came to the fork in the road.
"Which road do I take?" she asked.
"Where do you want to go?" responded the Cheshire cat.
"I don't know," Alice answered.
"Then," said the cat, "it doesn't matter."

#23 Carbon

Carbon

    Contriberator

  • Moderators
  • 1,893 posts
  • Location:Milwaukee, WI
  • State:Wisconsin
  • Country:United States

Posted 19 July 2008 - 04:08 PM

EDIT: Excluded.

Well, changed. I didn't want to muck up the formatting, and this amused me.

cooooool!!

i love ths!! great~

This bodes well. Can't wait to see what you do with this valve!

I like turtles!

I'm pretty sure that Vishamon's comment does not mean what you seem to think it means.

Edited by Carbon, 20 July 2008 - 09:52 PM.

  • 0
Hello. I am Indigo of the Rainbow Clan. You Nerfed my father. Prepare to die.

#24 Vishamon

Vishamon

    Member

  • Members
  • 78 posts
  • Location:Ann Arbor, MI

Posted 19 July 2008 - 10:47 PM

On top of it, I'm fairly certain that 3DBBQ's primary language is, in fact, Mandarin.
EDIT: In response to Lynx's edit: I'd appreciate it if Carbon would edit his post to exclude what Lynx said. I'd rather not have any problems with anyone on these forums. And yes, just to clarify, I am interested to see what genius applications of this new home made valve type come from the JSPB workshop.

Edited by Vishamon, 19 July 2008 - 10:52 PM.

  • 0
QUOTE(VACC @ Dec 8 2009, 08:40 AM) View Post

I think everyone who reads or contributes to this site needs to take a big stap back and reallize we're discussing nerf guns. The fate of absolutely NOTHING important depends on what you, me, or anyone else does
